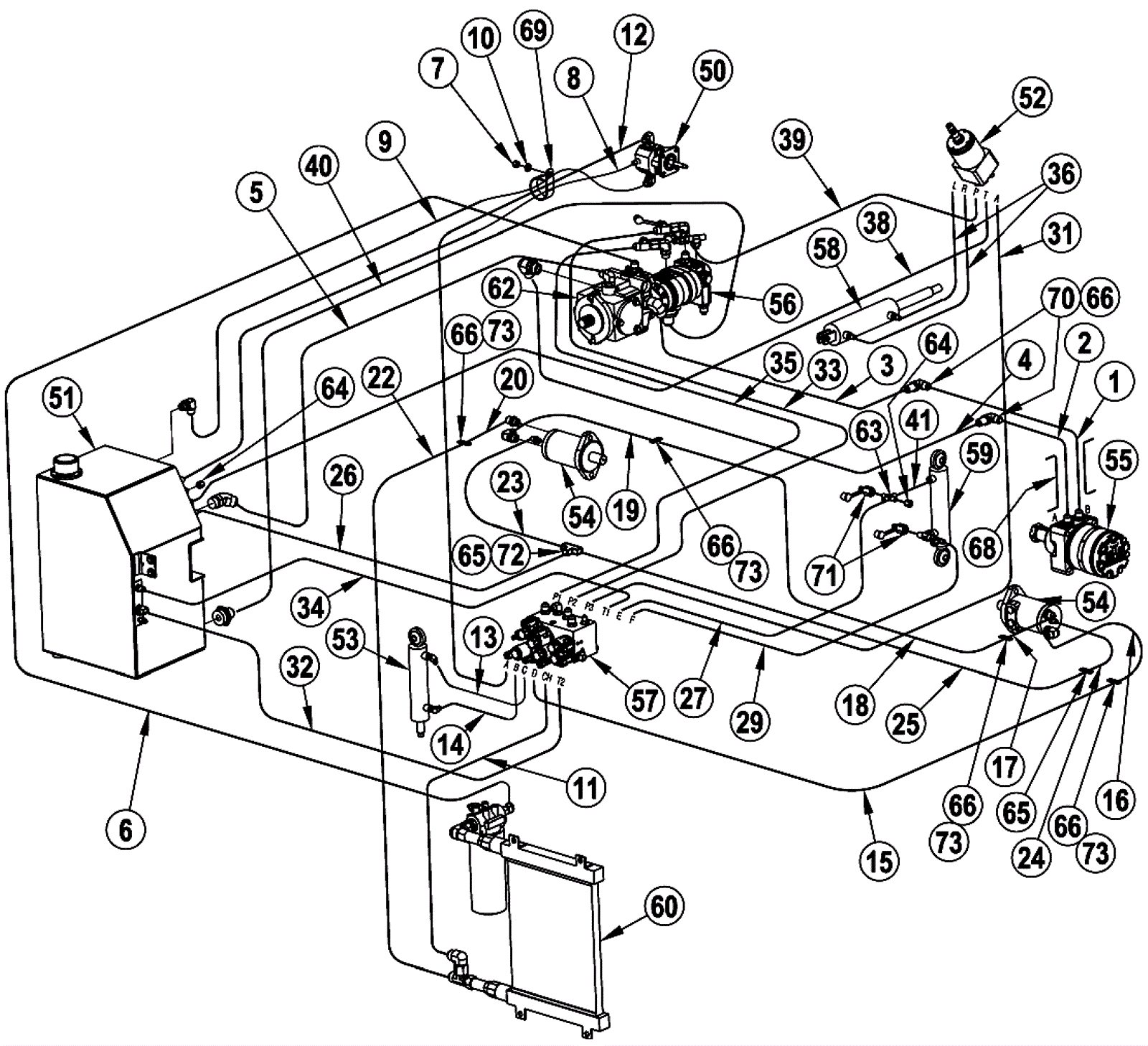

CONDOR XL Hydraulic Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-7888 Hose assembly $37.36 1 ships same day
2 272-7889 Hose assembly $93.17 1 usually ships 1-5 days
3 272-7890 Hose assembly $106.34 1 usually ships 1-5 days
4 272-7891 Hose assembly $103.32 1 usually ships 1-5 days
5 272-7892 Hose assembly $109.53 1 usually ships 1-5 days
6 272-6467 Hose assembly $83.80 1 usually ships 1-5 days
7 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
8 272-7894 Hose assembly $88.46 1 usually ships 1-5 days
9 272-7895 Hose assembly $127.40 1 usually ships 1-5 days
10 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
11 272-7896 Hose assembly $128.91 1 usually ships 1-5 days
12 272-7897 Hose assembly $101.65 1 usually ships 1-5 days
13 272-7898 Hose assembly $59.84 1 usually ships 1-5 days
14 272-7899 Hose assembly $58.17 1 usually ships 1-5 days
15 272-7900 Hose assembly $112.55 1 usually ships 1-5 days
16 272-7901 Hose assembly $82.28 1 usually ships 1-5 days
17 272-7902 Hose assembly $79.22 1 usually ships 1-5 days
18 272-7903 Hose assembly $120.29 1 usually ships 1-5 days
19 272-7904 Hose assembly $88.46 1 usually ships 1-5 days
20 272-7905 Hose assembly $77.69 1 usually ships 1-5 days
22 272-7906 Hose assembly $184.81 1 usually ships 1-5 days
23 272-7907 Hose assembly $79.22 1 usually ships 1-5 days
24 272-7908 Hose assembly $67.56 1 usually ships 1-5 days
25 272-7909 Hose assembly $67.56 1 usually ships 1-5 days
26 272-7910 Hose assembly $72.26 1 usually ships 1-5 days
27 272-7911 Hose assembly $59.84 1 usually ships 1-5 days
29 272-7912 Hose assembly $90.13 1 usually ships 1-5 days
31 272-7913 Hydraulic hose assembly 3/8 x 109 inch $154.53 1 usually ships 1-5 days
32 272-7914 Hose assembly $64.38 1 usually ships 1-5 days
33 272-7915 Hydraulic hose assembly 1/2 x 45 inch $93.17 1 usually ships 1-5 days
34 272-7916 Hose assembly $62.89 1 usually ships 1-5 days
35 272-7917 Hydraulic hose assembly 3/8 x 45 inch $106.34 1 usually ships 1-5 days
36 272-7918 Hose assembly $76.04 1 usually ships 1-5 days
38 272-7919 Hose assembly $83.92 1 usually ships 1-5 days
39 272-7920 Hose assembly $91.65 1 usually ships 1-5 days
40 272-7921 Hose assembly $273.28 2 usually ships 1-5 days
41 272-7922 Hose assembly $41.97 1 usually ships 1-5 days
51 N/A Not available Call for price 1 (Reservoir Assembly)(see Hydraulic Oil Cooler/Reservoir) usually ships 3-26 days
55 N/A Not available Call for price 1 (Drive Motor Assembly)(see Hydraulic Motor Assembly) usually ships 3-26 days
63 272-7923 Union cross $43.48 1 usually ships 1-5 days
64 272-7924 Flare tube end cap $11.35 2 usually ships 1-5 days
65 272-3137 Bulkhead locknut $12.89 2 usually ships 1-5 days
66 272-3138 Bulkhead locknut $12.89 6 usually ships 1-5 days
68 272-7925 Nylon sleeve $115.74 1 usually ships 1-5 days
69 272-2110 P clamp $5.50 1 usually ships 1-5 days
70 272-3149 Union #8 elbow $32.56 2 usually ships 1-5 days
71 272-7926 Test nipple $53.61 2 usually ships 1-5 days
72 272-7927 Bulkhead run tee (OBSOLETE) $86.98 1 usually ships 1-5 days
73 272-7928 Washer 3/4 shakeproof $12.89 4 usually ships 1-5 days
