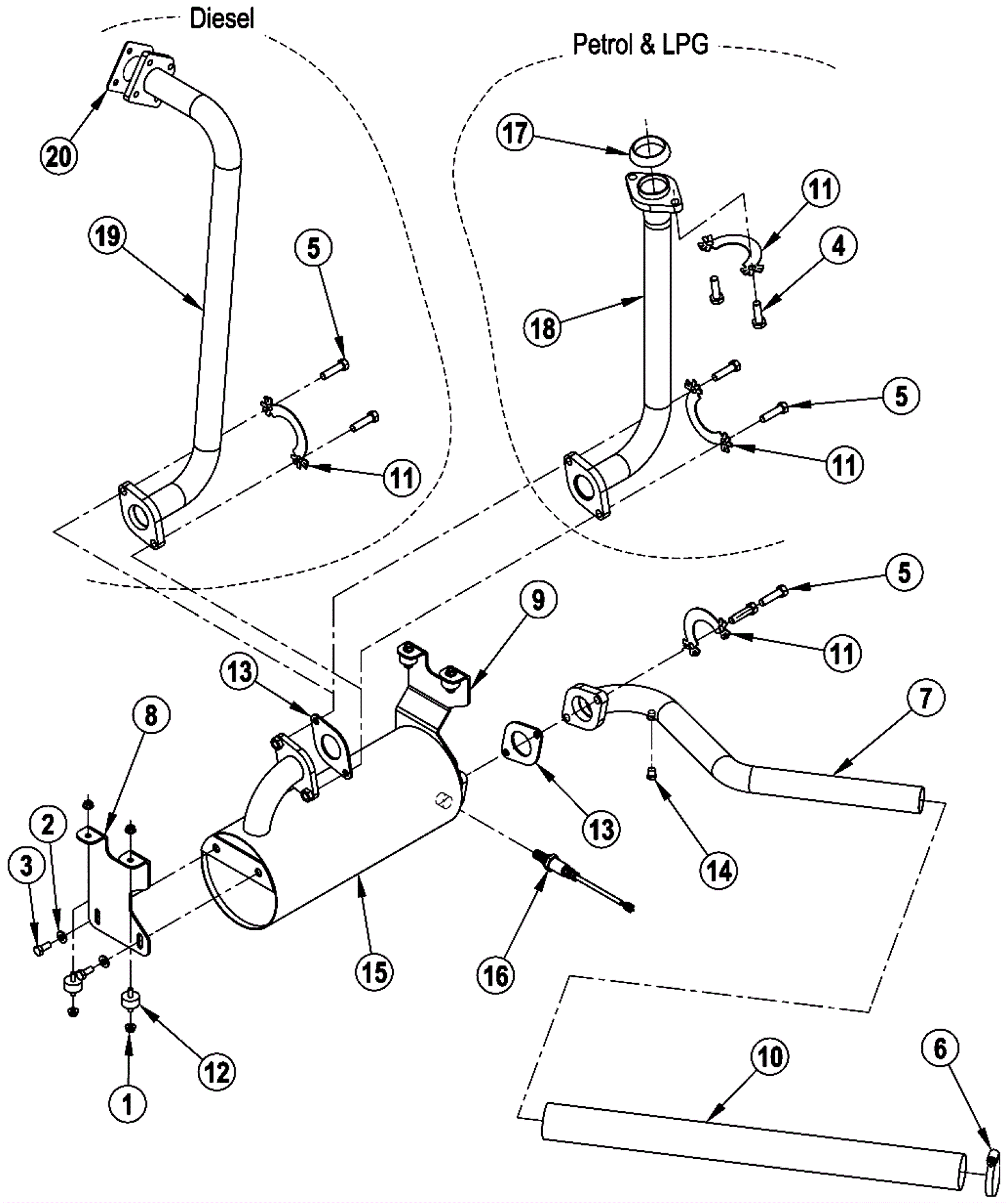

Exhaust/Muffler Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
2 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
3 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 4 ships same day
4 999-0246 Bolt M10-1.5 x 35mm hex head full thread $1.28 2 (Petrol and LPG only) ships same day
5 999-1473 Screw 3/8-24 x 1 1/2 hex head stainless steel $6.31 4 usually ships 1-5 days
6 181-0636 Hose clamp $10.90 1 usually ships 1-5 days
7 272-7845 LP/Petrol tailpipe weldment $339.39 1 usually ships 1-5 days
8 272-7846 Muffler bracket $35.48 1 usually ships 1-5 days
9 272-7847 Muffler bracket $60.79 1 usually ships 1-5 days
10 272-7848 Insulation sleeve $244.24 1 usually ships 1-5 days
11 272-7849 Lock $12.18 3 (quantity of 2 on Diesel models) usually ships 1-5 days
12 272-7850 Silicone stud mount $24.47 4 usually ships 1-5 days
13 272-7851 Exhaust gasket $12.18 2 usually ships 1-5 days
14 272-7852 1/8 NPT plug $10.90 1 usually ships 1-5 days
15a 272-6421 Catalytic converter $3,704.40 1 (Petrol and LPG) (IMPCO engines only) usually ships 1-5 days
15b 272-6445 Catalytic converter $2,011.10 1 (Petrol and LPG) (PSI engines only) usually ships 1-5 days
15c 272-7853 Muffler $1,260.86 1 (Diesel only) usually ships 1-5 days
16a 272-6407 O2 sensor $264.47 1 (Post-Catcon) (IMPCO engines only) usually ships 1-5 days
16b 272-6406 O2 sensor $244.24 1 (Post-Catcon) (PSI engines only) usually ships 1-5 days
17 272-7265 Exhaust gasket $127.94 1 usually ships 1-5 days
18 272-6422 Exhaust pipe weldment $609.50 1 usually ships 1-5 days
19 272-7854 Exhaust tube weldment $278.30 1 (Diesel only) usually ships 1-5 days
20 272-7821 Exhaust gasket $55.83 1 usually ships 1-5 days
