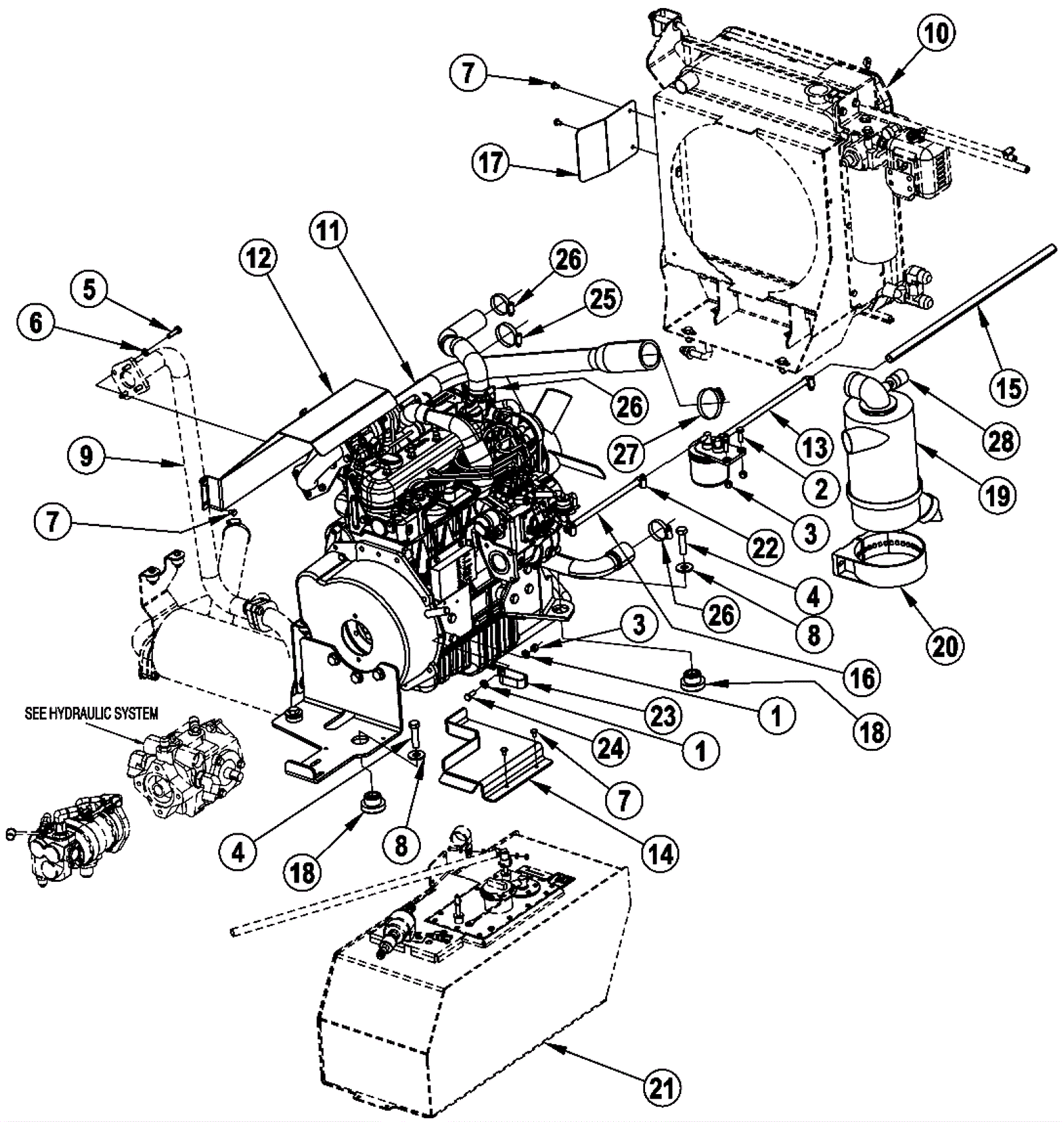

CONDOR XL Engine Assembly - Diesel

#PartDescriptionPriceReqNotesAvailability
1 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
2 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
4 999-0261 Bolt 1/2-13 x 2 hex head grade 5 $1.58 4 ships same day
5 172-4427 Bolt M8-1-1/4 x 30mm hex $10.90 4 usually ships 1-5 days
6 999-1885 Washer M8 nord lock $5.52 4 ships same day
8 172-4569 Washer 19/32 x 1 3/8 x 1/8 flat hardened $10.90 4 usually ships 1-5 days
9 272-6456 Diesel muffler assembly $2,372.12 1 (see Exhaust Catcon/Muffler Assembly) usually ships 1-5 days
10 272-6457 Radiator assembly $1,700.00 1 (see Radiator Assembly) usually ships 1-5 days
11 272-7800 Diesel engine assembly $27,107.88 1 usually ships 1-5 days
12 272-7801 Heat shield $156.25 1 usually ships 1-5 days
13 272-7802 Fuel hose $118.98 1 usually ships 1-5 days
14 272-7767 Guard plate $183.15 1 usually ships 1-5 days
15 272-6458 Conduit hose $18.62 1 usually ships 1-5 days
16 272-7804 Fuel hose $26.32 1 usually ships 1-5 days
17 272-7998 Shield plate $16.27 1 usually ships 1-5 days
18 172-9852 Isolator mount $45.33 4 usually ships 1-5 days
19a 272-3270 Air cleaner $393.17 1 usually ships 1-5 days
19b 272-3272 Safety element $36.77 usually ships 1-5 days
19c 272-3271 Primary element $34.19 ships same day
20 272-3273 Band assembly $45.33 1 usually ships 1-5 days
21 472-4190 TANK DIESEL ASSY EU $2,643.14 1 (see Fuel Tank Assembly (Diesel)) usually ships 16-41 days
22 997-2001 Hose clamp $2.42 4 ships same day
23 272-7769 3/4 inch double wire clamp $10.90 1 usually ships 1-5 days
24 181-0983 Screw 5/16-18 x 7/8 hex head $10.90 1 usually ships 1-5 days
25 172-8493 #24 hose clamp SAE $9.60 1 usually ships 1-5 days
26 272-7768 Hose clamp $10.90 4 usually ships 1-5 days
27 272-9976 #32 hose clamp SAE $9.60 1 ships same day
28 272-3288 Service indicator $106.29 1 usually ships 16-41 days
N/S 272-7800 Diesel engine assembly $27,107.88 1 usually ships 1-5 days
N/S 272-7751 105amp alternator $441.08 1 usually ships 1-5 days
N/S 272-7808 Fuel filter cartridge $16.27 1 usually ships 1-5 days
N/S 272-7809 Oil filter cartridge $23.05 1 usually ships 16-41 days
N/S 272-7759 V-belt $58.40 1 usually ships 1-5 days
N/S 272-3298 Engine cooling fan $169.96 1 usually ships 1-5 days
N/S 272-7747 Fan belt $69.56 1 usually ships 1-5 days
N/S 272-7810 Thermostat $122.06 1 usually ships 1-5 days
N/S 272-7811 Thermostat gasket $64.29 1 usually ships 1-5 days
N/S 272-7812 Starter motor $1,491.27 1 usually ships 1-5 days
N/S 272-7813 Oil pressure switch $257.94 1 usually ships 16-41 days
N/S 272-7814 Temperature switch $149.70 1 usually ships 16-41 days
N/S 272-7815 Throttle shut down actuator $1,423.63 1 usually ships 1-5 days
N/S 272-7816 Governor controller $2,101.01 1 usually ships 1-5 days
N/S 272-7817 Speed sensor $400.34 1 usually ships 1-5 days
N/S 272-7752 Radiator hose $169.96 1 usually ships 1-5 days
N/S 272-7753 Oil drain assembly $105.02 1 usually ships 1-5 days
N/S 272-7818 Electronic fuel pump $284.84 1 usually ships 1-5 days
N/S 272-7808 Fuel filter cartridge $16.27 1 usually ships 1-5 days
N/S 272-3327 Strainer $38.04 1 usually ships 1-5 days
N/S 272-7819 Drive plate $149.70 1 usually ships 1-5 days
N/S 272-7820 Air intake hose $115.52 1 usually ships 1-5 days
N/S 272-7754 Lower radiator hose $131.91 1 usually ships 1-5 days
N/S 272-7821 Exhaust gasket $55.83 1 usually ships 1-5 days
N/S 272-6459 50/50 anti-freeze $46.62 1 (2 gallon) usually ships 16-41 days
N/S 272-6460 10W30 oil $15.94 1 (5.5 quart) usually ships 1-5 days
