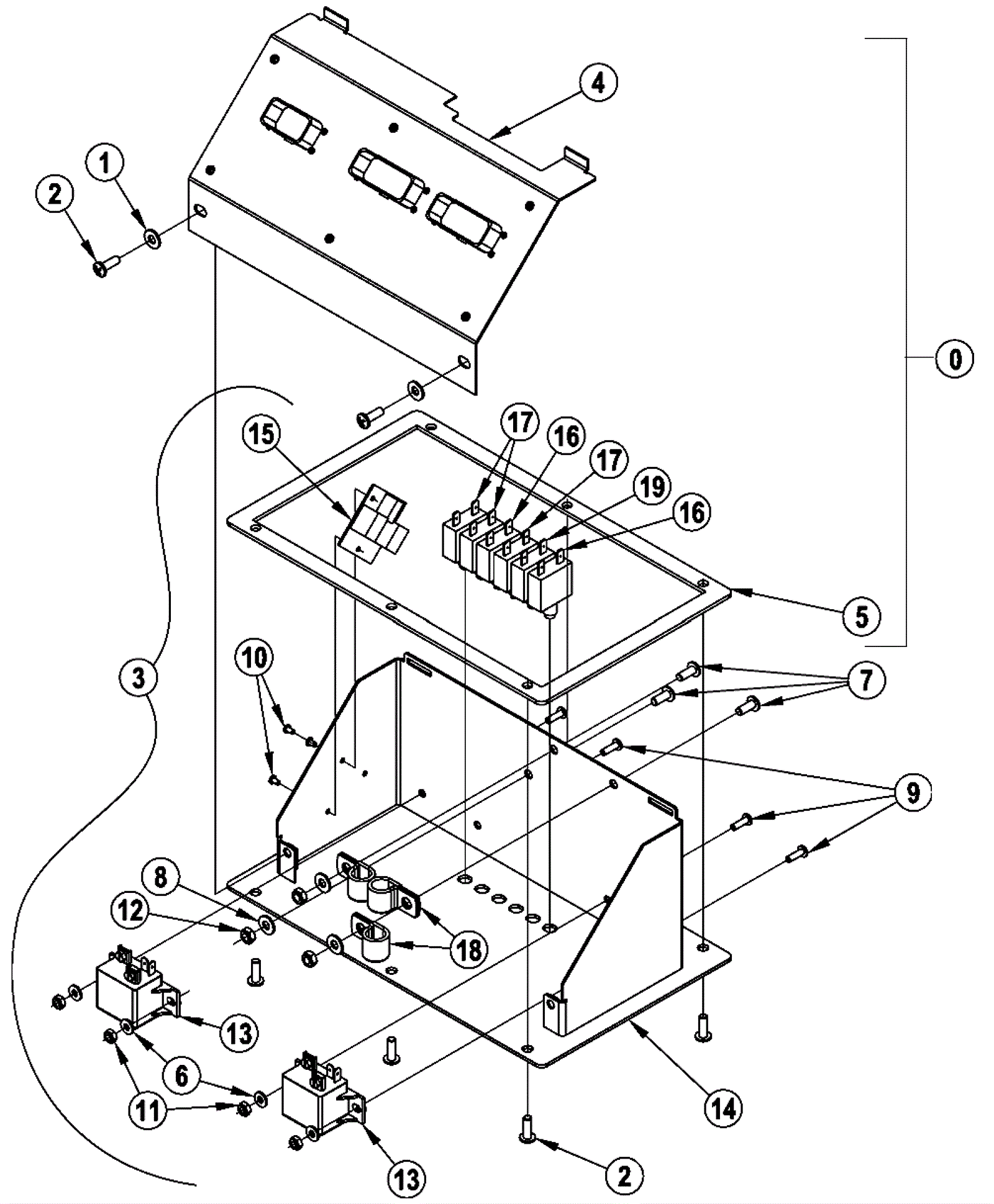

CONDOR XL Electrical Assembly - Control Board

#PartDescriptionPriceReqNotesAvailability
0a 272-6391 Control board box assembly (OBSOLETE) $2,344.10 1 (Gasoline/LPG only)(includes 1-5) usually ships 1-5 days
0b 272-6392 Diesel control board box assembly (OBSOLETE) $1,907.40 1 (Diesel only)(includes 1-5) usually ships 1-5 days
1 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
2 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel $1.76 8 ships same day
3a 272-7721 Control board relay assembly $1,010.60 1 (Gasoline/LPG only)(includes 6-19) usually ships 1-5 days
3b 272-7722 Diesel control board relay assembly (OBSOLETE) Call for price 1 (Diesel only)(includes 6-19) usually ships 1-5 days
4 272-6394 Control board cover assembly $1,896.91 1 usually ships 1-5 days
5 272-7724 Control box gasket $12.31 1 usually ships 1-5 days
6 999-1862 Washer #10 flat SAE stainless steel $0.99 2 (quantity of 4 on Diesel models) ships same day
7 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 3 ships same day
8 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
9 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 2 (quantity of 4 on Diesel models) ships same day
10 999-0418 Screw 6-32 x 1/4 pan head slotted zinc plated $0.99 3 ships same day
11 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 (quantity of 4 on Diesel models) ships same day
12 999-0190 Nut 1/4-20 hex plain finish $0.99 3 ships same day
13 272-7725 12V 75amp relay $86.09 1 (quantity of 2 on Diesel models) usually ships 17-28 days
14 272-7726 Control board weldment $212.17 1 usually ships 1-5 days
15 172-0826 Relay assembly $199.52 1 usually ships 1-5 days
16 272-9755 15amp circuit breaker $15.48 2 usually ships 17-28 days
17 272-7727 20amp circuit breaker $29.23 3 ships same day
18 272-3351 P clamp $12.31 3 usually ships 1-5 days
19 272-9374 10amp circuit breaker $24.60 1 usually ships 17-28 days
