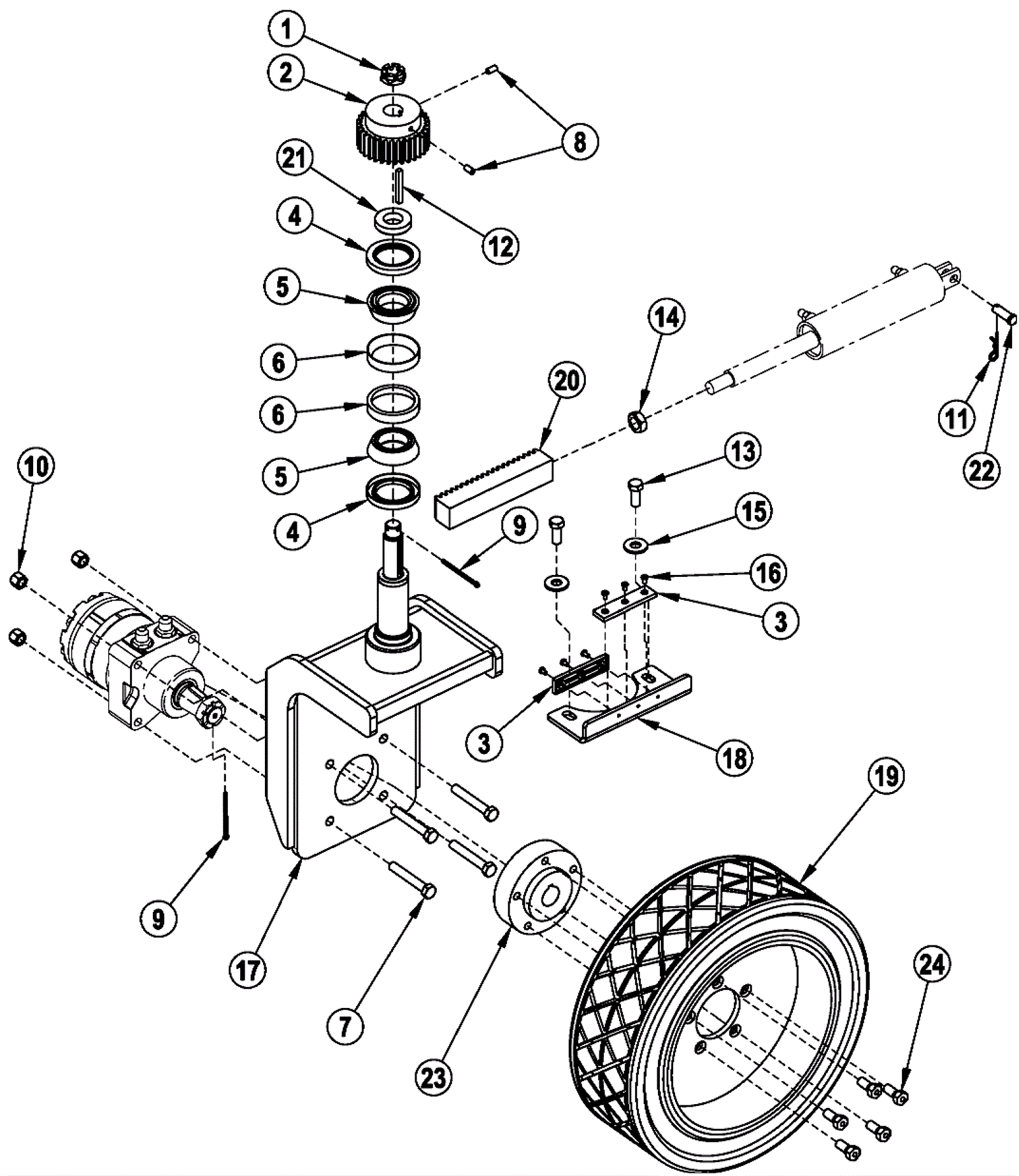

CONDOR XL Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-1603 Nut 7/8-14 castle $45.33 1 usually ships 1-5 days
2 272-2990 Spur gear $745.63 1 usually ships 1-5 days
3 272-2994 Wear plate $12.18 2 usually ships 1-5 days
4 272-2987 Shaft seal $103.10 2 usually ships 1-5 days
5 272-2986 Cone bearing $145.10 2 usually ships 1-5 days
6 272-2985 Cup bearing $93.25 2 usually ships 1-5 days
7 999-0930 Bolt 1/2-13 x 3 1/4 hex cap grade 8 plain finish $2.79 4 usually ships 1-5 days
8 181-0079 Screw 5/16-18 x 5/8 socket set lock $4.78 2 usually ships 16-41 days
9 172-4328 Cotter pin $9.60 2 usually ships 1-5 days
10 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 4 ships same day
11 272-9987 Cotter pin $8.30 1 usually ships 1-5 days
12 172-2588 Key $4.78 1 usually ships 1-5 days
13 999-1883 Screw 1/2-20 x 1 1/4 hex $5.02 2 usually ships 1-5 days
14 272-1464 Nut 3/4-16 hex nylon lock $9.60 1 usually ships 16-41 days
15 172-4569 Washer 19/32 x 1 3/8 x 1/8 flat hardened $10.90 2 usually ships 1-5 days
16 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel $0.99 6 ships same day
17 272-7693 Drive wheel weldment $1,762.39 1 usually ships 1-5 days
18 272-7694 Adjuster plate $49.18 1 usually ships 1-5 days
19 272-7695 Mold-on wheel 18 x 6 $1,423.63 1 usually ships 16-41 days
20 272-7697 Rack $162.78 1 usually ships 1-5 days
21 272-2998 Gear spacer $45.33 1 usually ships 1-5 days
22 272-3002 Clevis pin $9.60 1 usually ships 1-5 days
23 272-7698 Drive wheel hub $217.20 1 usually ships 1-5 days
24 272-7699 Wheel stud $4.78 5 usually ships 1-5 days
