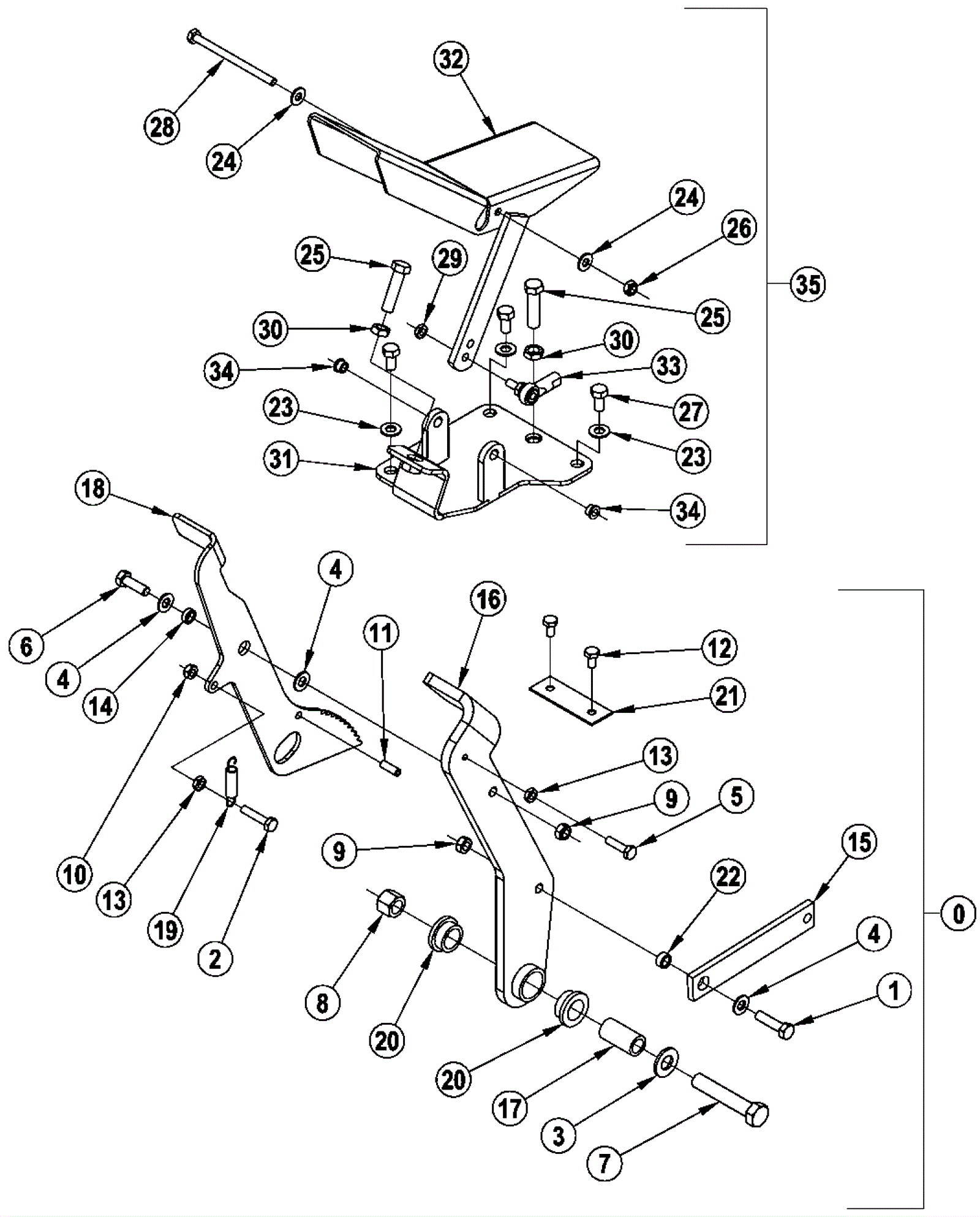

CONDOR XL Control Assembly - Brake and Foot Pedal

#PartDescriptionPriceReqNotesAvailability
0 272-7625 Brake pedal assembly $427.24 1 (includes 1-22) usually ships 1-5 days
1 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
2 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
3 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
4 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
5 999-0830 Screw 1/4-20 x 1 hex head plain finish $0.99 1 ships same day
6 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 1 ships same day
7 172-5134 Screw 1/2-13 x 2 3/4 hex $12.18 1 usually ships 1-5 days
8 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 1 ships same day
9 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
10 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
11 172-4386 Spring pin $10.90 1 usually ships 1-5 days
12 272-9677 Screw 1/4-20 x 1/2 hex head $10.90 2 usually ships 1-5 days
13 999-0971 Nut 1/4-20 jam stainless steel $0.99 2 ships same day
14 272-7647 Bushing $10.90 1 usually ships 1-5 days
15 272-7648 Brake linkage $21.77 1 usually ships 1-5 days
16 272-7649 Brake pedal weldment $127.94 1 usually ships 1-5 days
17 272-7650 Bushing $23.05 1 usually ships 1-5 days
18 272-7651 Parking brake pedal $73.51 1 usually ships 1-5 days
19 172-9056 Extension spring $10.90 1 usually ships 16-41 days
20 272-7652 Bearing $15.00 2 usually ships 1-5 days
21 272-7653 Brake lock catch $35.48 1 usually ships 1-5 days
22 172-4008 Bushing $29.59 1 usually ships 16-41 days
23 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
24 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
25 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 2 ships same day
26 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
27 272-9785 Screw 5/16-18 x 5/8 hex head lock $10.90 3 usually ships 16-41 days
28 999-0707 Bolt 1/4-20 x 3 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
29 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel $0.99 1 ships same day
30 999-0247 Nut 3/8-16 hex jam plain finish $0.99 2 ships same day
31 272-7654 Pivot weldment $85.94 1 usually ships 1-5 days
32 272-7655 Pedal weldment $74.79 1 usually ships 1-5 days
33 272-7656 Rod end $46.62 1 usually ships 16-41 days
34 172-4120 Flanged bearing $13.70 2 usually ships 1-5 days
35 272-7631 Foot pedal assembly $305.19 1 (includes 23-34) usually ships 1-5 days
