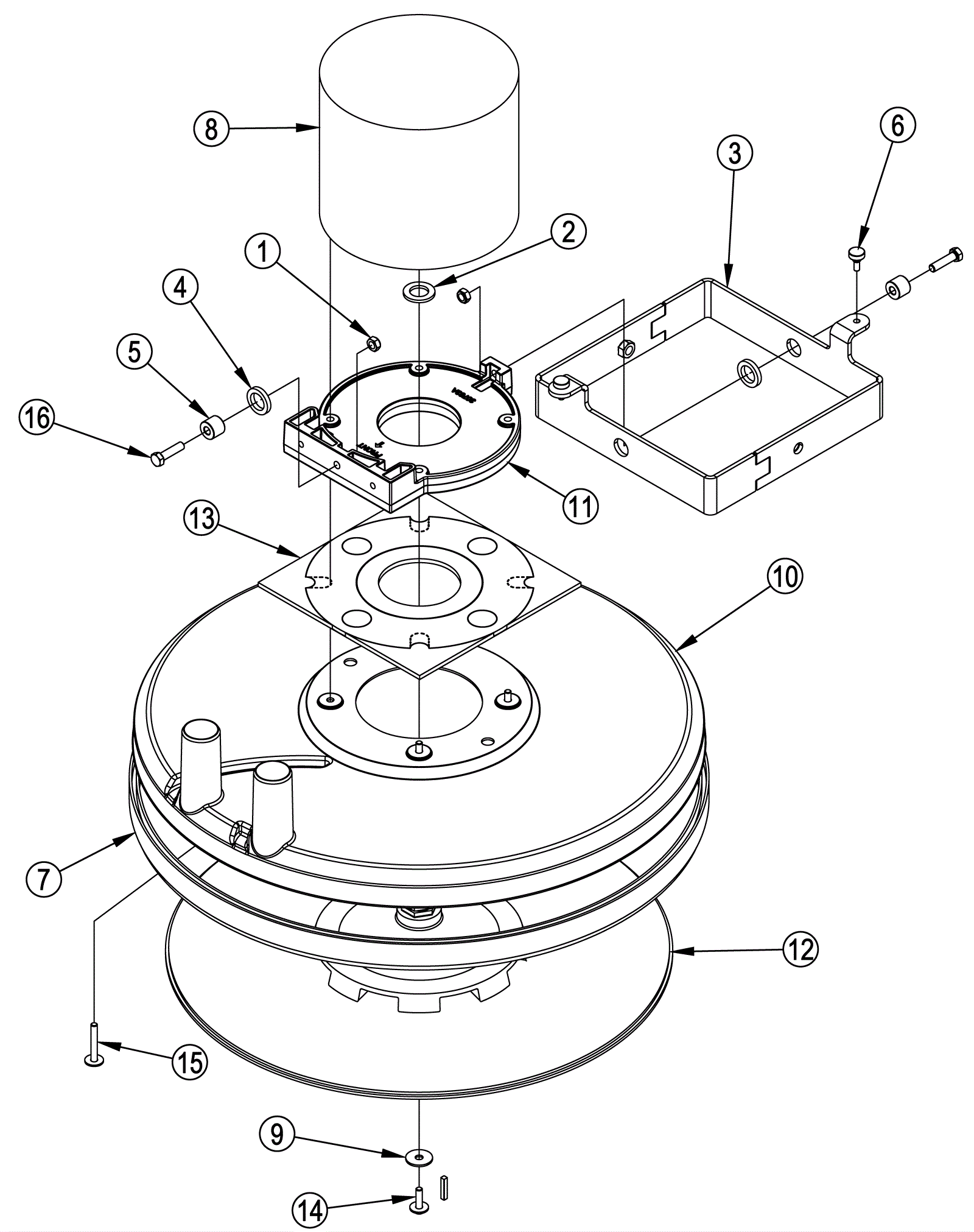

Head Assembly

#PartDescription ReqNotesAvailability
1 154-3956 Nut 5/16 inch lock 4
2 170-7514 Nut 1/4-20 stop 2
3 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated 2
4 999-1364 Washer 5/16 x 1 fender zinc finish 1
5 999-0016 Washer 1/4 flat plain finish 6
6 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
7 999-0060 Washer 1/4 split lock plain finish 5
8 172-3072 20 inch skirt assembly 1
9 272-8225 20 inch dust shroud 1
10 272-8496 Motor mount 1
11a 272-8458 36V 2.5HP brush motor 1
11b 172-2818 Carbon brush (pkg of 4) 1
12a 272-8211 20 inch pad driver 1
12b 991-2203 Big mouth pad holder male thread portion 1
13 272-8224 Gasket 1
14 272-8495 Motor frame weldment (OBSOLETE) 1
15 170-3444 Shoulder bolt 2
16 272-8494 External retaining ring 1
17 999-1064 Bolt 1/4-20 x 1 3/4 hex head cap grade 5 zinc plated 4
18 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 1
19 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 4
20 170-6124 Washer flat nylon 2
