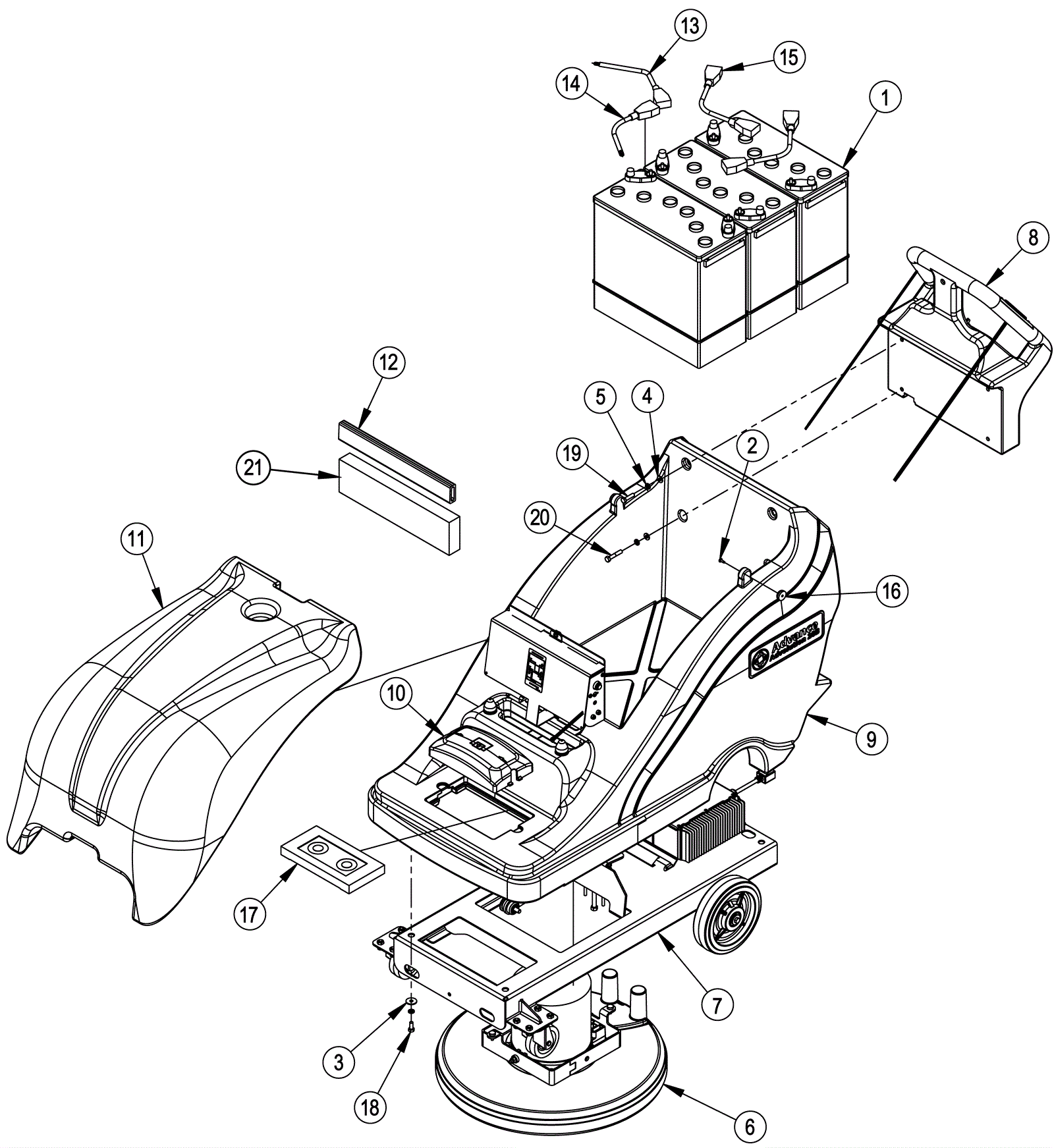

ADVOLUTION 20B Entire Assembly - After SN 3000117136

#PartDescriptionPriceReqNotesAvailability
2 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 2 ships same day
3 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 4 ships same day
4 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
5 999-0028 Washer 5/16 split lock plain finish $0.99 8 ships same day
6 N/A Not available Call for price 1 (head assembly) usually ships 3-26 days
7 N/A Not available Call for price 1 (frame assembly) usually ships 3-26 days
8 N/A Not available Call for price 1 (handle assembly) usually ships 3-26 days
9 N/A Not available Call for price 1 (body assembly) usually ships 3-26 days
10 272-8219 Dust bag cover $12.83 1 usually ships 16-41 days
11 272-7440 Top cover $850.49 1 usually ships 16-41 days
12 272-7441 Battery spacer $9.02 1 usually ships 16-41 days
13 272-8515 Negative battery cable $59.87 1 usually ships 16-41 days
14 272-8514 Positive battery cable $55.65 1 usually ships 16-41 days
15 272-8585 Battery jumper cable $44.79 2 usually ships 16-41 days
16 170-1290 Bumper $11.99 2 usually ships 1-5 days
18 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 ships same day
19 170-3357 Screw 5/16-18x1 1/4 hex head $7.49 2 usually ships 4-15 days
20 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 2 ships same day
21 272-7420 Battery spacer $9.02 1 usually ships 16-41 days
N/S 172-3066 Vacuum bag (pkg of 10) $20.86 1 (OEM) ships same day
