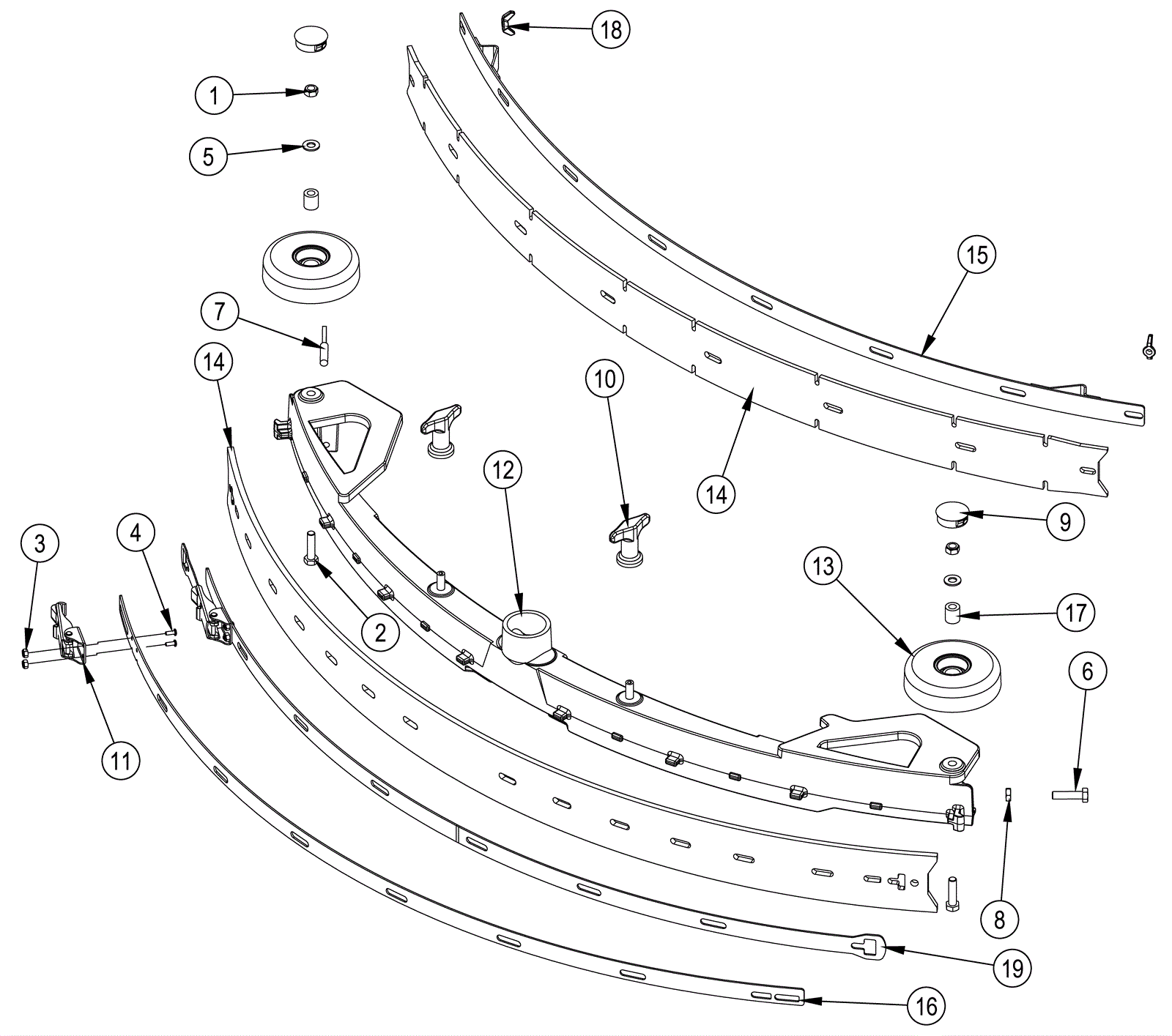

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
272-7245
|
34 inch squeegee assembly |
1 |
|
|
1 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
2 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
2 |
|
|
3 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
(before May 2012) |
|
4 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
2 |
(before May 2012) |
|
5 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
6 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
1 |
|
|
7 |
272-3671
|
Screw 5/16-18 x 1 1/4 thumb stainless steel |
1 |
|
|
8 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
1 |
|
|
9 |
272-9868
|
Button plug |
2 |
|
|
10 |
172-4099
|
Nut 5/16-18 thumb |
2 |
|
|
11 |
172-0094
|
Latch |
1 |
(before May 2012) |
|
12 |
N/A
|
Not available |
|
(The squeegee casting is not available for sale separately. If you need to replace your squeegee casting please order a new squeegee assembly, 272-7245) |
|
13 |
272-9881
|
Wheel |
2 |
|
|
14a |
172-4688
|
Squeegee blade kit 34 inch gum rubber |
1 |
|
|
14b |
572-8127
|
Polyurethane squeegee blade kit (L) |
1 |
(optional) |
|
14c |
272-3682
|
Squeegee blade kit 34 inch gum rubber (red) |
1 |
(optional) |
|
15 |
272-3683
|
Front strap |
1 |
|
|
16a |
272-3684
|
Rear strap |
1 |
(after SN300006846 and before May 2012) |
|
16b |
272-3685
|
Rear strap |
1 |
(before SN300006847) |
|
17 |
272-9882
|
Bushing |
2 |
|
|
18 |
999-0603
|
Nut 1/4-20 wing stainless steel |
2 |
(before SN300006847) |
|
19 |
272-3686
|
Band clamp |
1 |
(after April 2012) |
|
