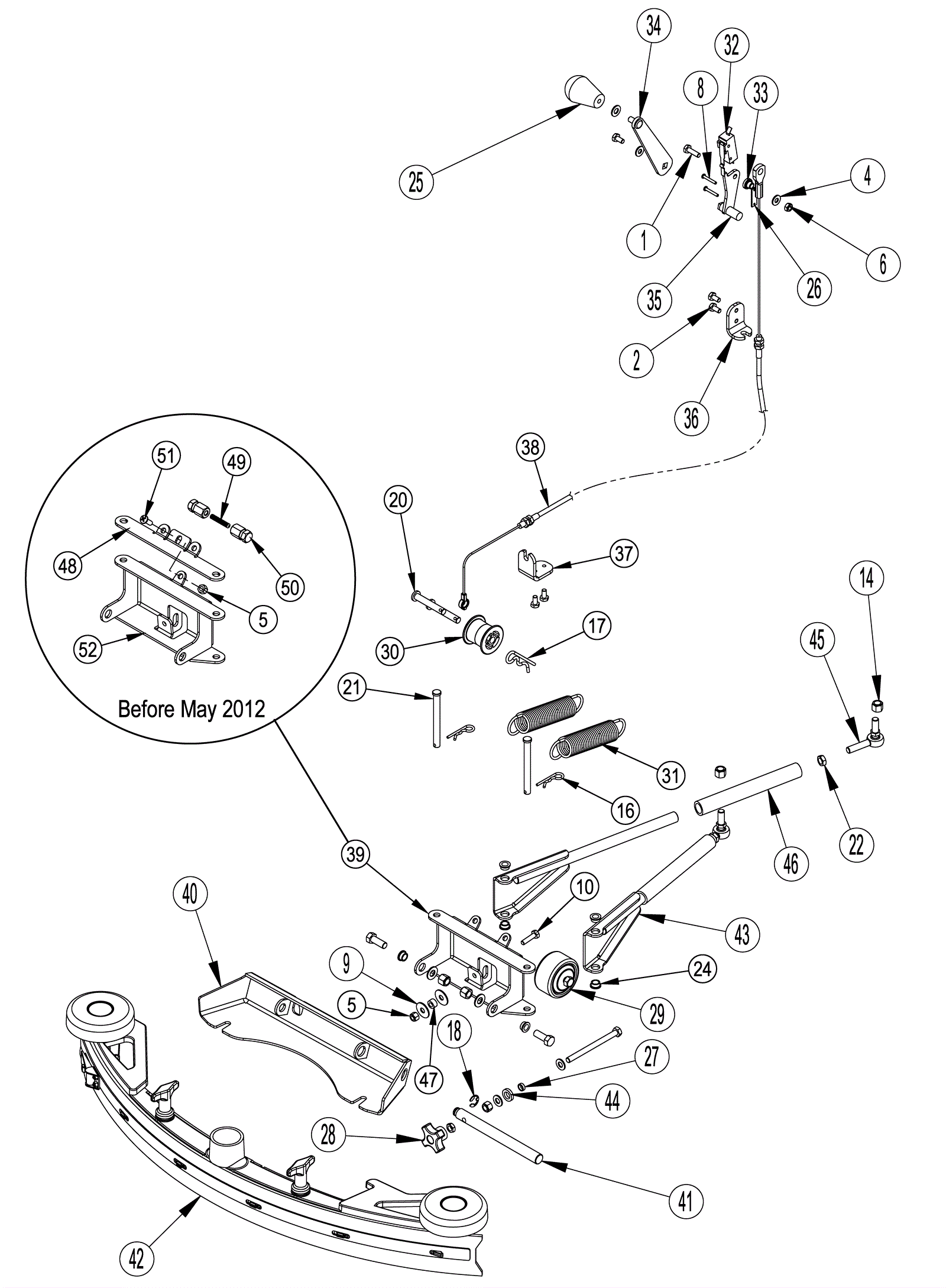

ADVENGER 2805C Squeegee System - ST

#PartDescriptionPriceReqNotesAvailability
1 999-0822 Screw 1/4-20 x 7/8 hex head plain finish $0.99 1 ships same day
2 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 5 ships same day
3 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
4 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 (These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) ships same day
5 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
6 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
7 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
8 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
10 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 1 ships same day
11 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
12 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
13 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
14 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
15 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
16 997-2518 Hitch pin $0.99 2 ships same day
17 172-3483 Cotter pin $10.90 1 usually ships 16-41 days
18 172-0269 Retaining ring $9.60 1 usually ships 16-41 days
20 172-3484 Clevis pin $10.90 2 usually ships 1-5 days
21 272-3650 Clevis pin $10.90 2 usually ships 16-41 days
22 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
23 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 1 ships same day
24 172-8815 Flanged bearing $12.18 6 usually ships 16-41 days
25 172-0021 Knob $21.77 1 usually ships 16-41 days
26 172-6084 Nut plate $5.16 1 ships same day
27 172-9202 Bushing $40.72 1 usually ships 16-41 days
28 172-2150 Knob $9.60 1 usually ships 16-41 days
29 172-9050 Wheel $74.79 1 usually ships 16-41 days
30 172-9093 Roller $13.70 1 usually ships 16-41 days
31 172-9090 Extension spring $58.39 2 (These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) usually ships 16-41 days
32 272-9264 Vac switch $17.68 1 usually ships 16-41 days
33 272-3663 Cable bushing $13.70 1 usually ships 1-5 days
34 272-3666 Linkage arm $19.09 1 usually ships 1-5 days
35 272-3667 Linkage weldment $53.16 1 usually ships 1-5 days
36 272-3668 Cable bracket $15.00 1 usually ships 1-5 days
37 272-3669 Cable bracket $15.00 1 usually ships 1-5 days
38 272-3670 Cable $123.47 1 usually ships 16-41 days
39 272-6381 Squeegee pivot weldment $96.44 1 (after April 2012) usually ships 1-5 days
40 272-7364 Squeegee mount weldment $88.61 1 usually ships 16-41 days
41 272-3655 Shaft $42.65 1 usually ships 16-41 days
42a 272-3656 28 inch squeegee assembly $623.58 1 ships same day
42b 272-7245 34 inch squeegee assembly $853.98 1 usually ships 16-41 days
43 272-3657 Bar weldment $50.59 2 usually ships 16-41 days
44 272-3658 Polyurethane washer $10.90 1 usually ships 1-5 days
45 272-3659 Rod end $26.13 2 usually ships 16-41 days
46 272-3660 Hose $10.90 2 usually ships 16-41 days
47 172-0185 Bushing $32.79 1 usually ships 1-5 days
48 272-3661 Spring bracket $32.79 1 (These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) usually ships 1-5 days
49 272-3662 Threaded rod $9.60 1 (These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) usually ships 1-5 days
50 272-6382 Spring nut $19.09 2 (These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) usually ships 1-5 days
51 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel $1.76 1 (These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) ships same day
52 272-3664 Squeegee pivot weldment $152.92 1 (before May 2012) usually ships 16-41 days
N/S 272-9727 Screw 1/4-20 x 1/2 hex head lock $10.90 1 (after 8/2016) usually ships 1-5 days
