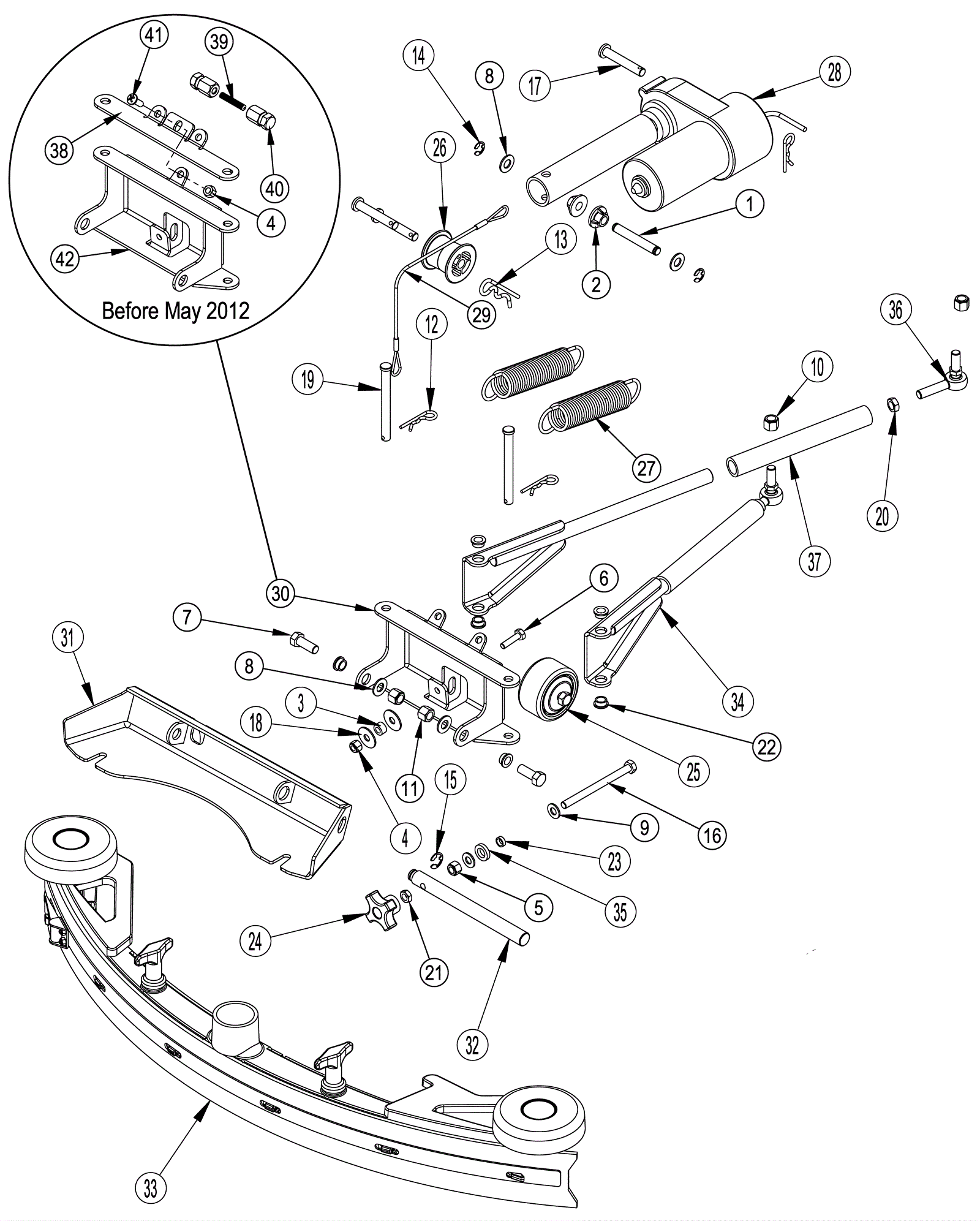

Squeegee System - Standard, Ecoflex and REV

#PartDescription ReqNotesAvailability
1 172-2365 Pin 1
2 172-9092 Spacer 2
3 172-2032 Spacer 1
4 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2 (These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.)
5 999-0423 Nut 5/16-18 nylon insert lock stainless steel 1
6 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
7 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 2
8 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4
9 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
10 999-0169 Nut 3/8-24 hex jam plain finish 2
11 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 2
12 997-2518 Hitch pin 3
14 172-4033 3/8 inch retaining ring 2
15 172-0269 Retaining ring 1
18 272-1288 Washer 21/64-1 x 1/16 flat stainless steel 2
19 272-3650 Clevis pin 2
21 999-1019 Nut 5/16-18 hex jam stainless steel 1
22 172-8815 Flanged bearing 6
23 172-9202 Bushing 1
25 172-9050 Wheel 1
26 172-9093 Roller 1
27 172-9090 Extension spring 2 (These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.)
28 272-3651 Actuator 1
29 272-3652 Cable assembly 1
30 272-6381 Squeegee pivot weldment 1 (After April 2012)
31 272-7364 Squeegee mount weldment 1
32 272-3655 Shaft 1
33a 272-3656 28 inch squeegee assembly 1
33b 272-7245 34 inch squeegee assembly 1
34 272-3657 Bar weldment 2
35 272-3658 Polyurethane washer 1
36 272-3659 Rod end 2
37 272-3660 Hose 2
38 272-3661 Spring bracket 1 (These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.)
39 272-3662 Threaded rod 1 (These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.)
40 272-6382 Spring nut 2 (These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.)
41 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 1 (These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.)
42 272-3664 Squeegee pivot weldment 1 (Before May 2012)
