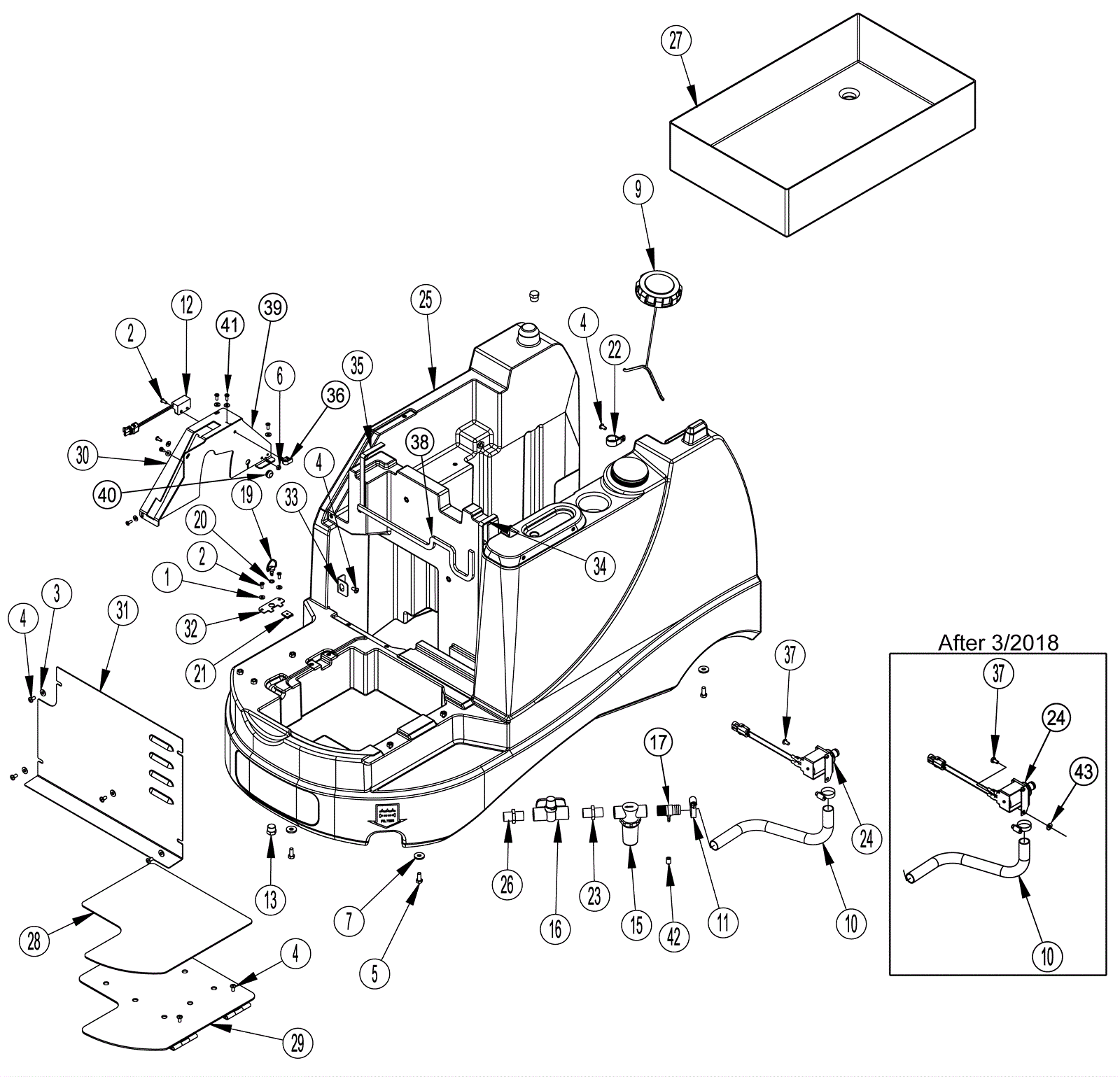

ADVENGER 2805C Solution Assembly - ST

#PartDescriptionPriceReqNotesAvailability
1 999-0998 Washer #10 flat stainless steel $0.99 8 ships same day
2 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 7 ships same day
3 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
4 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 10 ships same day
5 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 ships same day
6 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
7 172-2067 Washer 11/32 x 1/8 flat $10.90 4 usually ships 16-41 days
9 272-9352 Raw cap with tether $55.83 1 usually ships 16-41 days
10 170-7102 Solution hose $28.94 1 usually ships 16-41 days
11 997-2005 Hose clamp $2.15 2 ships same day
12 272-8850 Proximity sensor $149.70 1 usually ships 16-41 days
13 272-9915 Pipe plug $10.90 2 usually ships 16-41 days
15a 272-2342 Solution filter $19.67 1 usually ships 3-10 days
15b 272-3639 Solution filter kit $24.47 1 (optional) usually ships 16-41 days
16 272-3640 Ball valve $12.18 1 usually ships 16-41 days
17 272-3645 Tee $10.90 1 ships same day
19 172-8218 Fastener $7.69 1 usually ships 16-41 days
20 272-2424 Retainer $6.70 1 ships same day
21 272-2426 Receptacle $12.18 1 usually ships 16-41 days
22 172-1154 P clamp $10.90 3 usually ships 1-5 days
23 172-2099 Nipple $9.60 2 usually ships 16-41 days
24 272-9265 Solenoid valve $223.87 1 usually ships 16-41 days
25 272-3641 Solution tank $1,301.59 1 usually ships 1-5 days
26 272-3644 Reducer nipple $10.90 1 (272-3644 is only used on machines built before December 16, 2013. After that date it is replaced with 172-2099.) usually ships 16-41 days
27 272-8863 Battery box $190.31 1 usually ships 16-41 days
28 272-8864 Mat $42.65 1 usually ships 16-41 days
29 272-8865 Charger cover weldment $107.71 1 usually ships 1-5 days
30 272-6380 Top panel handle cover $15.00 1 usually ships 16-41 days
31 272-6379 Electrical cover panel $107.71 1 usually ships 1-5 days
32 272-6378 Plate $10.90 1 usually ships 1-5 days
33 272-8870 L bracket $23.05 1 (Bracket) usually ships 1-5 days
34 272-8868 Gasket $10.90 1 usually ships 1-5 days
35 272-8869 Gasket $10.90 1 usually ships 1-5 days
36 272-8754 Conduit clip $10.90 1 usually ships 1-5 days
37 272-6383 Screw 1/4-20 x 3/4 hex loc stainless steel $8.20 1 usually ships 1-5 days
38 272-8871 Gasket $10.90 1 usually ships 1-5 days
39 272-8872 Handle cover weldment $49.18 1 usually ships 1-5 days
40 172-1228 Grommet $9.60 1 usually ships 1-5 days
41 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping $0.99 2 ships same day
42 172-7436 Rubber tip $10.90 1 usually ships 1-5 days
43 372-1011 Washer 1/4 $10.90 1 usually ships 16-41 days
