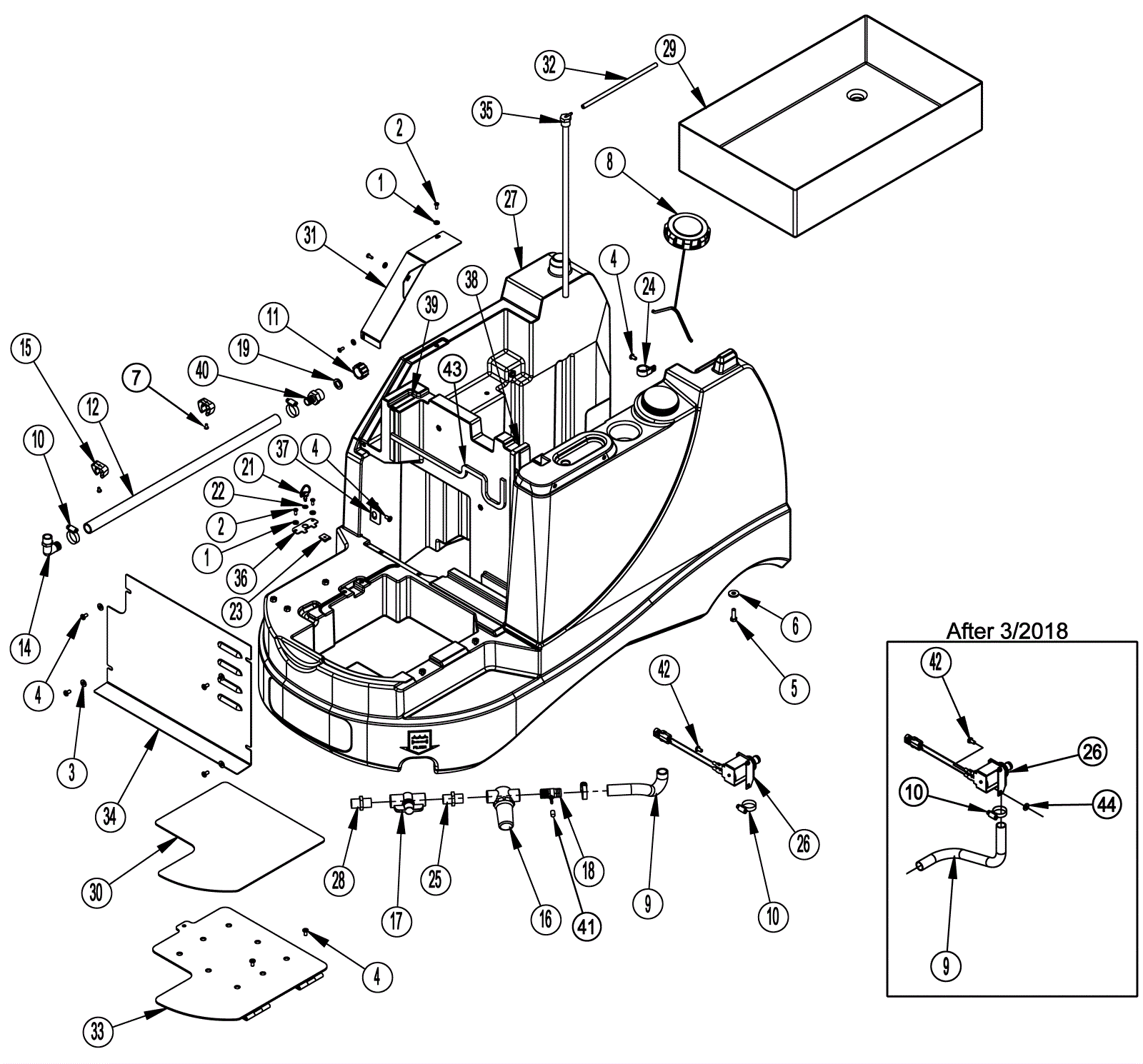

ADVENGER 2805C Solution Assembly - Standard

#PartDescriptionPriceReqNotesAvailability
1 999-0998 Washer #10 flat stainless steel $0.99 5 ships same day
2 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 5 ships same day
3 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
4 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 10 ships same day
5 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 ships same day
6 172-2067 Washer 11/32 x 1/8 flat $10.90 4 usually ships 16-41 days
7 272-6384 Screw 10-24 x .38 pan head phillips loc SS $8.20 2 usually ships 16-41 days
8 272-9352 Raw cap with tether $55.83 1 usually ships 16-41 days
9 170-7102 Solution hose $28.94 1 usually ships 16-41 days
10 997-2005 Hose clamp $2.15 4 ships same day
11 172-0254 Nylon pipe cap $10.90 1 usually ships 16-41 days
12 272-1410 Hose $31.51 1 (solution drain hose) usually ships 16-41 days
14 272-1448 90 degree elbow barb $10.90 1 usually ships 16-41 days
15 272-3638 Hose clip $9.60 2 usually ships 1-5 days
16a 272-2342 Solution filter $19.67 1 usually ships 3-10 days
16b 272-3639 Solution filter kit $24.47 1 (optional) usually ships 16-41 days
17 272-3640 Ball valve $12.18 1 usually ships 16-41 days
18 272-3645 Tee $10.90 1 ships same day
19 172-0197 Rubber washer $9.60 1 usually ships 16-41 days
21 172-8218 Fastener $7.69 1 usually ships 16-41 days
22 272-2424 Retainer $6.70 1 ships same day
23 272-2426 Receptacle $12.18 1 usually ships 16-41 days
24 172-1154 P clamp $10.90 3 usually ships 1-5 days
25 172-2099 Nipple $9.60 2 usually ships 16-41 days
26 272-9265 Solenoid valve $223.87 1 usually ships 16-41 days
27 272-3641 Solution tank $1,301.59 1 usually ships 1-5 days
28 272-3644 Reducer nipple $10.90 1 (272-3644 is only used on machines built before December 16, 2013. After that date it is replaced with 172-2099.) usually ships 16-41 days
29 272-8863 Battery box $190.31 1 usually ships 16-41 days
30 272-8864 Mat $42.65 1 usually ships 16-41 days
31 272-3646 Plate $27.53 1 usually ships 1-5 days
32 272-6376 Hose $8.20 2 usually ships 16-41 days
33 272-8865 Charger cover weldment $107.71 1 usually ships 1-5 days
34 272-6379 Electrical cover panel $107.71 1 usually ships 1-5 days
35 272-3648 Pressure sensing tube with elbow $9.60 1 usually ships 16-41 days
36 272-6378 Plate $10.90 1 usually ships 1-5 days
37 272-8870 L bracket $23.05 1 usually ships 1-5 days
38 272-8868 Gasket $10.90 1 usually ships 1-5 days
39 272-8869 Gasket $10.90 1 usually ships 1-5 days
40 170-0264 Hose barb $9.60 1 usually ships 16-41 days
41 172-7436 Rubber tip $10.90 1 usually ships 1-5 days
42 272-6383 Screw 1/4-20 x 3/4 hex loc stainless steel $8.20 1 usually ships 1-5 days
43 272-8871 Gasket $10.90 1 usually ships 1-5 days
44 372-1011 Washer 1/4 $10.90 1 usually ships 16-41 days
