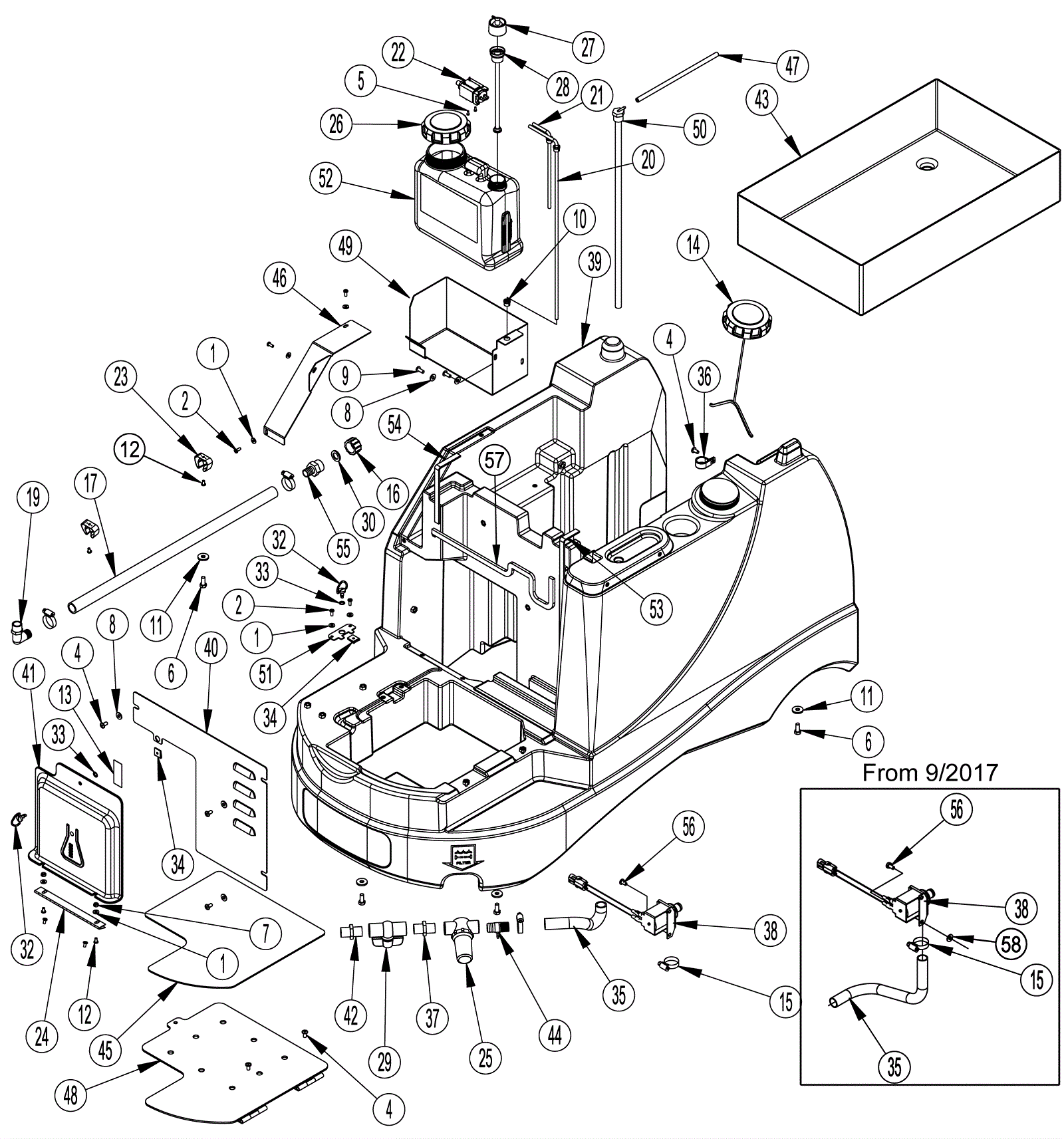

ADVENGER 2805C Solution Assembly - Ecoflex and REV

#PartDescriptionPriceReqNotesAvailability
1 999-0998 Washer #10 flat stainless steel $0.99 7 ships same day
2 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 5 ships same day
4 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 8 ships same day
5 999-1865 Screw 6-32 x 5/16 pan head phillips thread cutting ss $0.99 2 usually ships 1-5 days
6 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 ships same day
7 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
8 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 5 ships same day
9 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
10 272-2174 Snub bushing $10.90 3 usually ships 1-5 days
11 172-2067 Washer 11/32 x 1/8 flat $10.90 4 usually ships 16-41 days
12 272-6384 Screw 10-24 x .38 pan head phillips loc SS $8.20 6 usually ships 16-41 days
13 272-9827 Chemical ratio decal $15.00 1 usually ships 1-5 days
14 272-9352 Raw cap with tether $55.83 1 usually ships 16-41 days
15 997-2005 Hose clamp $2.15 4 ships same day
16 172-0254 Nylon pipe cap $10.90 1 usually ships 16-41 days
17 272-1410 Hose $31.51 1 usually ships 16-41 days
19 272-1448 90 degree elbow barb $10.90 1 usually ships 16-41 days
20 272-3637 Chemical resistant hose $24.47 1 usually ships 16-41 days
21 272-5404 Chemical resistant hose $10.90 1 usually ships 16-41 days
22 272-2175 Chemical pump $264.47 1 usually ships 16-41 days
23 272-3638 Hose clip $9.60 2 usually ships 1-5 days
24 272-2171 Hinge $13.70 1 usually ships 16-41 days
25a 272-2342 Solution filter $19.67 1 usually ships 3-10 days
25b 272-3639 Solution filter kit $24.47 1 (optional) usually ships 16-41 days
26 272-2180 Solution fill cap $6.79 1 ships same day
27 272-2182 Dry break cap $30.22 1 ships same day
28 272-2184 Dry break insert $12.18 1 ships same day
29 272-3640 Ball valve $12.18 1 usually ships 16-41 days
30 172-0197 Rubber washer $9.60 1 usually ships 16-41 days
32 172-8218 Fastener $7.69 2 usually ships 16-41 days
33 272-2424 Retainer $6.70 2 ships same day
34 272-2426 Receptacle $12.18 2 usually ships 16-41 days
35 170-7102 Solution hose $28.94 1 usually ships 16-41 days
36 172-1154 P clamp $10.90 3 usually ships 1-5 days
37 172-2099 Nipple $9.60 2 usually ships 16-41 days
38 272-9265 Solenoid valve $223.87 1 usually ships 16-41 days
39 272-3641 Solution tank $1,301.59 1 usually ships 1-5 days
40 272-3642 Panel $80.05 1 usually ships 1-5 days
41 272-3643 Chemical bottle cover $12.18 1 usually ships 1-5 days
42 272-3644 Reducer nipple $10.90 1 (272-3644 is only used on machines built before December 16, 2013. After that date it is replaced by 172-2099) usually ships 16-41 days
43 272-8863 Battery box $190.31 1 usually ships 16-41 days
44 272-3645 Tee $10.90 1 ships same day
45 272-8864 Mat $42.65 1 usually ships 16-41 days
46 272-3646 Plate $27.53 1 usually ships 1-5 days
47 272-6376 Hose $8.20 1 usually ships 16-41 days
48 272-8865 Charger cover weldment $107.71 1 usually ships 1-5 days
49 272-6377 Bracket $37.13 1 ships same day
50 272-3648 Pressure sensing tube with elbow $9.60 1 usually ships 16-41 days
51 272-6378 Plate $10.90 1 usually ships 1-5 days
52a 272-9832 Chemical bottle assembly $46.13 1 ships same day
52b 272-9833 Chemical bottle assembly $133.19 1 (optional) (includes 26, 28 and 52) usually ships 16-41 days
53 272-8868 Gasket $10.90 1 usually ships 1-5 days
54 272-8869 Gasket $10.90 1 usually ships 1-5 days
55 170-0264 Hose barb $9.60 1 usually ships 16-41 days
56 272-6383 Screw 1/4-20 x 3/4 hex loc stainless steel $8.20 1 usually ships 1-5 days
57 272-8871 Gasket $10.90 1 usually ships 1-5 days
58 372-1011 Washer 1/4 $10.90 1 usually ships 16-41 days
