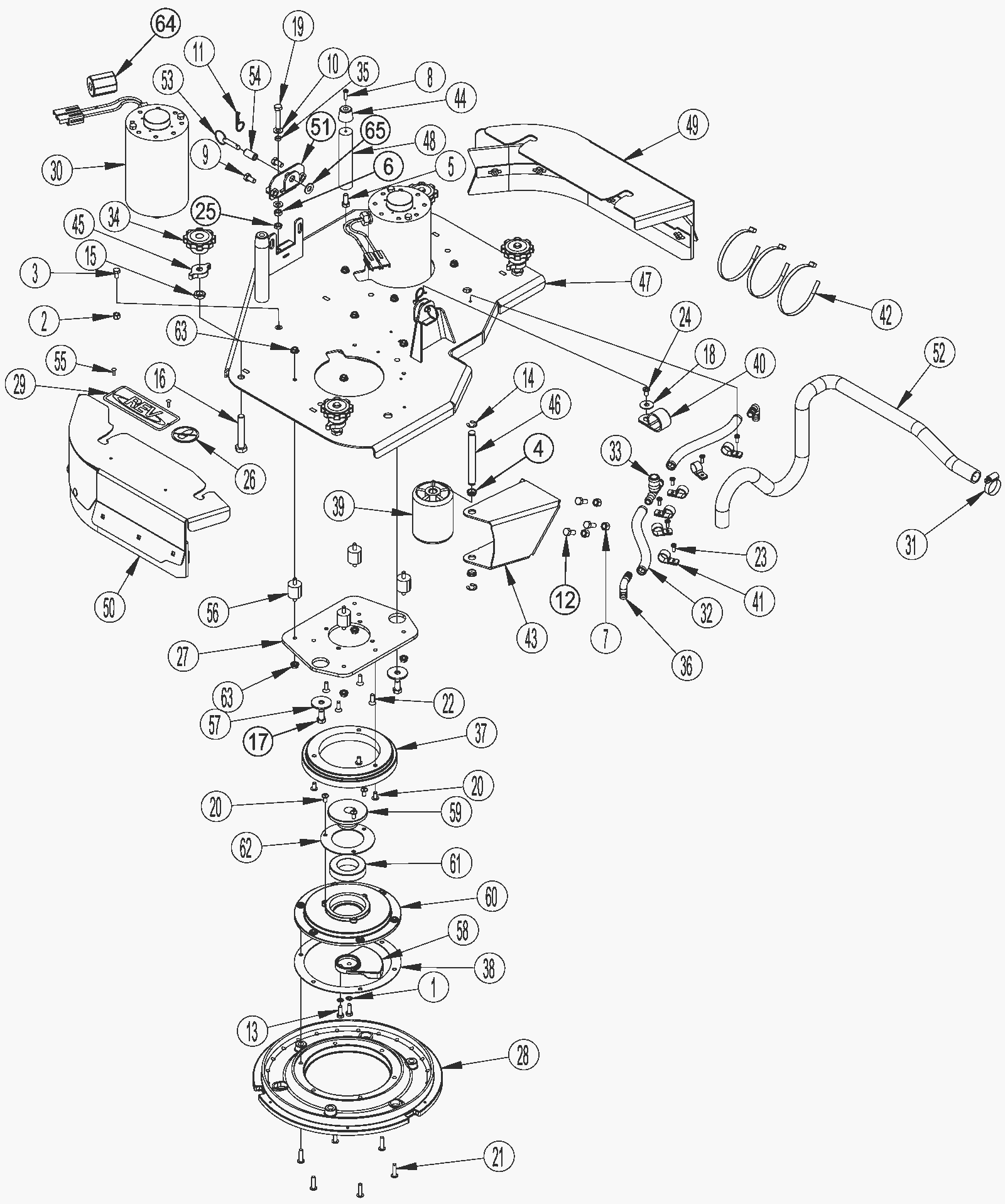

Scrub Deck Assembly - REV

#PartDescription ReqNotesAvailability
1 N/A Not available 4 (Washer) (included in Kit 2)
2 N/A Not available 1 (Nut) (included in Kit 2)
3 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 1 (included in Kit 2)
4 172-8919 Flanged bearing 2
5 N/A Not available 2 (Screw) (included in Kit 2)
6 N/A Not available 1 (Nut) (included in Kit 2)
7 999-0423 Nut 5/16-18 nylon insert lock stainless steel 3
8 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 2 (included in Kit 2)
9 N/A Not available 2 (Screw) (included in Kit 2)
11a 172-2001 Hair cotter pin 2
11b 272-9987 Cotter pin 2 (after 7/2019)
12 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 3
13 N/A Not available 4 (Screw) (included in Kit 2)
14 172-0269 Retaining ring 2
15 999-1377 Nut M12-1.75 hex jam 4
16 999-1349 Screw M12-1.75 x 70mm full thread hex head stainless steel 4
18 272-1288 Washer 21/64-1 x 1/16 flat stainless steel 1 (included in Kit 1)
19 N/A Not available 1 (Screw) (included in Kit 2)
20 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 12 (included in Kit 2)
21 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 12 (included in Kit 2)
22 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 8 (included in Kit 2)
23 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 6 (included in Kit 1)
24 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 1 (included in Kit 1)
25 999-1019 Nut 5/16-18 hex jam stainless steel 1 (included in Kit 2)
26 172-3428 No step decal 1
27 272-6545 Motor plate 2
28b 272-6546 Pad driver hook kit 2
29 272-9942 REV decal 1
30a 272-6547 Motor 2 (includes 30b-30d)
30b 172-8951 Carbon brush and spring kit 2
30c 170-0009 Connector housing 2
30d 272-9949 Connector contact 2
30e 272-3688 Brush and spring kit 2 (after 7/2019)
31 997-2005 Hose clamp 1
32 154-0037 Tubing 1/2 x 5/8 (clear) (sold by the foot) 2 (included in Kit 1)
33 272-3603 Barbed tee 1 (included in Kit 1)
34 572-9330 Knob 4
35 N/A Not available 1 (Bushing) (included in Kit 2)
36 170-2963 90 degree barbed elbow 2 (included in Kit 1)
37 272-6548 Splash shield 2
39 172-9157 Roller wheel 1
40 172-9261 P clamp 1 (included in Kit 1)
41 172-2071 P clamp 1 (included in Kit 1)
42 997-2102 Cable tie 3
43 272-6377 Bracket 1
44 272-8773 Stop mount 2
45 172-9282 Knob 4
47 272-6358 Scrub deck weldment 1
48 272-6359 Stop rod 2
49 272-6360 REV left skirt assembly 1
50 272-6361 REV right skirt assembly 1 (Rivet)
51 272-6362 Bracket weldment 1
52 272-6357 Hose 1 (included in Kit 1)
53 272-6363 Ring pin 2
54 272-6364 Bushing 2
55 N/A Not available 2 (rivet) (included in Kit 2)
56a 170-9016 Rubber mounting isolator kit 1
56b 372-1634 Isolator 8 (after 7/2019)
57 272-1513 Washer 13/32 x 1 1/2 x 1/8 flat 4
58 272-9946 Counter weight 2 (Nut)
59 272-6366 Eccentric 2
60 272-9947 Motor driver 2
61 270-0065 Bearing 2
62 270-0126 Bearing retainer 2
63 N/A Not available 16 (nut serrated flange) (included in Kit 2)
64 272-3623 Ferrite bead 2
65a 272-6367 Washer nylon flat 2
65b 170-5613 Bushing Link Arm 2 (after 7/2019)
Kit 1 272-6543 Solution hose kit 1 (Kit 1) (includes 18, 23-24, 32-33, 36, 40-41, 52)
