| # | Part | Description |
Req | Notes | Availability |
|---|

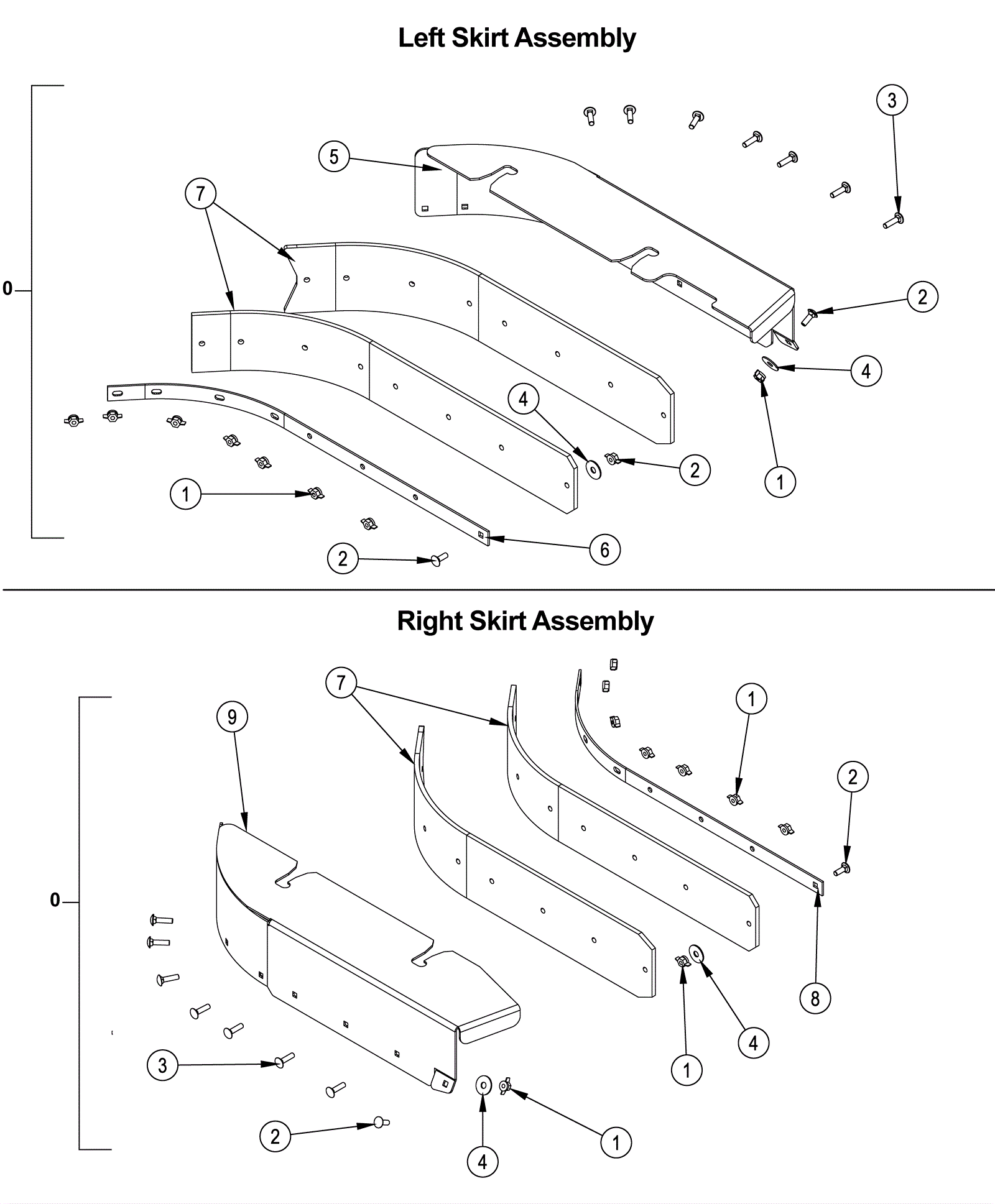

0a |
272-3602
|
Left skirt assembly |
1 |
(28 inch models) |
|
0b |
272-8602
|
Left skirt assembly |
1 |
(34 inch models) |
|
0c |
272-8603
|
Right skirt assembly |
1 |
(all models) |
|
1a |
999-1948
|
Nut 1/4-20 wing lock |
9 |
(OEM) (Quantities shown are for one skirt assembly. There are two skirt assemblies on the machine.) |
|
1b |
999-1948
|
Nut 1/4-20 wing lock |
9 |
(NON-OEM) |
|
2 |
272-3627
|
Screw 1/4-20 x 3/4 carriage head stainless steel |
2 |
(Quantities shown are for one skirt assembly. There are two skirt assemblies on the machine.) |
|
4 |
172-0548
|
Washer 17/64 x 47/64 flat stainless steel |
2 |
(Quantities shown are for one skirt assembly. There are two skirt assemblies on the machine.) |
|
5a |
N/A
|
Not available |
1 |
(28 inch left skirt frame) |
|
5b |
N/A
|
Not available |
1 |
(34 inch left skirt frame) |
|
6a |
272-6385
|
28 inch skirt retainer |
1 |
( 28 inch models) |
|
6b |
272-6386
|
34 inch skirt retainer |
1 |
(34 inch models) |
|
7a |
172-4687
|
Skirt blade kit gum rubber (tan) (set of 2) |
1 |
(Quantities shown are for one skirt assembly. There are two skirt assemblies on the machine,) |
|
7b |
272-6387
|
Skirt blade kit polyurethane |
1 |
(optional) (Quantities shown are for one skirt assembly. There are two skirt assemblies on the machine.) |
|
9 |
N/A
|
Not available |
1 |
(Right skirt frame) |
|
