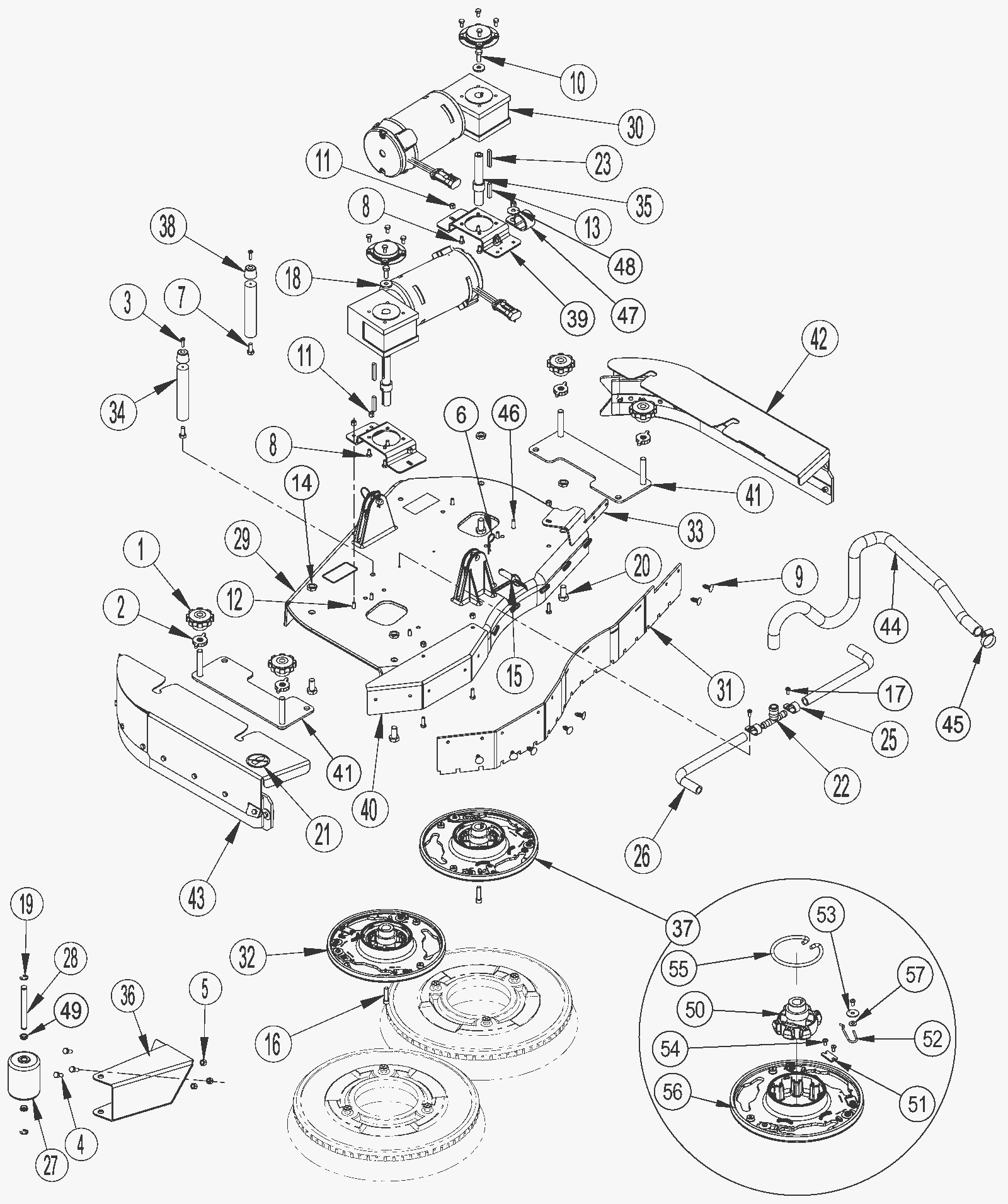

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
572-9330
|
Knob |
4 |
(TSBUS2010-1060) |
|
2 |
172-9282
|
Knob |
4 |
|
|
3 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
2 |
|
|
4 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
3 |
|
|
5 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
3 |
|
|
6b |
272-9987
|
Cotter pin |
2 |
|
|
7 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
8 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
8 |
|
|
9 |
991-5122
|
1/4 nylon tree push-in rivet |
7 |
|
|
10 |
999-0494
|
Bolt 5/16-18 x 7/8 hex head stainless steel |
2 |
|
|
11 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
9 |
|
|
12 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
8 |
|
|
13 |
181-0112
|
Square key |
2 |
|
|
14 |
999-1377
|
Nut M12-1.75 hex jam |
4 |
|
|
15 |
272-7255
|
Ring pin |
2 |
|
|
16 |
272-9905
|
Screw 5/16-18 x 1 1/4 socket head zinc plated |
2 |
|
|
17 |
999-0545
|
Screw 10-24 x 1/2 pan head phillips self-tapping |
2 |
|
|
18 |
172-3047
|
Washer 11/32 x 1/8 flat |
2 |
|
|
19 |
172-0269
|
Retaining ring |
2 |
|
|
20 |
272-1654
|
Bolt 12mm-1 3/4 x 25mm |
4 |
|
|
21 |
172-3428
|
No step decal |
1 |
|
|
23 |
172-3388
|
Square keyway |
2 |
|
|
25 |
172-2542
|
P clamp |
2 |
|
|
26 |
272-0070
|
Wire reinforced hose |
2 |
|
|
27 |
172-9157
|
Roller wheel |
1 |
|
|
28 |
272-8756
|
Pin |
1 |
|
|
29 |
272-3604
|
Scrub deck weldment |
1 |
|
|
30a |
272-3605
|
Motor gearbox assembly |
2 |
(includes 30b-30h) |
|
30b |
272-3606
|
Gearbox |
1 |
|
|
30c |
172-3391
|
Bearing |
1 |
|
|
30d |
272-3607
|
Bearing |
1 |
|
|
30e |
272-3608
|
Carbon brush (sold individually) |
2 |
|
|
30f |
272-3609
|
Square keyway |
1 |
|
|
30g |
272-3610
|
Brush motor cover |
1 |
|
|
30h |
272-3611
|
Motor fan |
1 |
|
|
31a |
272-3612
|
Squeegee blade 34 inch gum rubber front |
1 |
|
|
31b |
272-3625
|
Squeegee blade 34 inch urethane front |
1 |
(optional) |
|
32 |
272-3613
|
Right brush plate assembly |
1 |
(includes 50-57) |
|
33 |
272-3614
|
Skirt bracket |
1 |
|
|
34 |
272-3615
|
Rod |
2 |
|
|
35 |
272-3616
|
Shaft |
2 |
|
|
36 |
272-6538
|
Roller bracket |
1 |
|
|
37 |
272-3618
|
Left brush plate assembly |
1 |
(includes 50-57) |
|
38 |
272-8773
|
Stop mount |
2 |
|
|
39 |
272-3619
|
Motor bracket |
2 |
|
|
40 |
272-3620
|
Brush cover |
1 |
|
|
41a |
270-8583
|
Side skirt weldment |
2 |
|
|
41b |
270-8583
|
Side skirt weldment |
2 |
(after 7/2019) |
|
42a |
272-8602
|
Left skirt assembly |
1 |
|
|
42b |
472-7893
|
SKIRT ASSY-LEFT-34D |
1 |
(after 7/2019) |
|
42c |
472-7890
|
SKIRT ASSY KIT-34 IN |
1 |
(original skirt assemblies are no longer available. If you have a machine built prior to January 20, 2014, you should ordeer this assembly to replace them as a matched pair.) |
|
43a |
272-8603
|
Right skirt assembly |
1 |
|
|
43b |
472-7891
|
SKIRT ASSY-RIGHT-28-34D |
1 |
(after 7/2019) |
|
44 |
272-6357
|
Hose |
1 |
|
|
45 |
997-2005
|
Hose clamp |
1 |
|
|
46 |
999-0518
|
Bolt M6-1 x 25mm hex head full thread zinc |
1 |
|
|
47 |
172-9261
|
P clamp |
1 |
|
|
48 |
272-1288
|
Washer 21/64-1 x 1/16 flat stainless steel |
1 |
|
|
49 |
172-8919
|
Flanged bearing |
2 |
|
|
50 |
272-7257
|
6 tab gimbal and collar assembly |
1 |
|
|
51 |
172-0155
|
Stop plate |
1 |
|
|
52 |
272-9883
|
Retainer spring |
2 |
|
|
53 |
172-0553
|
Washer 17/64 x 1/16 flat |
1 |
|
|
54 |
999-1833
|
Screw 10-14 x 3/8 pan head phillips stainless steel |
4 |
|
|
55 |
272-9884
|
Brush holder spring |
1 |
|
|
56 |
272-9885
|
Brush plate |
1 |
|
|
57 |
999-0006
|
Washer 3/16 flat zinc plated |
1 |
|
|
N/S |
997-2102
|
Cable tie |
1 |
|
|
N/S |
272-3622
|
Ferrite bead |
1 |
(installed on main harness) |
|
N/S |
272-3623
|
Ferrite bead |
2 |
(installed on each brush drive motor) |
|
