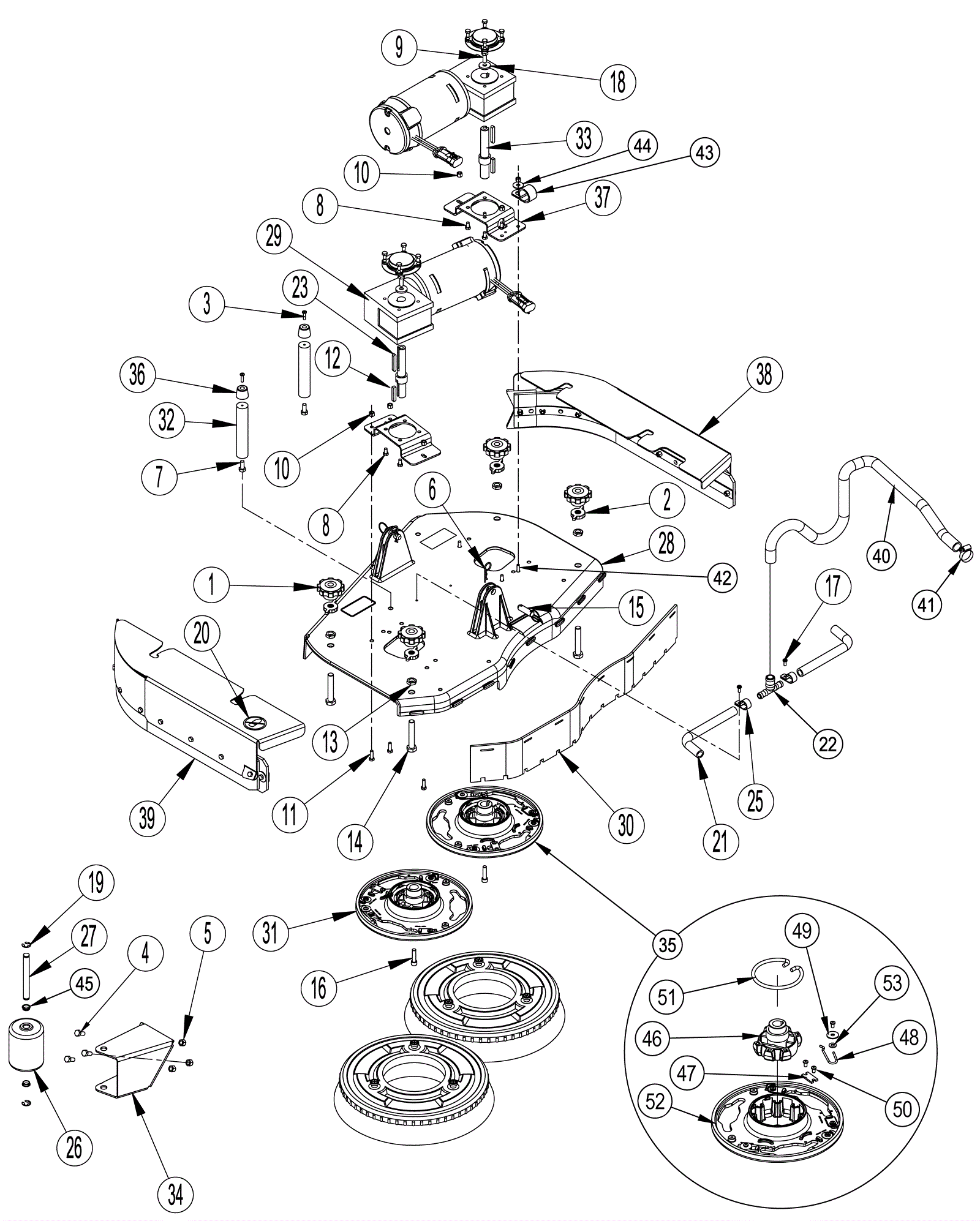

Scrub Deck Assembly - Disk - 28 inch

#PartDescription ReqNotesAvailability
1 572-9330 Knob 4 (TSBUS2010-1060)
2 172-9282 Knob 4
3 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 2
5 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 3
6a 172-2001 Hair cotter pin 2
6b 272-9987 Cotter pin 2
7 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 2
8 999-9116 Screw M6-1 x 12mm hex head stainless steel 8
9 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel 2
10 999-0497 Nut M6-1 nylon insert lock stainless steel 6
11 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 5
13 999-1377 Nut M12-1.75 hex jam 4
14 999-1349 Screw M12-1.75 x 70mm full thread hex head stainless steel 4
15 272-7255 Ring pin 2
16 272-9905 Screw 5/16-18 x 1 1/4 socket head zinc plated 2
18 172-3047 Washer 11/32 x 1/8 flat 2
19 172-0269 Retaining ring 2
21 172-9351 Spiral hose 2
22 272-3603 Barbed tee 1
23 172-3388 Square keyway 2
25 172-2542 P clamp 2
26 172-9157 Roller wheel 1
27 272-8756 Pin 1
28 272-3604 Scrub deck weldment 1
29a 272-3605 Motor gearbox assembly 2 (includes 29b-29h)
29b 272-3606 Gearbox 1
29c 172-3391 Bearing 1
29d 272-3607 Bearing 1
29f 272-3609 Square keyway 1
29g 272-3610 Brush motor cover 1
29h 272-3611 Motor fan 1
30a 272-8733 Squeegee blade 28 inch gum rubber front 1
30b 272-3600 Squeegee blade 28 inch urethane front 1 (optional)
31 272-3613 Right brush plate assembly 1 (includes 46-53)
32 272-3615 Rod 2
33 272-3616 Shaft 2
34 272-6377 Bracket 1
35 272-3618 Left brush plate assembly 1 (includes 46-53)
36 272-8773 Stop mount 2
37 272-3619 Motor bracket 2
38a 272-3602 Left skirt assembly 1
38b 472-7892 SKIRT ASSY-LEFT-28D 1
38c 472-7889 SKIRT ASSY KIT-28 IN 1 (the original skirt assemblies are no longer available. if you have a machine built prior to January 20, 2014 and you need to replace either skirt assembly, order this kit and replace as a matched pair)
39a 272-8603 Right skirt assembly 1
39b 472-7891 SKIRT ASSY-RIGHT-28-34D 1
40 272-6357 Hose 1
41 997-2005 Hose clamp 1
42 999-0518 Bolt M6-1 x 25mm hex head full thread zinc 1
43 172-9261 P clamp 1
44 272-1288 Washer 21/64-1 x 1/16 flat stainless steel 1
45 172-8919 Flanged bearing 2
46 272-7257 6 tab gimbal and collar assembly 1
47 172-0155 Stop plate 1
48 272-9883 Retainer spring 2
49 172-0553 Washer 17/64 x 1/16 flat 2
50 999-1833 Screw 10-14 x 3/8 pan head phillips stainless steel 3
51 272-9884 Brush holder spring 1
52 272-9885 Brush plate 1
53a 999-0006 Washer 3/16 flat zinc plated 1
53b 999-1862 Washer #10 flat SAE stainless steel 1
N/S 997-2102 Cable tie 1
