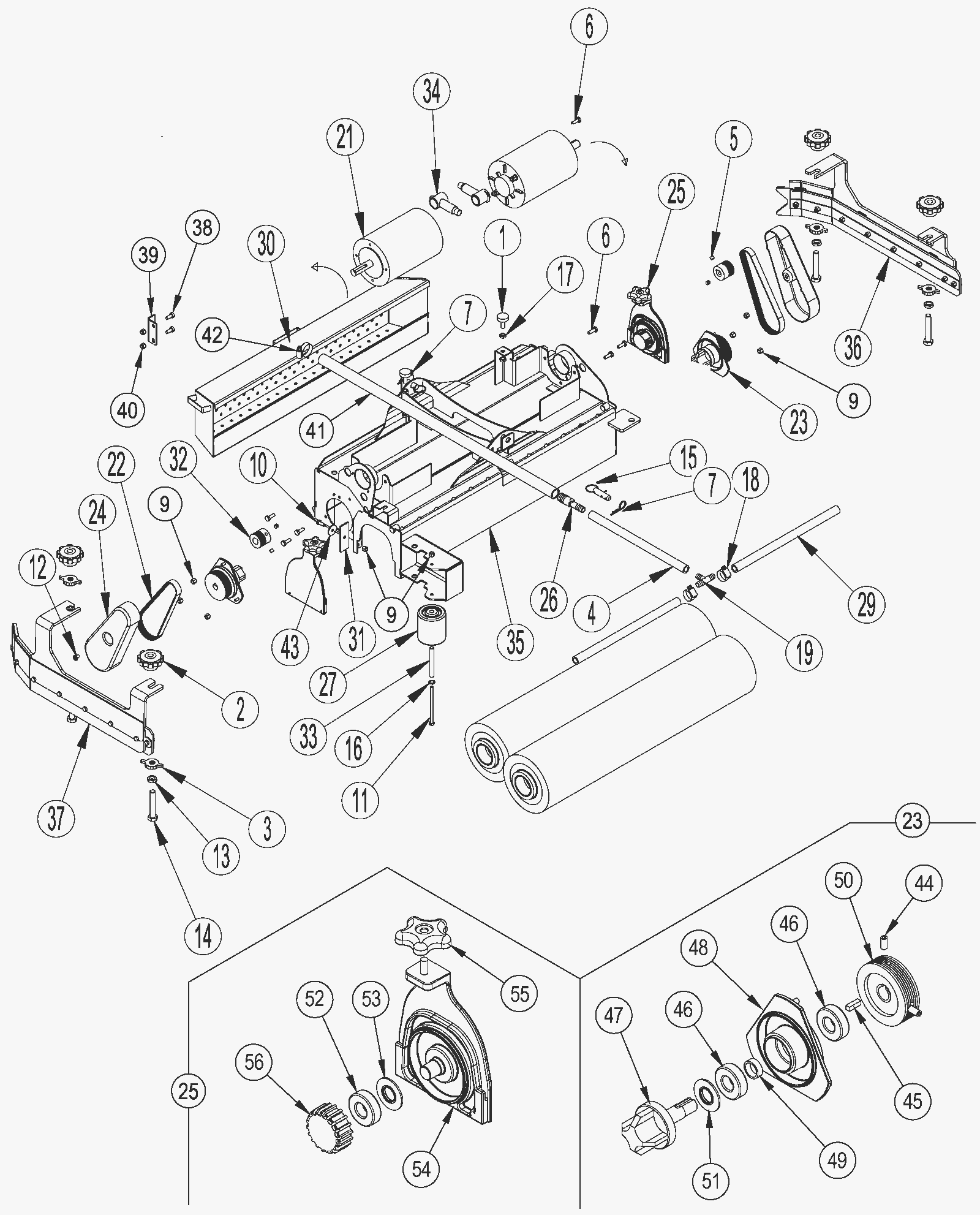

Scrub Deck Assembly - Cylindrical

#PartDescription ReqNotesAvailability
2 572-9330 Knob 4
3 172-9282 Knob 4
4 172-2815 Main solution hose 1
5 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 4
6 272-1596 Bolt 1/4-20 x 3/4 hex head lock 6
7 997-2518 Hitch pin 2
9 999-0497 Nut M6-1 nylon insert lock stainless steel 9
11 372-1626 Screw M6-1 x 95mm hex head 1
12a 272-1562 Screw 1/4-20 x 3/5 pan head thread forming 2
12b 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted 2 (after 7/2019)
13 999-1377 Nut M12-1.75 hex jam 4
14 999-1349 Screw M12-1.75 x 70mm full thread hex head stainless steel 4
15a 172-3360 Ring pin 1/2 x 1-1/4 2
15b 272-7255 Ring pin 2 (after 7/2019)
16 272-1670 Washer 3/8 bowed 2
17 999-0430 Nut 5/16-18 hex jam plain finish 4
19 172-4114 Tee barb 1
21a 272-2148 24V brush motor 2 (includes 21b-21d)
21b 172-8951 Carbon brush and spring kit 1
21c N/A Not available 4
22 272-2150 Tension belt 2
23a 172-8933 Drive end assembly 2 (includes 44-51)
23b 472-4877 DRIVE END ASSY 2 (includes 44-51) (after 7/2019)
25 172-3373 Idler end assembly 2 (includes 52-56)
26 272-2213 Coupler 1/2 x 3/4 barb 1
27 272-9393 Wheel 1
28 272-5438 Motor spacer plate (OBSOLETE) 2 (Motor spacer plate)
29 272-5415 28 inch manifold 2
30 272-3588 Hopper weldment 1
31 172-8926 Blade 2
32 172-8928 Poly-v sheave 2
33 172-8944 Bushing 1
34 172-8964 Terminal insulator 2
35 272-6346 Housing weldment 1
36 272-3590 Left side skirt assembly 1
37 272-3591 Right side skirt assembly 1
38 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
39 272-3592 Bracket 1
40 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
41a 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 1
41b 172-8496 PVC hose 1 (after 7/2019)
42 997-2005 Hose clamp 1
43 172-0548 Washer 17/64 x 47/64 flat stainless steel 2
44a 181-0003 Screw 1/4-20 x 1/2 socket set lock 2
44b 272-1454 Screw 1/4-20 X 3/8 socket set lock 2 (after 7/2019)
45 172-8956 Square keyway 1
46 172-4656 Ball bearing 2
47a 272-9347 Spindle 1
47b 472-4878 SPINDLE-LONG 1 (after 7/2019)
48 272-2169 Bearing plate 1
49 172-8957 Spacer 1
50a 172-8959 Poly-v sheave 1
50b 472-4875 SHEAVE-POLY V 1 (after 7/2019)
51 172-1837 Bearing washer 1
52 172-4656 Ball bearing 1
53 172-1837 Bearing washer 1
54 272-2170 Idler bearing plate 1
55 172-2150 Knob 1
56 172-1838 Hub 1
N/S 272-3587 Brush motor harness 2
