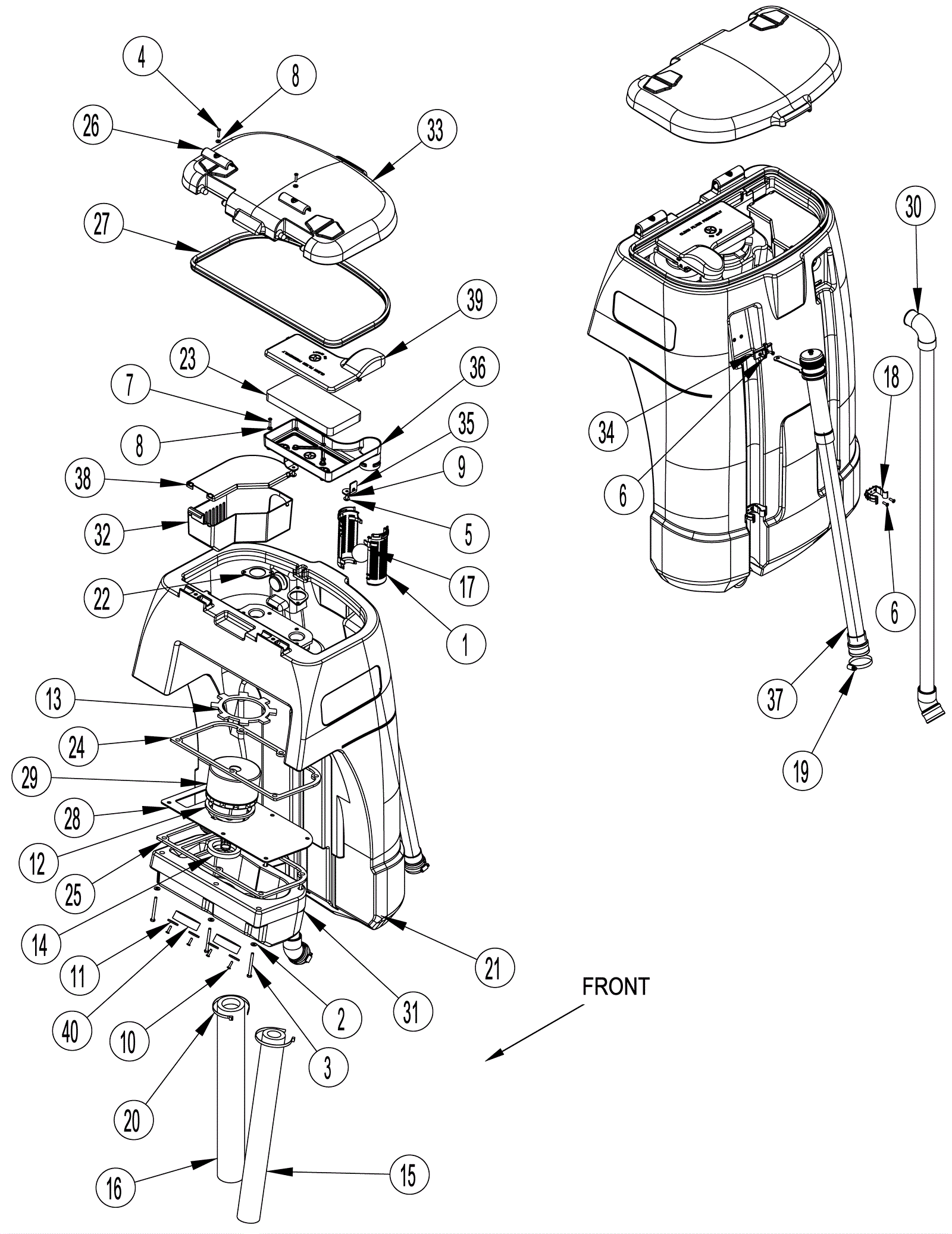

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 172-0517 Float cage half (2 required for full float cage) 2
2 999-0123 Washer 1/4 SAE flat zinc plated 6
3 999-1096 Bolt 1/4-20 x 3 hex head stainless steel 6
4 272-6339 Screw 10-24 x 8/9 pan head phillips 2
5 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
6 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 6
7 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 4
8 999-0006 Washer 3/16 flat zinc plated 6
9 272-3575 Screw 1/4-10 x 1/2 pan head phillips plastite SS 2
10 999-0898 Screw 10-16 x 3/4 pan head phillips stainless steel type B 4 (Standard, EcoFlex and REV)
11 272-6340 Washer 1 1/4 flat stainless steel 4 (Standard, EcoFlex and REV)
12 172-3263 Vacuum duct gasket 1
13 172-1356 Vac motor gasket 1
14 272-0430 Vacuum duct gasket 1
15 272-2308 Acoustic hose 1
16 272-3577 Foam tube assembly 1 (Standard, EcoFlex and REV)
17 172-0192 Float ball 1
18 272-1159 Plastic clamp 2
19 997-2003 Hose clamp 1
20 997-2102 Cable tie 2
21 272-3578 Recovery tank 1
23 272-7183 Filter 1
24 272-6341 Exhaust gasket 1
25 272-6342 Vacuum gasket 1
26 272-7242 Hinge clamp 2
27 272-6343 Recovery tank gasket 1
28 272-3580 Vacuum plate 1
29a 272-9271 Vacuum motor 1
29b 991-1221 Carbon brush without plastic cover (pkg of 2) 1
30 272-9268 Squeegee vacuum hose 1
31 272-3581 Vacuum motor cover 1
32 572-9312 Strainer basket 1 (Standard, EcoFlex and REV)
33 272-9269 Recovery tank lid 1
34 272-3583 Drain hose hook 1
35 572-9306 Filter cover strap 2
36 272-3584 Filter box 1
37 172-3352 Drain hose 1 (recovery drain hose)
38 272-3585 Debris cover 1 (Standard, EcoFlex and REV)
39 272-3576 Filter box cover with gasket 1
40 272-6344 Filter 2 (Standard, EcoFlex and REV)
