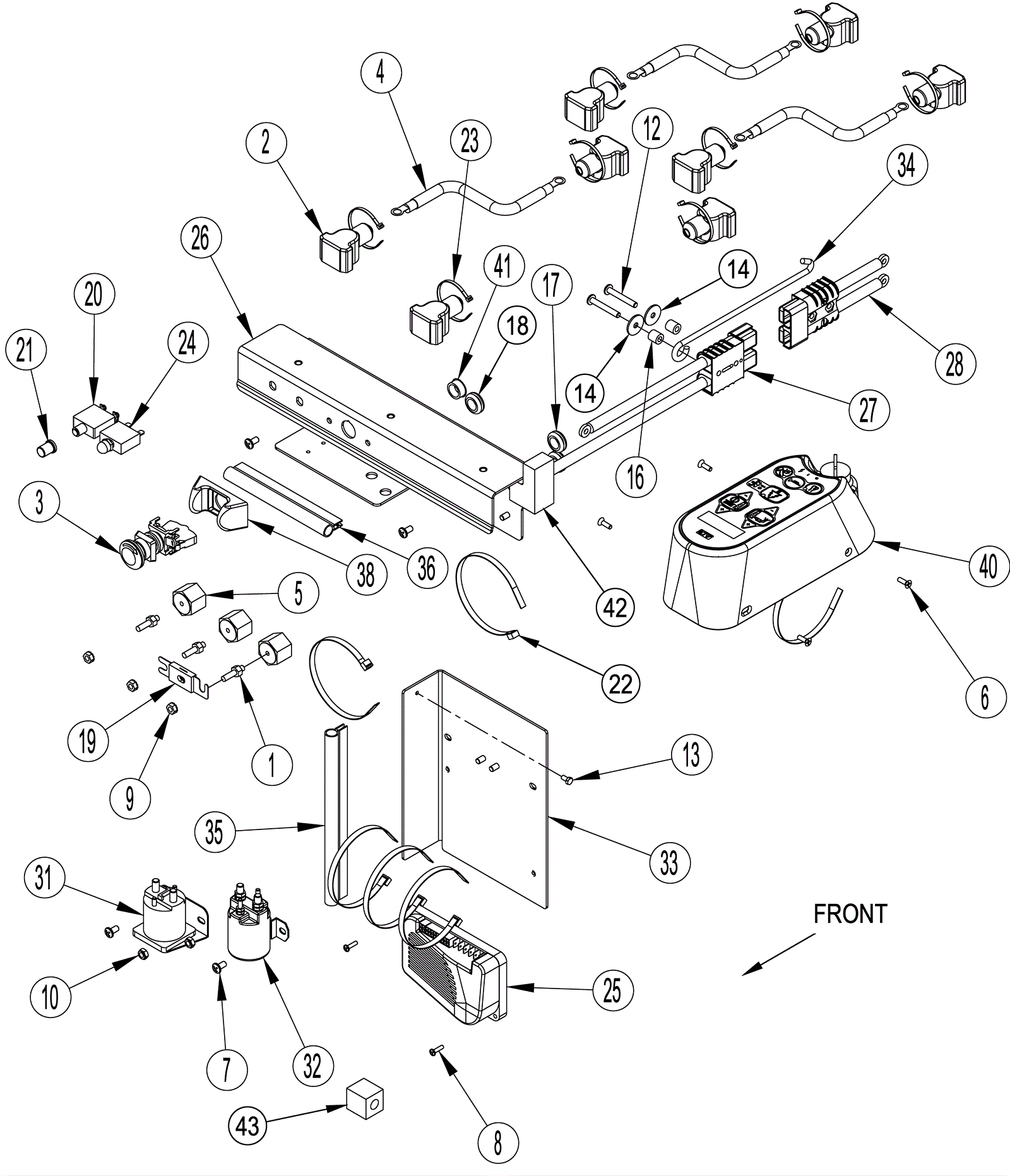

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
170-0064
|
Stud 1/4-20 |
3 |
|
|
2 |
172-0223
|
Battery cable boot |
8 |
|
|
3 |
172-9233
|
Emergency stop button |
1 |
|
|
4 |
172-8828
|
Battery cable |
3 |
|
|
5 |
172-0103
|
Electrical mount |
3 |
|
|
7a |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
4 |
|
|
7b |
999-0567
|
Screw 1/4-20 x 5/8 pan head phillips stainless steel |
4 |
(after 7/2019) |
|
8 |
999-0358
|
Screw 8-32 x 5/8 pan head phillips stainless steel |
2 |
|
|
9 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
3 |
|
|
10 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
12a |
999-1030
|
Screw 1/4-20 x 2 pan head phillips stainless steel |
2 |
|
|
12b |
999-0599
|
Screw 1/4-20 x 1 3/4 pan head phillips stainless steel |
2 |
(after 7/2019) |
|
13 |
999-0793
|
Screw 10-24 x 3/8 hex washer slot thread cutting zinc |
1 |
|
|
14 |
172-0548
|
Washer 17/64 x 47/64 flat stainless steel |
2 |
|
|
16 |
181-0421
|
Spacer |
2 |
|
|
17 |
172-0343
|
Grommet |
2 |
|
|
18a |
172-1228
|
Grommet |
1 |
(Standard, EcoFlex and REV) |
|
18b |
172-0343
|
Grommet |
1 |
(ST) |
|
19a |
172-8836
|
150amp fuse |
1 |
|
|
19b |
991-3061
|
150amp fuse |
1 |
|
|
20 |
172-2523
|
70amp circuit breaker |
1 |
|
|
21 |
172-0232
|
Clear boot cap |
1 |
|
|
22 |
997-2102
|
Cable tie |
9 |
|
|
23 |
997-2101
|
6 inch cable tie |
9 |
|
|
24 |
272-9374
|
10amp circuit breaker |
1 |
|
|
25a |
272-3514
|
Speed control |
1 |
|
|
25b |
272-6348
|
Speed control |
1 |
(REV) |
|
26a |
272-6349
|
Panel |
1 |
(Standard, EcoFlex and REV) |
|
26b |
272-3567
|
Panel |
1 |
(ST) |
|
27 |
272-8791
|
Connector assembly |
1 |
|
|
28 |
272-8792
|
Connector assembly |
1 |
|
|
33 |
272-3570
|
Panel |
1 |
|
|
34 |
272-8795
|
Seat rod |
1 |
|
|
35 |
272-8796
|
Gasket |
1 |
|
|
36 |
272-8797
|
Gasket |
1 |
|
|
38 |
272-8799
|
Emergency button guard |
1 |
|
|
40a |
272-3571
|
Interface panel assembly (OBSOLETE) |
1 |
(includes 40d, 40g and 40h) (Standard and EcoFlex) |
|
40b |
272-7195
|
Interface panel assembly |
1 |
(includes 40e, 40g and 40h) (ST) |
|
40d |
272-3572
|
Interface panel kit |
1 |
(Standard and EcoFlex) |
|
40e |
272-3573
|
Interface panel kit |
1 |
(ST) |
|
40f |
272-6351
|
Interface panel kit |
1 |
(REV) |
|
40g |
272-2195
|
Key switch assembly |
1 |
|
|
40i |
372-1633
|
Interface panel assembly |
1 |
(REV) (includes 40f, 40g and 40h) (after 7/2019) |
|
41 |
172-2306
|
Cap plug |
1 |
|
|
42 |
272-8800
|
Foam insert |
1 |
|
|
43 |
272-3574
|
Suppressor split |
1 |
|
|
N/S |
272-3569
|
Main harness |
1 |
(ST) |
|
N/S |
272-6625
|
Traction harness |
1 |
|
|
N/S |
272-8798
|
Cable assembly |
1 |
|
|
