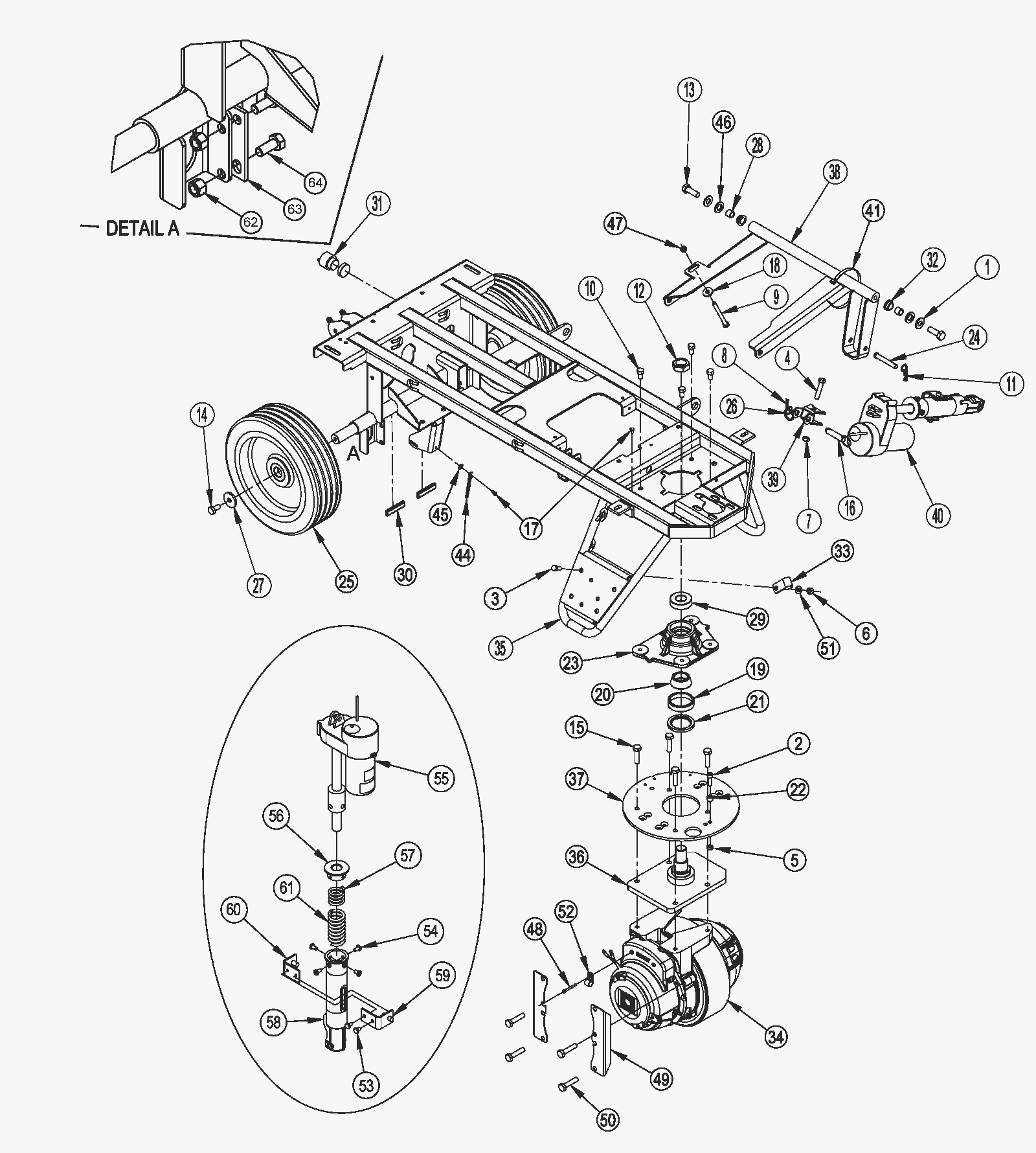

Chassis Assembly - Standard, Ecoflex and REV

#PartDescription ReqNotesAvailability
1 999-0114 Washer 1/2 SAE flat 2
2a 999-0546 Screw 5/16-18 x 1 socket head alloy plain finish 1 (Standard and Ecoflex)
2b 999-0546 Screw 5/16-18 x 1 socket head alloy plain finish 2 (REV)
3b 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel 1 (after 3/2018)
4a 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated 1
5a 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1 (Standard and Ecoflex)
5b 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2 (REV)
6a 999-0423 Nut 5/16-18 nylon insert lock stainless steel 1
7 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 1
8 172-2001 Hair cotter pin 1
9 172-4367 Screw 5/16 x 18 x 3 1/2 thread to head hex 1
11 997-2511 Cotter pin 1
13 999-1128 Bolt M12-1.75 x 35mm hex hd stainless steel part thread 2
14 272-1605 Bolt M10-1.5 x 20mm hex head nylon lock 2
15 272-1624 Bolt M10-1.5 x 40mm hex 4
16 272-2115 Clevis pin 1
17 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc 2
18 172-2067 Washer 11/32 x 1/8 flat 1
19 172-3315 Bearing cup 1
20 172-3316 Bearing cone 1
21 172-3317 Seal 1
22a 172-0068 Bushing 1 (Standard and Ecoflex)
22b 172-0068 Bushing 2 (REV)
23 172-3319 Bearing block 1
24 272-3546 Clevis pin 1
26 272-9308 Ring 1
27 272-1606 Washer flat 2
28 172-0024 Bushing 2
29 172-0435 Top bearing 1
30 172-8803 Edge trim 2
31 172-8839 Backup alarm 1
32 272-1843 Flanged bearing 2
33 172-8870 P clamp 1
34a 272-8807 Drive wheel motor 1 (includes 34b-34j)
34d 272-8810 Carbon brush kit 1
34e 272-8809 Tire 1
34f 272-8811 Parking brake 1
34g 272-8604 Tire puller kit 1
34h 272-8598 Drive motor cover 1
34i 272-8597 Gearbox motor cover 1
34j 272-8813 Brake lever kit 1
35a 272-6330 Chassis weldment 1 (Standard and Ecoflex)
36 272-8814 Spindle weldment 1
37 172-3320 Steering plate 1
38a 272-3549 Linkage weldment 1 (Standard and Ecoflex)
38b 272-6332 Linkage weldment 1 (REV)
39 272-3550 Actuator yoke 1
40a 272-3551 Lift actuator assembly 1 (Standard and Ecoflex) (M4)
40b 272-6333 Lift actuator assembly 1 (M4/REV)
41 997-2102 Cable tie 1
44 272-8757 Ground chain 1
45 999-0053 Washer #10 split lock plain finish 1
46 172-0263 Washer flat rubber 2 (REV only)
47b 999-0430 Nut 5/16-18 hex jam plain finish 2 (REV)
48 172-4211 Screw M4 x 40 cylinder head stainless steel 1
49 272-6334 Wheel bracket 2
50 272-1612 Bolt 10mm-1.50 x 45mm hex nylon locking 4
51a 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
51b 999-0024 Washer 5/16 flat stainless steel 1
53 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted 2
54 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 4
55a 172-8921 Actuator 1 (Standard and Ecoflex)
55b 172-8921 Actuator 2 (REV)
56 272-8539 Spring housing guide 1
58 172-8952 Spring housing 1
59 172-8954 Nut retainer 1
60 172-8955 Nut retainer 1
61 272-3552 Compression spring 1
62 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
63 272-3592 Bracket 1
64 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel 2
