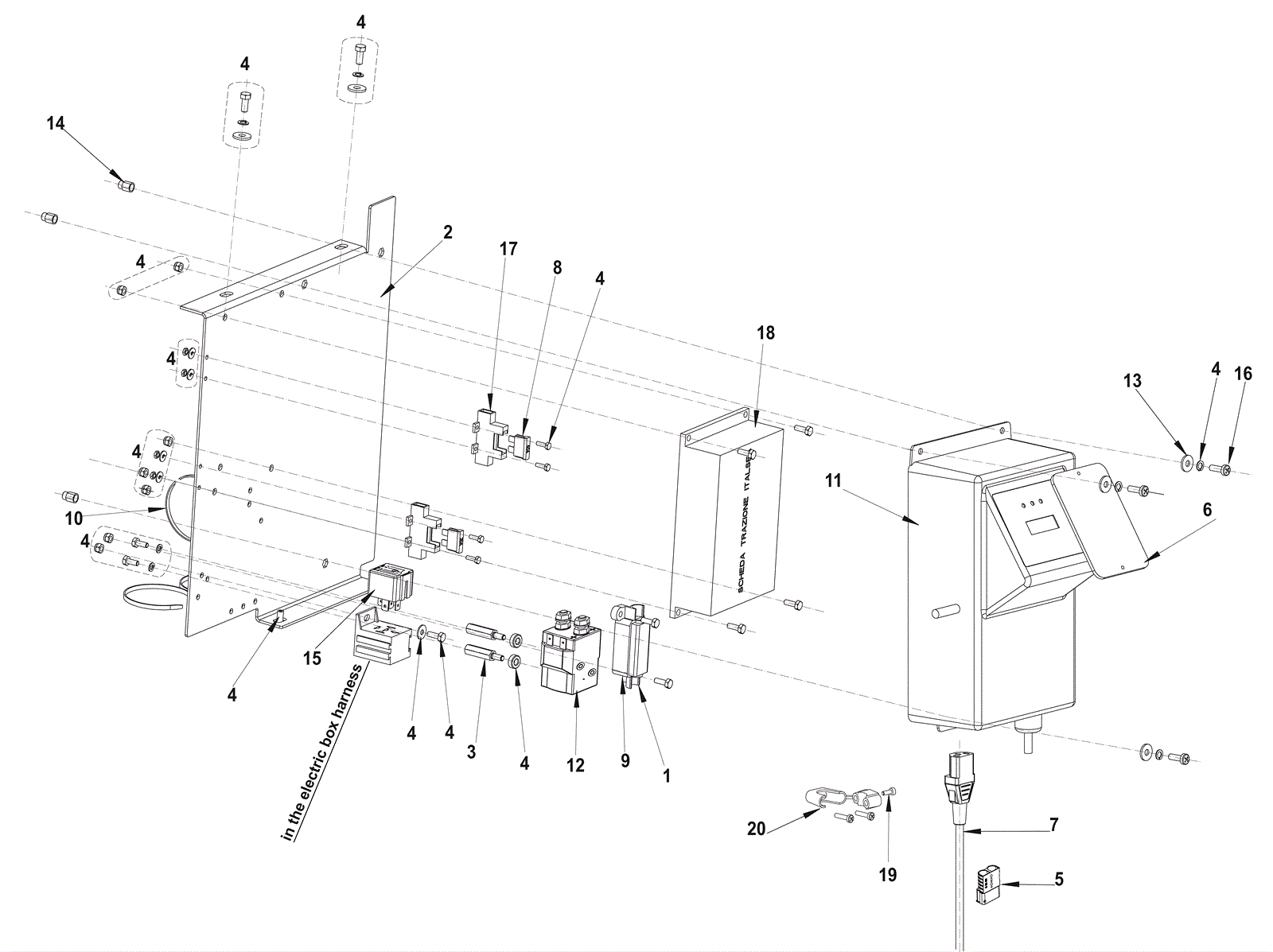

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
181-0966
|
Fuse holder |
1 |
|
|
2 |
272-3770
|
Support |
1 |
|
|
3 |
272-9277
|
Spacer |
2 |
|
|
4 |
272-6326
|
Electrical hardware kit |
1 |
|
|
5 |
272-8374
|
120amp connector (red) |
1 |
|
|
6 |
272-0640
|
Inspection plate |
1 |
|
|
7 |
272-9290
|
Onboard charger cord |
1 |
|
|
8 |
272-7144
|
30amp fuse |
2 |
|
|
9 |
272-6292
|
40amp brush fuse strip |
1 |
|
|
10 |
272-8376
|
Wire tie |
3 |
|
|
11 |
272-8144
|
24V onboard battery charger |
1 |
|
|
12 |
272-6328
|
24V electromagnetic switch |
1 |
|
|
13 |
172-3762
|
Washer 6 X 12 1/2 flat (OBSOLETE) |
3 |
|
|
14 |
272-9283
|
Insert M5 |
3 |
|
|
15 |
272-9288
|
24V relay |
1 |
|
|
16 |
272-9291
|
Screw M5 X 20 |
3 |
|
|
17 |
472-1367
|
HOLDER FUSE THERMOPL. UL 94-V0 |
2 |
|
|
18 |
272-7389
|
Electronic card traction kit |
1 |
|
|
19 |
272-9293
|
Screw M4 x 12mm |
1 |
|
|
20 |
272-9292
|
Cord holder |
1 |
|
|
NS |
172-0223
|
Battery cable boot |
4 |
|
|
NS |
272-9289
|
Electrical box harness |
1 |
|
|
NS |
272-6329
|
Machine harness |
1 |
|
|
NS |
272-5392
|
Vacuum cleaner harness |
1 |
|
|
NS |
270-0606
|
Battery harness |
1 |
|
|
