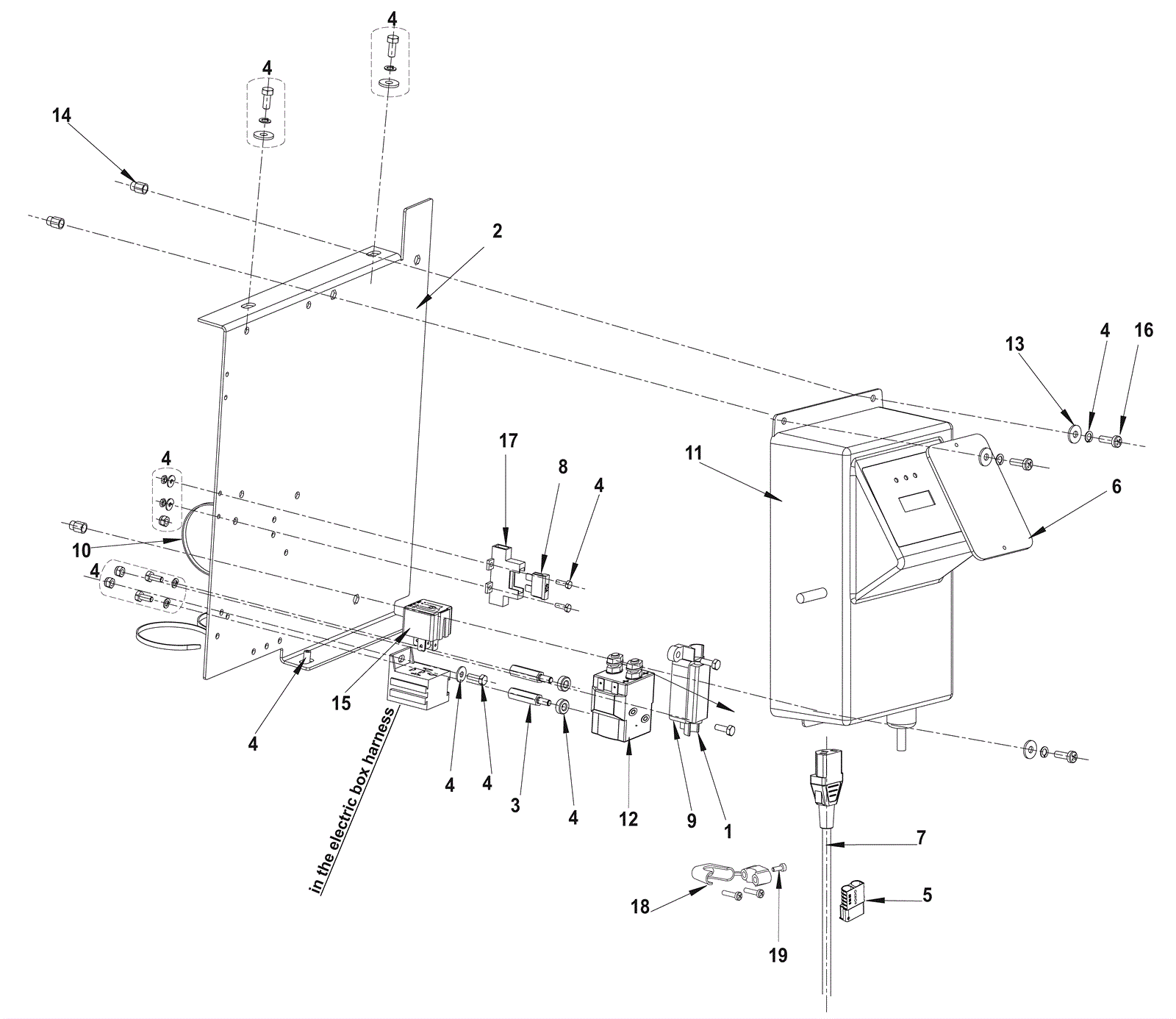

RAZOR 20 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 181-0966 Fuse holder $34.23 1 usually ships 13-18 days
2 272-3770 Support $56.65 1 usually ships 1-5 days
3 272-9277 Spacer $6.85 2 ships same day
4 272-6326 Electrical hardware kit $129.61 1 usually ships 1-5 days
5 272-8374 120amp connector (red) $93.17 1 usually ships 13-18 days
6 272-0640 Inspection plate $20.91 1 usually ships 13-18 days
7 272-9290 Onboard charger cord $29.99 1 ships same day
8 272-7144 30amp fuse $12.89 1 usually ships 13-18 days
9 272-6292 40amp brush fuse strip $12.89 1 ships same day
10 272-8376 Wire tie $12.89 3 usually ships 1-5 days
11 272-8144 24V onboard battery charger $489.80 1 usually ships 13-18 days
12 272-6327 24V electromagnetic switch $109.53 1 usually ships 5-7 days
13 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) $7.59 3 usually ships 1-5 days
14 272-9283 Insert M5 $13.78 3 usually ships 1-5 days
15 272-9288 24V relay $37.27 1 usually ships 13-18 days
16 272-9291 Screw M5 X 20 $12.89 3 usually ships 1-5 days
17 472-1367 HOLDER FUSE THERMOPL. UL 94-V0 $40.44 2 usually ships 13-18 days
18 272-9292 Cord holder $12.71 1 usually ships 13-18 days
19 272-9293 Screw M4 x 12mm $6.51 1 usually ships 1-5 days
NS 172-0223 Battery cable boot $9.70 4 ships same day
NS 272-5390 Electric box harness (OBSOLETE) $232.65 1 usually ships 1-5 days
NS 272-5391 Machine harness $194.27 1 usually ships 1-5 days
NS 272-5392 Vacuum cleaner harness $96.09 1 usually ships 1-5 days
NS 270-0606 Battery harness $302.29 1 usually ships 13-18 days
