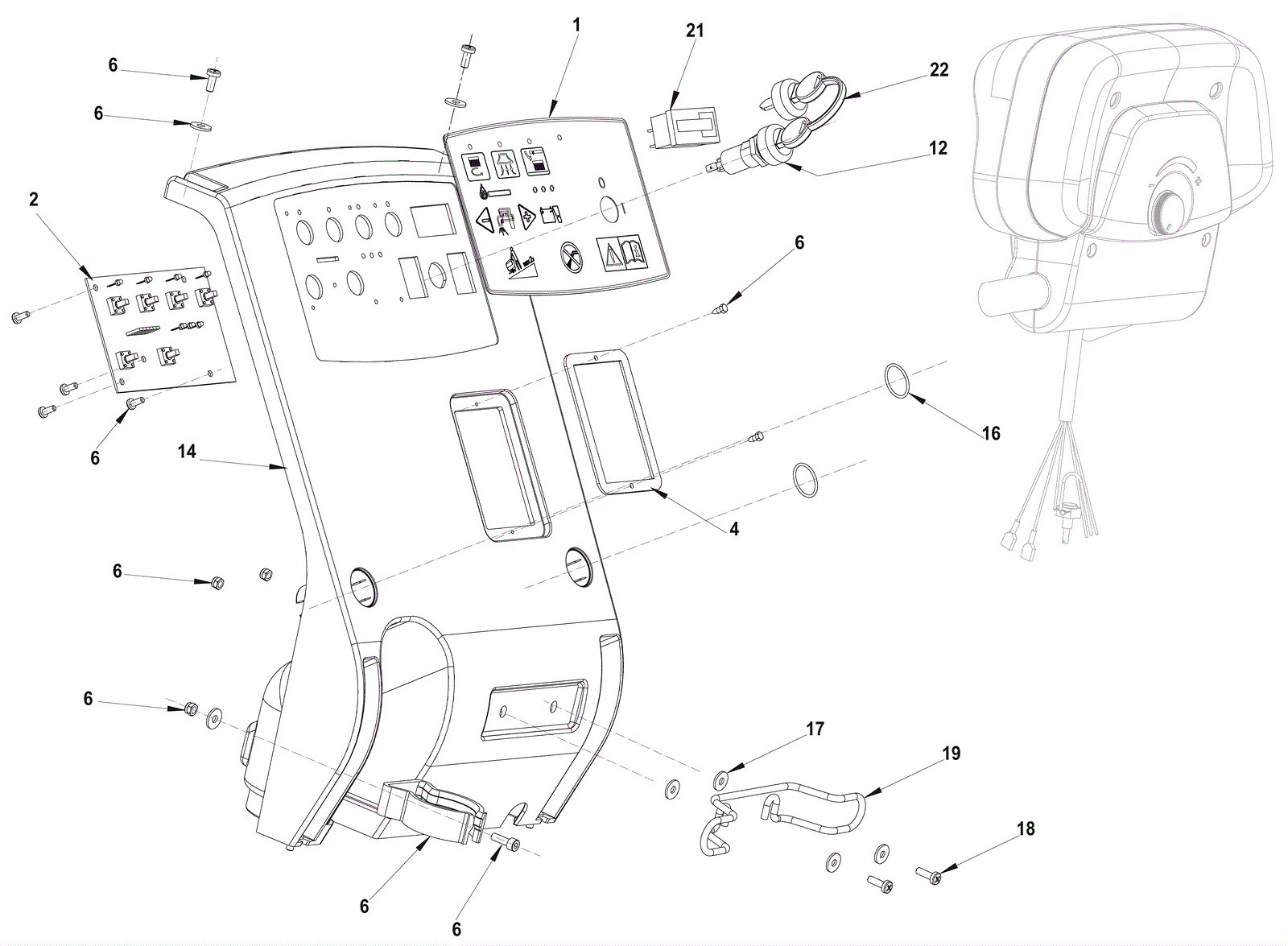

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-6325
|
Control panel decal (OBSOLETE) |
1 |
|
|
2 |
172-4854
|
Electronic control panel card |
1 |
|
|
4 |
172-4856
|
Gasket |
1 |
|
|
6 |
272-6324
|
Control panel hardware kit |
1 |
|
|
12a |
172-3785
|
Key switch with two keys |
1 |
|
|
12b |
991-1634
|
Key (pkg of 2) |
1 |
|
|
14 |
272-7317
|
Control panel cover |
1 |
|
|
16 |
172-4862
|
O-ring |
2 |
|
|
17 |
999-9100
|
Washer M5 flat stainless steel |
4 |
|
|
18 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
2 |
|
|
19 |
272-0659
|
On-board charger cord wrap |
1 |
|
|
21 |
272-9274
|
24V hour meter |
1 |
|
|
NS |
272-9276
|
20amp fuse |
1 |
|
|
