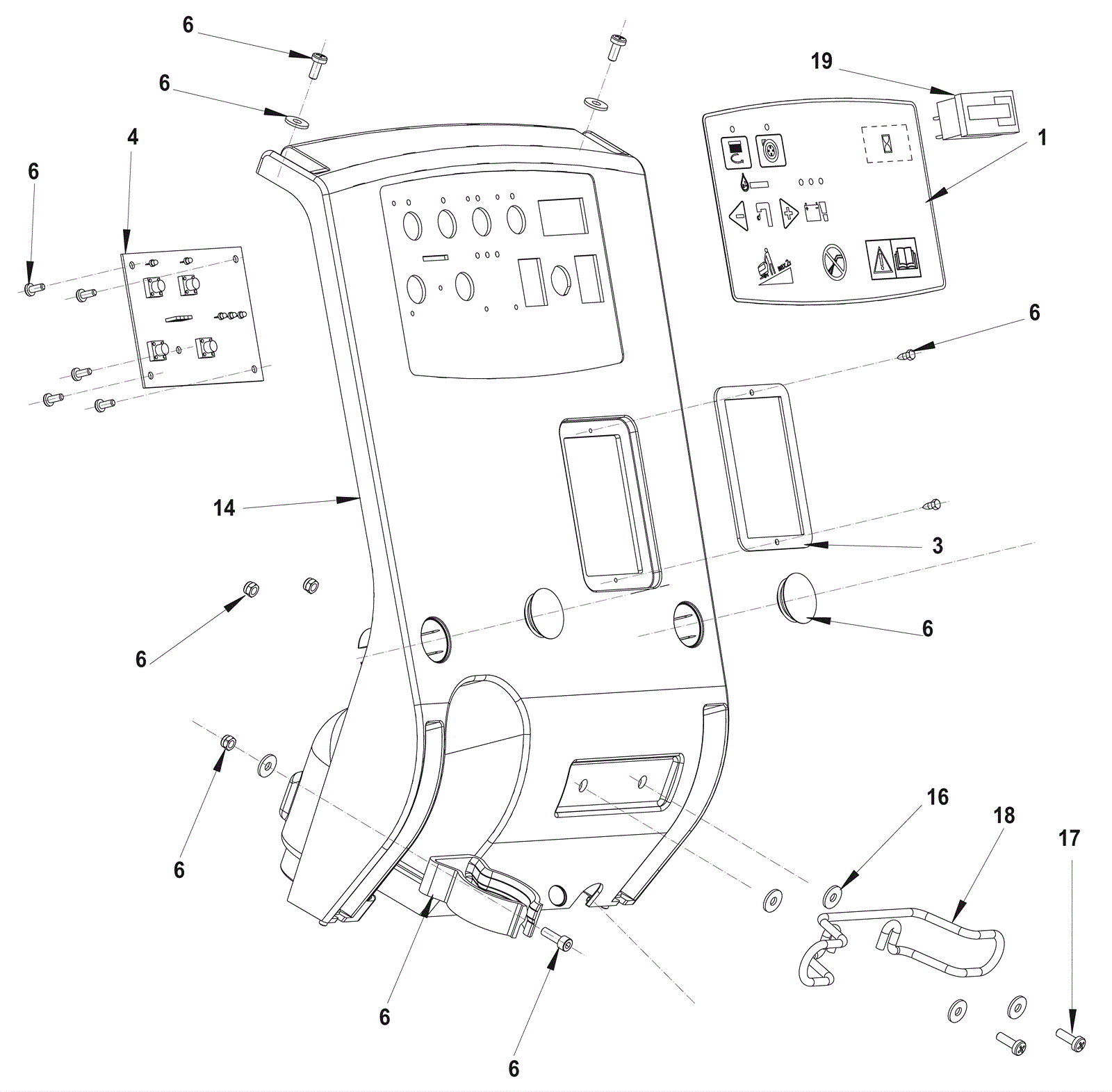

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
272-5584
|
Control panel decal |
$40.15
|
1 |
|
usually ships 13-18 days |
3 |
172-4856
|
Gasket |
$22.58
|
1 |
|
usually ships 13-18 days |
4 |
272-8546
|
Control panel |
$225.10
|
1 |
|
usually ships 13-18 days |
6 |
272-6324
|
Control panel hardware kit |
$28.94
|
1 |
|
usually ships 13-18 days |
14 |
272-7317
|
Control panel cover |
$208.89
|
1 |
|
usually ships 13-18 days |
16 |
999-9100
|
Washer M5 flat stainless steel |
$5.83
|
4 |
|
ships same day |
17 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
$0.99
|
2 |
|
ships same day |
18 |
272-0659
|
On-board charger cord wrap |
$5.50
|
1 |
|
ships same day |
19 |
272-9274
|
24V hour meter |
$192.54
|
1 |
|
usually ships 13-18 days |
NS |
572-3491
|
FUSE BLADE 3A PKD |
$19.25
|
1 |
|
usually ships 13-18 days |
