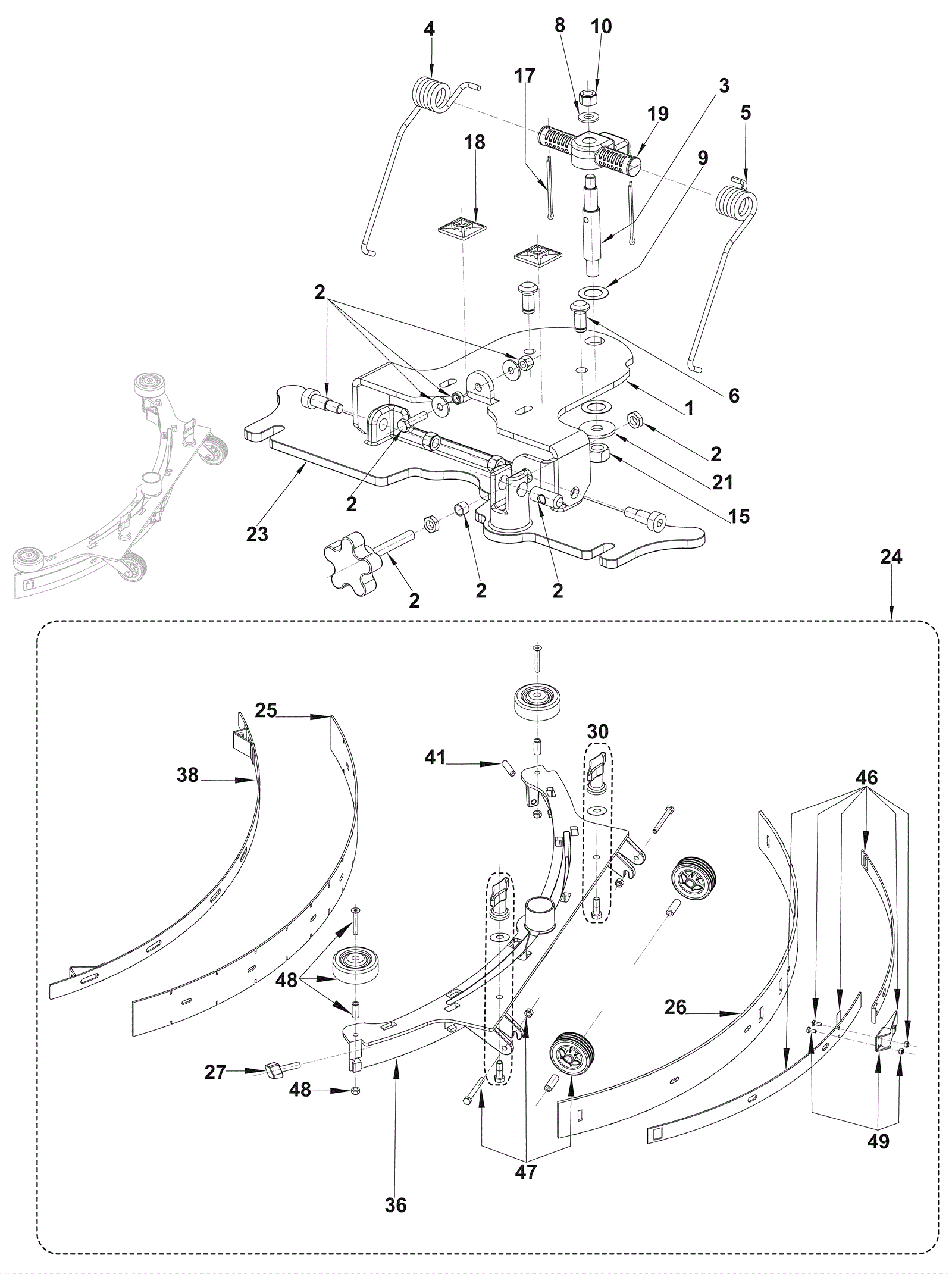

RAZOR 20 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-4774 Squeegee support bracket $157.99 1 ships same day
2 172-4796 Hardware fixing kit $222.53 1 ships same day
3 270-0395 Squeegee pin $13.17 1 ships same day
4 172-4776 Right hand squeegee torsion spring $13.17 1 ships same day
5 172-4777 Spring $13.17 1 ships same day
6 270-0398 Squeegee fixing pin $13.17 2 ships same day
8 999-1267 Washer M8 flat zinc $0.99 1 ships same day
9 272-2000 Washer M15 x 25mm plain nylon $10.85 2 ships same day
10 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 3 ships same day
15 172-4782 Nut M10 self locking $12.31 1 ships same day
17 270-0399 Split pin $10.85 2 ships same day
18 172-4784 Wire tie holder $10.85 2 ships same day
19 270-0114 Spring support $6.22 1 ships same day
21 999-9099 Washer M10 flat stainless steel $0.99 1 ships same day
23 272-7000 Squeegee mounting bracket kit $147.59 1 ships same day
24 272-7162 Squeegee kit $658.46 1 (includes 25-49) ships same day
25 272-2026 Squeegee blade kit gum rubber $48.50 1 ships same day
26 272-2026 Squeegee blade kit gum rubber $48.50 1 ships same day
27 272-8529 Knob M8 x 30mm stainless steel $24.60 1 ships same day
30 272-6579 Squeegee fixing kit $34.87 1 ships same day
36 172-4788 Squeegee weldment $221.66 1 ships same day
38 172-4789 Front squeegee strap $46.00 1 ships same day
41 172-4790 Dowel M8 x 30mm $13.17 1 usually ships 17-28 days
46 172-4792 Rear squeegee strap and hardware kit $169.11 1 ships same day
47 172-4793 Squeegee wheel kit $118.65 2 usually ships 17-28 days
48 172-4794 Squeegee bumper wheel kit $101.56 2 ships same day
49 172-4795 Squeegee latch kit $87.54 1 ships same day
NS 272-2026 Squeegee blade kit gum rubber $48.50 1 ships same day
NS 272-6320 Squeegee adjustment washer kit $21.57 1 usually ships 17-28 days
