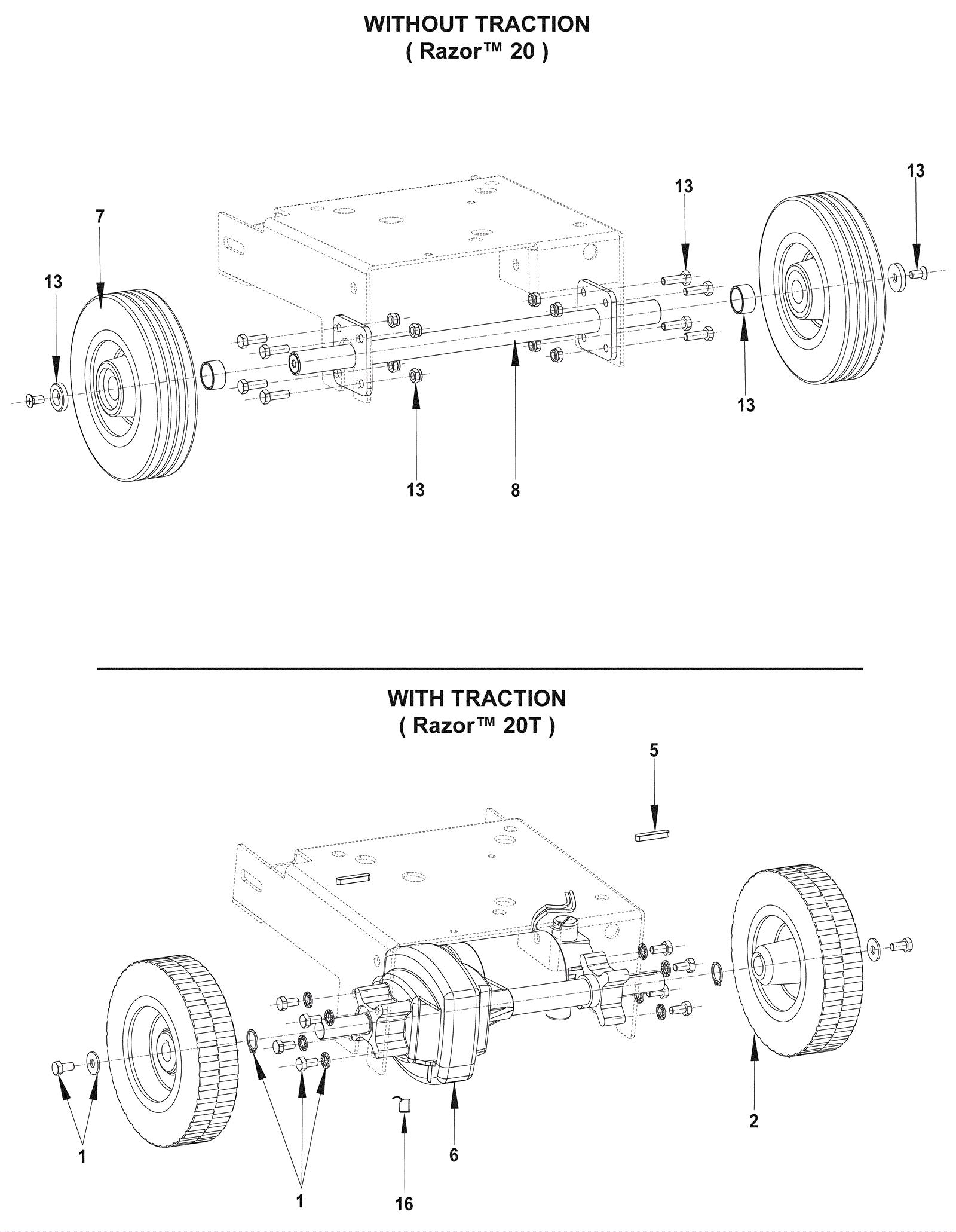

Wheel Assembly

#PartDescription ReqNotesAvailability
1 272-6312 Drive wheel hardware kit 1
2 272-6313 Front wheel (OBSOLETE) 2
5 172-4750 Square keyway 2
6 172-4753 24V transaxle 1
8 272-5377 Wheel shaft 1
13 272-6316 Wheel hardware kit 1
