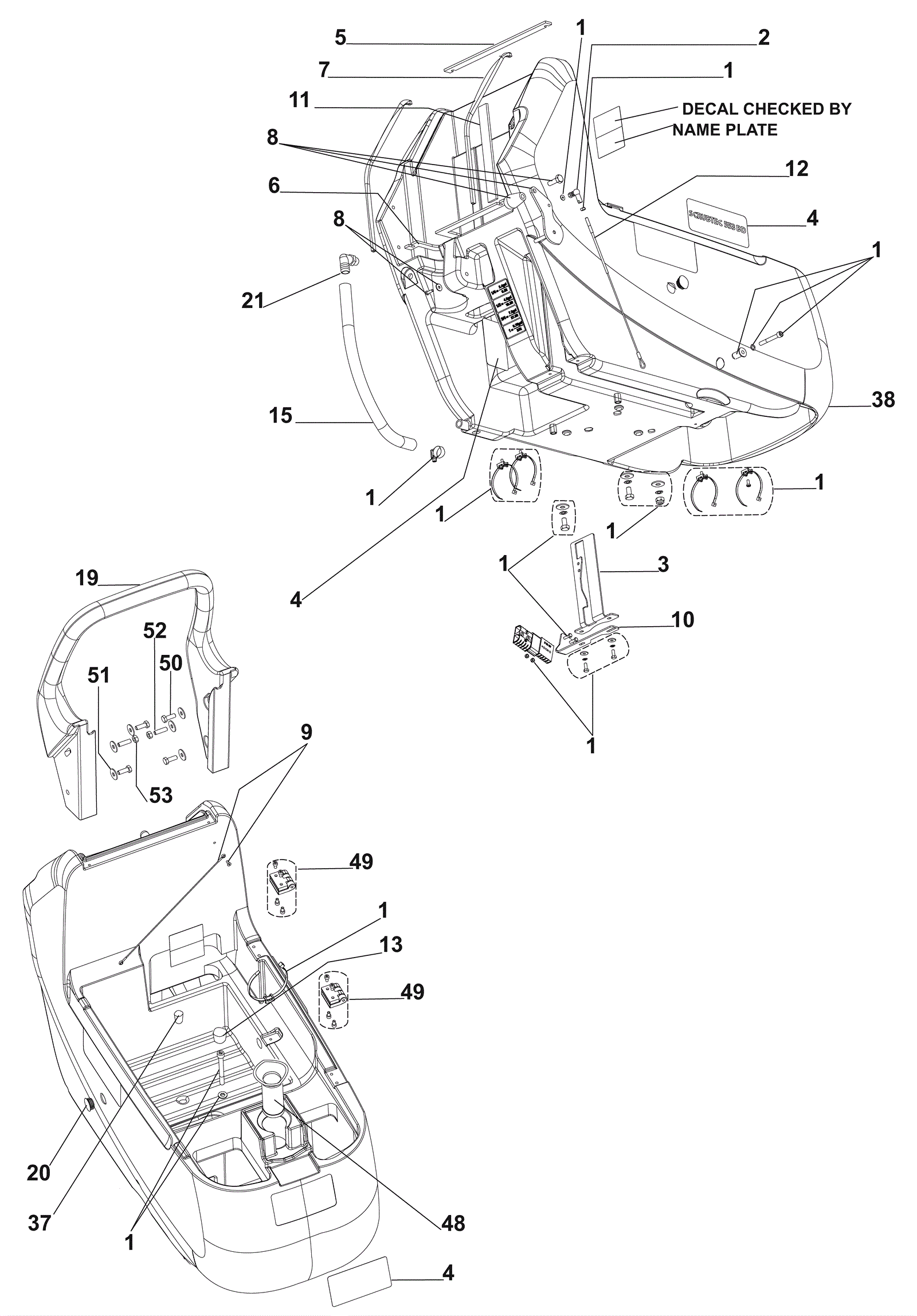

RAZOR 20 Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-8941 Solution tank hardware kit $275.91 1 usually ships 17-28 days
2 272-7164 Elbow joint $24.60 1 ships same day
3 172-4689 Pedal support $52.67 1 usually ships 1-5 days
4 N/A Not available Call for price (Decal kit) usually ships 3-26 days
5 172-4694 Gasket $12.31 1 usually ships 17-28 days
6 172-4696 Gasket $12.31 1 usually ships 1-5 days
7 172-4697 Gasket $12.31 2 usually ships 1-5 days
8 272-0005 Squeegee lever fixing kit $80.16 1 usually ships 17-28 days
9 172-4714 Cable kit $126.03 1 usually ships 17-28 days
10 272-6300 Bracket support (OBSOLETE) $28.38 1 usually ships 1-5 days
11 272-6301 Handle bar gasket $8.83 1 usually ships 1-5 days
12 272-7163 Cable kit $88.99 1 usually ships 17-28 days
13 172-4706 Plug $12.31 1 usually ships 17-28 days
15 272-6302 Fresh water hose (OBSOLETE) $16.28 1 usually ships 17-28 days
19 N/A Not available Call for price (Handle) usually ships 3-26 days
20 172-4695 Locking tank cap $16.95 2 usually ships 17-28 days
21 572-3422 FITTING M 3/8-18 NPT HOSE D.19 $9.26 1 usually ships 17-28 days
37 172-4699 Cap (black) $10.85 1 usually ships 17-28 days
38 272-6304 Solution tank (OBSOLETE) $871.09 1 usually ships 1-5 days
48 272-6305 Water inlet filter $10.85 1 usually ships 17-28 days
49 272-6306 Hinge kit $136.44 1 usually ships 17-28 days
50 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 4 ships same day
51 999-1267 Washer M8 flat zinc $0.99 6 ships same day
52 270-0383 Screw M8-1.25 x 30mm grub (OBSOLETE) $6.29 2 usually ships 1-5 days
53 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 2 ships same day
