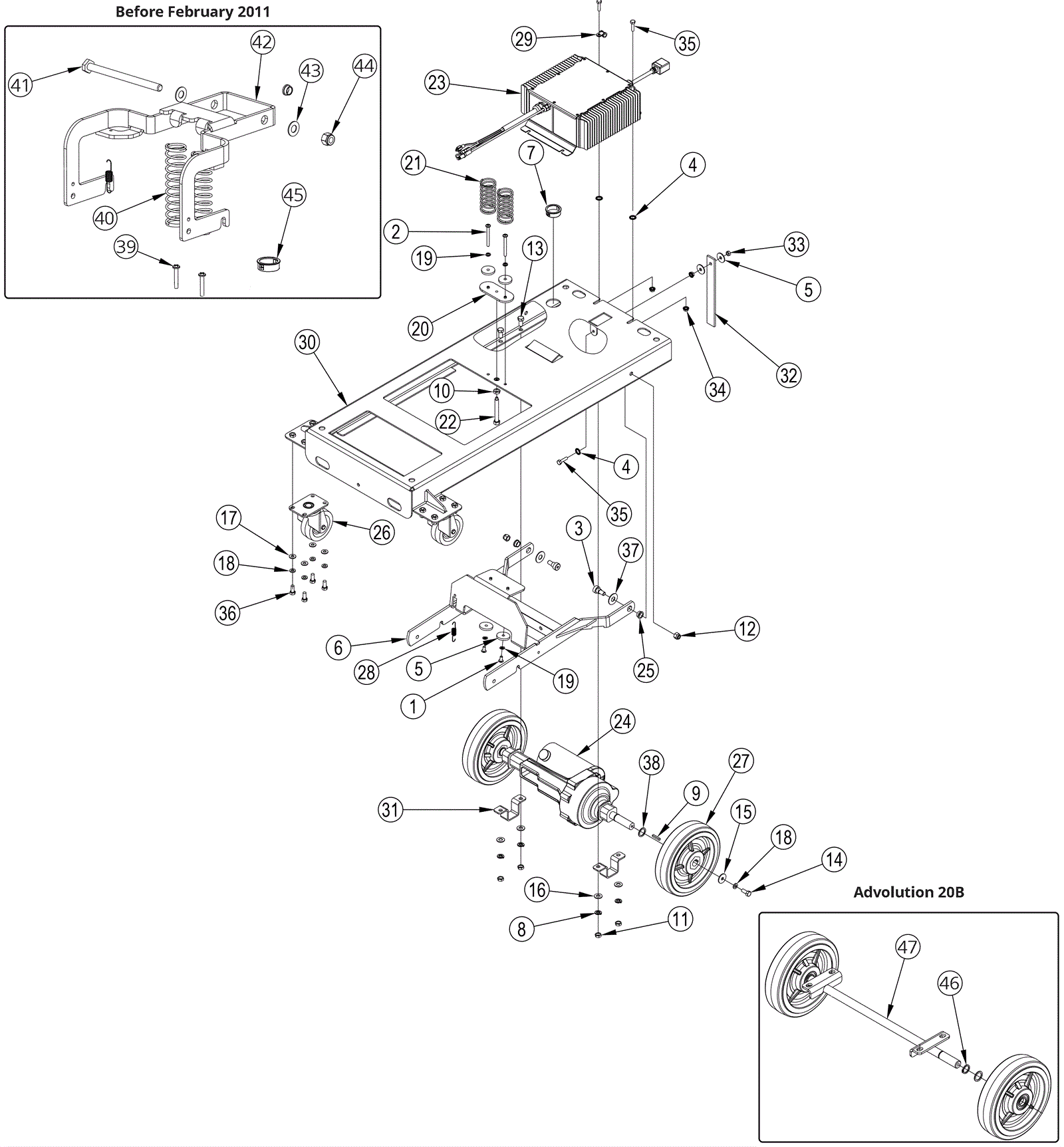

Frame Assembly

#PartDescription ReqNotesAvailability
1 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 2 (after 02/2011)
2 999-0610 Screw 1/4-20 x 2 1/2 pan head phillips stainless steel 2 (after 02/2011)
3 999-0590 Screw 3/8-16 x 1/2 socket head shoulder 2 (after 02/2011)
4 172-0814 Washer 10M serrated external stainless steel 3
5 272-9952 Seat spring 4 (after 02/2011)
6 172-0815 Lift weldment 1 (after 02/2011)
7 272-8466 Insulating bushing 1 (after 02/2011)
8 999-0659 Washer 3/8 medium split lock stainless steel 4
9 170-1679 Square keyway 2
10 999-0247 Nut 3/8-16 hex jam plain finish 1
11 999-0170 Nut 3/8-16 hex plain finish 4
12 999-0170 Nut 3/8-16 hex plain finish 2 (after 02/2011)
13 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 4
14 999-1186 Screw 5/16-24 x 3/4 hex head 2
15 999-1364 Washer 5/16 x 1 fender zinc finish 4
16 999-0032 Washer 3/8 USS flat plain finish 4
17 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 8
18 999-0028 Washer 5/16 split lock plain finish 10
19 999-0060 Washer 1/4 split lock plain finish 4
20 172-0816 Spring base plate 1
21 272-9953 Compression spring 2 (after 02/2011)
22a 172-0818 Pressure adjustment screw 1 (after 02/2011)
22b 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 1 (before 02/2011)
23 272-2224 36V onboard battery charger 1
24 270-0631 36V transaxle 1
25 272-8469 Nominal bushing 2
26 272-8474 3 1/2 inch swivel caster 2
27 270-0099 8 inch wheel 2
28 272-8467 Extension spring 1
29 272-8471 P clamp 1
30 N/A Not available 1 (mainframe)
31 170-1323 Clamp 2
32 170-7146 Static strap 1
33 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 1
34 999-0595 Nut 1/4-20 flange lock serrated zinc plated 3
35 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish 3
36 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 8
37 170-6124 Washer flat nylon 2 (after 02/2011)
38 170-1754 Washer M1 flat nylon 2
39 999-0398 Screw 1/4-20 x 1 1/2 pan head phillips zinc plated 2 (before 02/211)
40 272-7423 Compression spring (OBSOLETE) 2 (before 02/211)
41 999-0351 Bolt 1/2-13 x 7 hex head grade 5 zinc plated 1 (before 02/211)
42 272-8468 Head lifting weldment 1 (before 02/211)
43 170-5602 Washer 2 (before 02/211)
44 999-0118 Nut 1/2-13 nylon insert lock zinc plated 1 (before 02/211)
45 272-8466 Insulating bushing 1 (before 02/211)
46 170-1324 Snap ring (Advolution 20B)
47 272-8473 Non-traverse axle weldment 1 (Advolution 20B)
