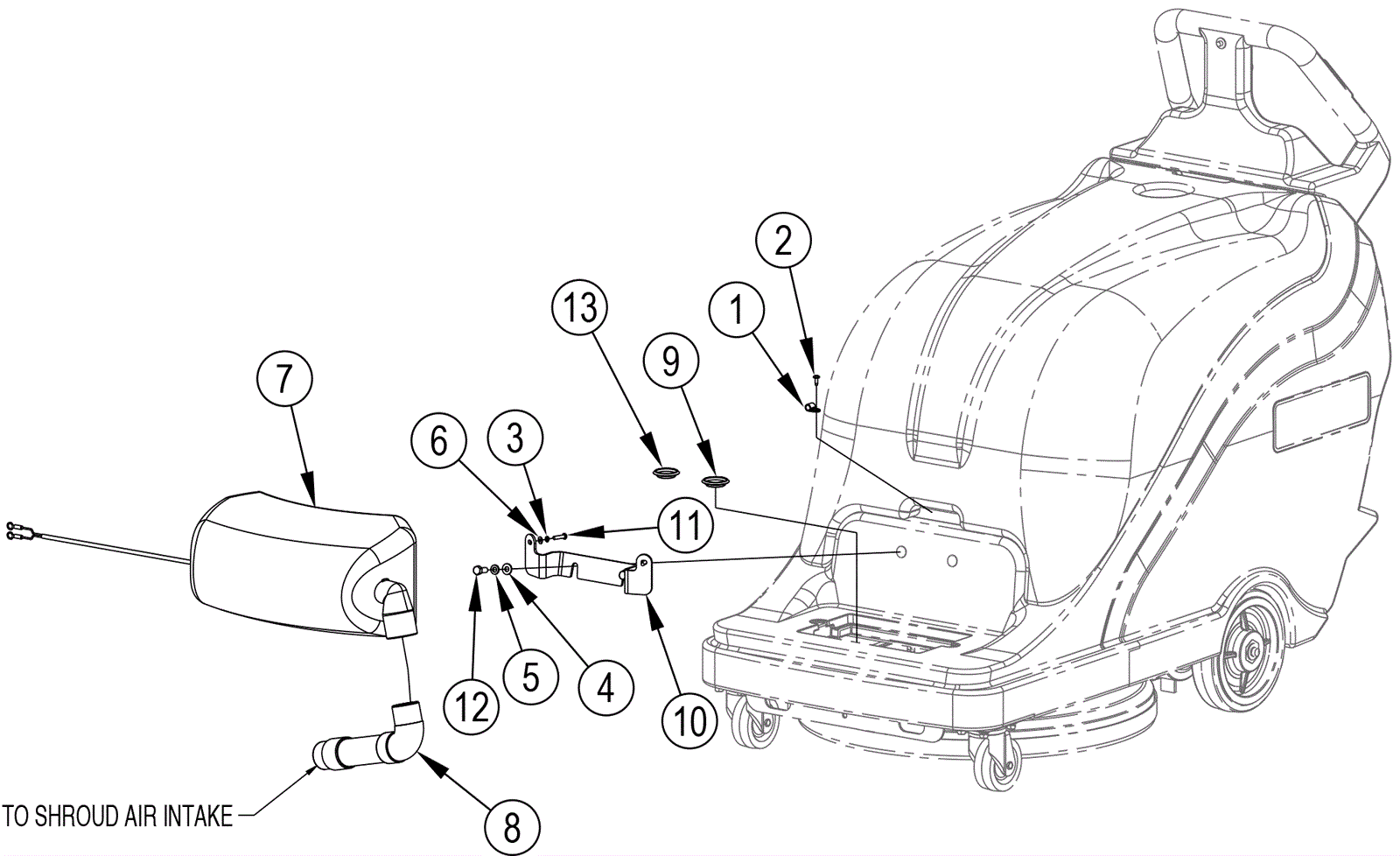

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
170-1744
|
Nylon clip |
1 |
|
|
2 |
999-0110
|
Screw 10-16 x 1/2 pan head phillips self-drilling |
1 |
|
|
3 |
170-6125
|
Washer 1/8 lock |
2 |
|
|
4 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
5 |
999-0028
|
Washer 5/16 split lock plain finish |
2 |
|
|
6 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
|
|
7 |
N/A
|
Not available |
1 |
(active vac) (only available with KIT1) |
|
8 |
272-8499
|
Vacuum hose (OBSOLETE) |
1 |
|
|
9 |
272-8501
|
Shroud cap |
1 |
|
|
10 |
272-8500
|
Acuvac bracket |
1 |
|
|
11 |
999-0886
|
Screw M5-.8 x 20mm pan head slotted zinc |
2 |
|
|
12 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
2 |
|
|
13 |
272-8940
|
Plug |
1 |
|
|
N/S |
181-0518
|
Dust bag (pkg of 5) |
1 |
|
|
N/S |
181-0521
|
Pre-filter |
1 |
|
|
N/S |
272-8504
|
Exhaust filter (pkg of 3) |
1 |
|
|
N/S |
272-8505
|
Cloth dust bag |
1 |
|
|
KIT1 |
272-8506
|
Active vac assembly |
1 |
(includes 1-13) (standard on models 01584A, 01585A, 01586A and 01587A) |
|
