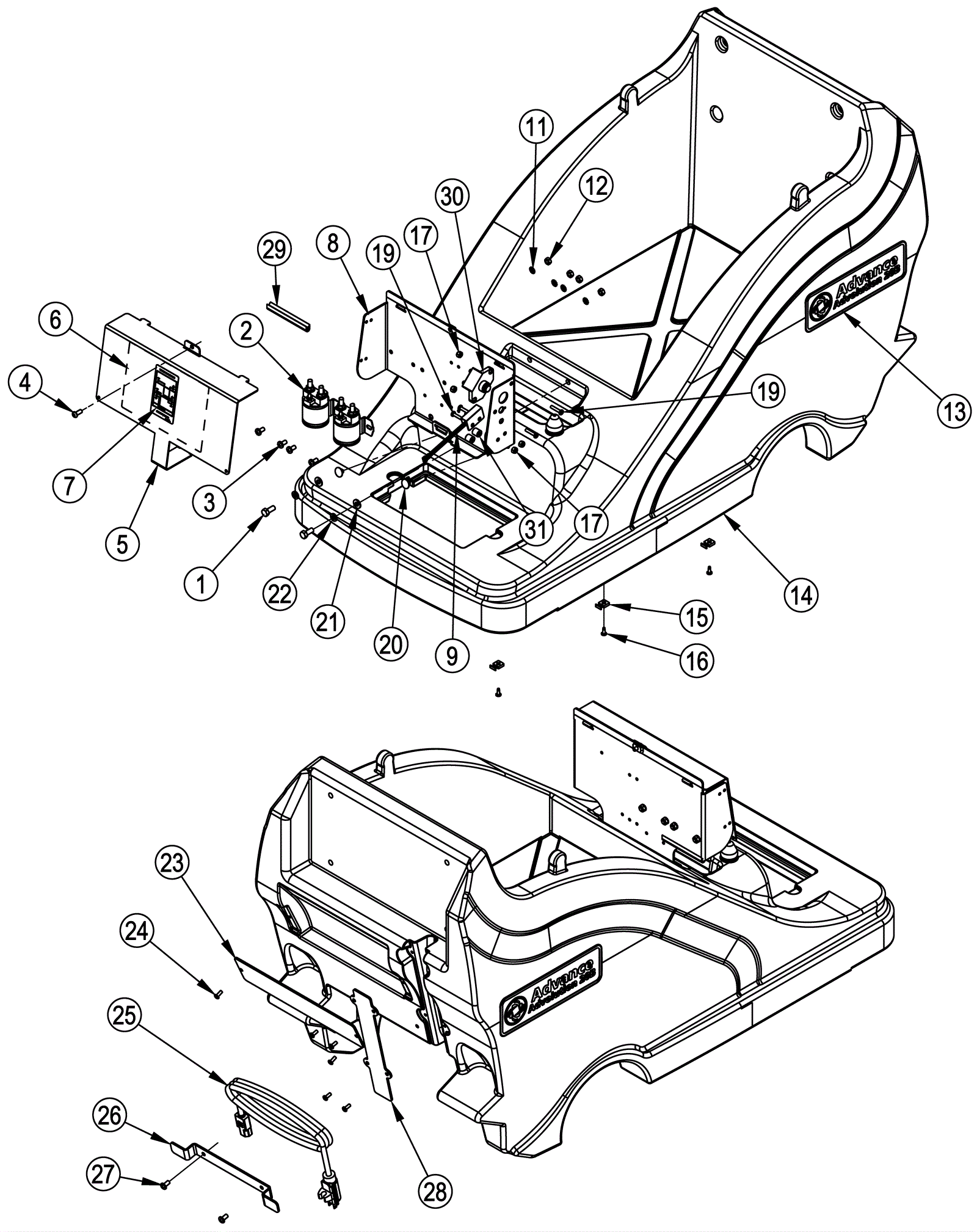

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
$2.64
|
2 |
|
ships same day |
2 |
172-2805
|
36V contactor |
$97.47
|
2 |
|
ships same day |
3a |
999-0323
|
Screw 1/4-20 x 1/2 pan head slotted zinc plated |
$0.99
|
4 |
(before SN 3000117137) |
ships same day |
3b |
999-0323
|
Screw 1/4-20 x 1/2 pan head slotted zinc plated |
$0.99
|
5 |
(after SN 3000117136) |
ships same day |
4 |
272-8481
|
Screw 1/4-20 x 5/8 socket |
$8.07
|
1 |
(before SN 3000117137) |
usually ships 1-5 days |
5 |
272-8482
|
Front electric plate cover |
$44.79
|
1 |
|
usually ships 16-41 days |
6 |
272-8483
|
Connection diagram decal |
$11.99
|
1 |
|
usually ships 1-5 days |
7 |
272-8484
|
Battery connection decal |
$16.50
|
1 |
|
usually ships 1-5 days |
8 |
272-7425
|
Electrical plate weldment |
$68.62
|
1 |
|
usually ships 16-41 days |
9 |
272-7443
|
Tilt switch |
$73.68
|
1 |
|
usually ships 16-41 days |
11 |
999-0017
|
Washer 1/4 external star lock |
$0.99
|
4 |
|
ships same day |
12 |
999-0190
|
Nut 1/4-20 hex plain finish |
$0.99
|
4 |
|
ships same day |
13 |
272-8487
|
Advolution 20B decal |
$28.46
|
2 |
|
usually ships 1-5 days |
14 |
272-8488
|
Lower cover |
$1,028.83
|
1 |
|
usually ships 16-41 days |
15 |
170-7388
|
1/4 tab |
$11.99
|
3 |
|
usually ships 1-5 days |
16 |
999-0110
|
Screw 10-16 x 1/2 pan head phillips self-drilling |
$0.99
|
3 |
|
ships same day |
17 |
999-0460
|
Nut 10-32 hex |
$0.99
|
4 |
|
ships same day |
19 |
170-1463
|
Screw 10-32 x 1 |
$11.99
|
4 |
|
usually ships 1-5 days |
20 |
272-8489
|
Fastener ratchet |
$10.56
|
2 |
|
usually ships 1-5 days |
21 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
22 |
999-0028
|
Washer 5/16 split lock plain finish |
$0.99
|
2 |
|
ships same day |
23 |
272-8490
|
Retention strap (for dust bags) |
$21.00
|
1 |
|
usually ships 1-5 days |
24 |
999-0723
|
Screw 10-32 x 1/2 pan head slotted stainless steel |
$0.99
|
2 |
|
ships same day |
25 |
170-7385
|
Onboard charger cord |
$28.74
|
1 |
|
usually ships 16-41 days |
26 |
170-7386
|
Cord wrapping bracket |
$12.83
|
1 |
|
usually ships 1-5 days |
27 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
$1.03
|
2 |
|
ships same day |
28 |
272-8491
|
Harness cover |
$36.07
|
1 |
|
usually ships 16-41 days |
29 |
170-7070
|
Gasket |
$11.99
|
1 |
|
usually ships 16-41 days |
30 |
181-1355
|
70amp circuit breaker |
$313.32
|
1 |
|
usually ships 16-41 days |
31 |
272-8936
|
Nylon spacer (OBSOLETE) |
$7.92
|
2 |
|
usually ships 1-5 days |
N/S |
272-8492
|
20 inch power harness |
$156.64
|
1 |
|
usually ships 1-5 days |
