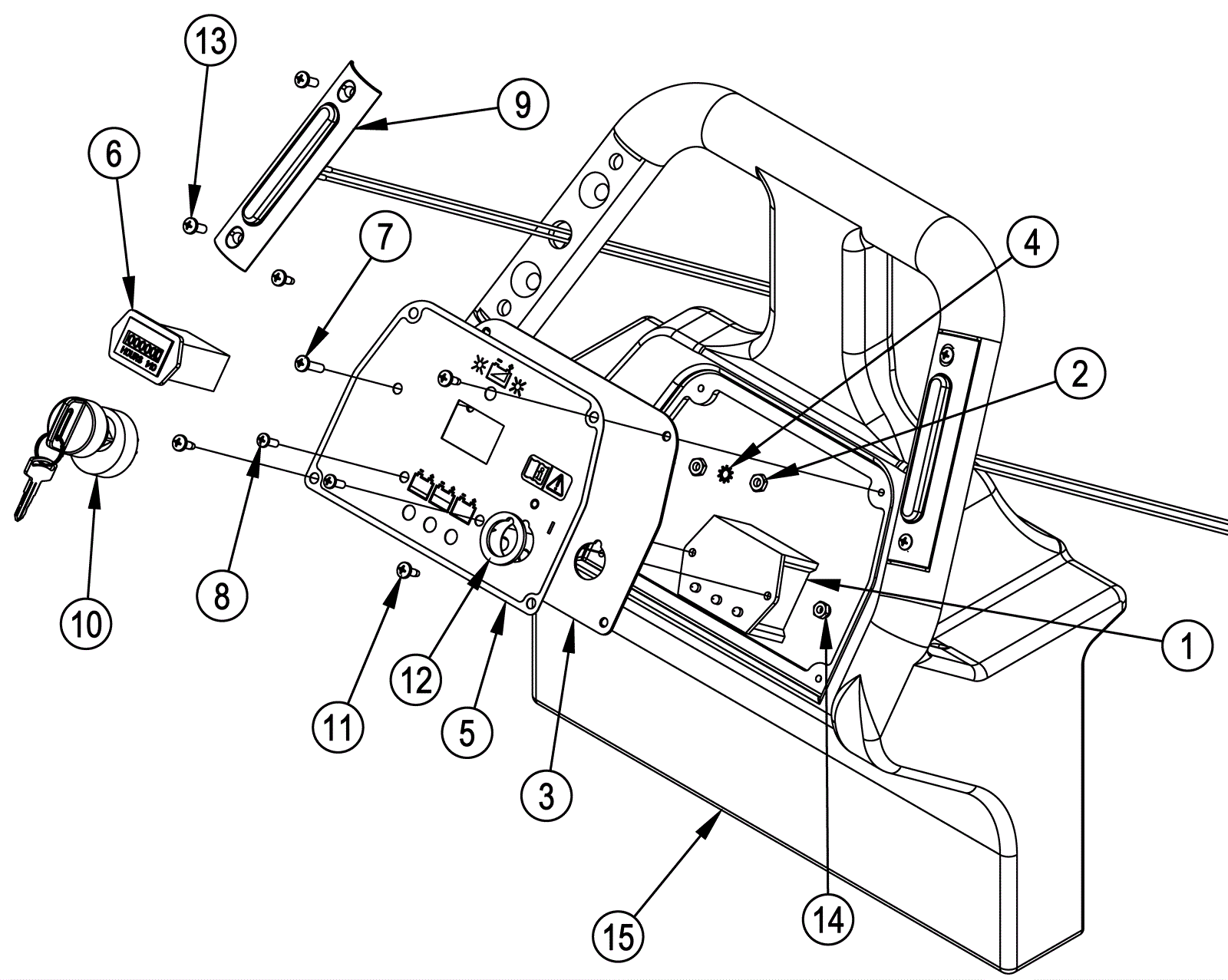

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
272-8476
|
Low voltage battery meter |
$373.33
|
1 |
|
usually ships 16-41 days |
2 |
999-0460
|
Nut 10-32 hex |
$0.99
|
2 |
|
ships same day |
3 |
272-8477
|
Control panel |
$11.99
|
1 |
|
usually ships 1-5 days |
4 |
999-0311
|
Washer #10 external star lock zinc plated |
$0.99
|
2 |
|
ships same day |
5 |
272-8478
|
Control panel label |
$34.66
|
1 |
|
usually ships 1-5 days |
6a |
170-0052
|
Hour meter |
$109.04
|
1 |
(OEM) |
usually ships 16-41 days |
6b |
991-7137
|
Hour meter |
$78.26
|
1 |
(NON-OEM) |
ships same day |
7 |
999-0414
|
Screw 10-32 x 3/4 pan head slotted zinc plated |
$0.99
|
1 |
|
ships same day |
8 |
999-0462
|
Screw 8-32 x 1/2 pan head slotted zinc plated |
$0.99
|
2 |
|
ships same day |
9 |
272-8479
|
Handle switch assembly |
$37.61
|
1 |
|
ships same day |
10a |
170-9026
|
Key switch |
$67.20
|
1 |
|
usually ships 16-41 days |
10b |
170-8937
|
Key |
$13.40
|
1 |
|
ships same day |
11 |
999-0110
|
Screw 10-16 x 1/2 pan head phillips self-drilling |
$0.99
|
4 |
|
ships same day |
12 |
272-8524
|
Key switch spacer |
$11.99
|
1 |
|
usually ships 1-5 days |
13 |
999-0851
|
Screw 10-32 x 1/2 round head slotted nylon |
$0.99
|
4 |
|
ships same day |
14 |
170-2034
|
Nut 8-32 |
$1.21
|
2 |
|
usually ships 1-5 days |
15a |
272-8480
|
Handle |
$290.92
|
1 |
(before SN 3000117137) |
ships same day |
15b |
272-7424
|
Handle |
$261.33
|
1 |
(after SN 3000117136) |
usually ships 1-5 days |
