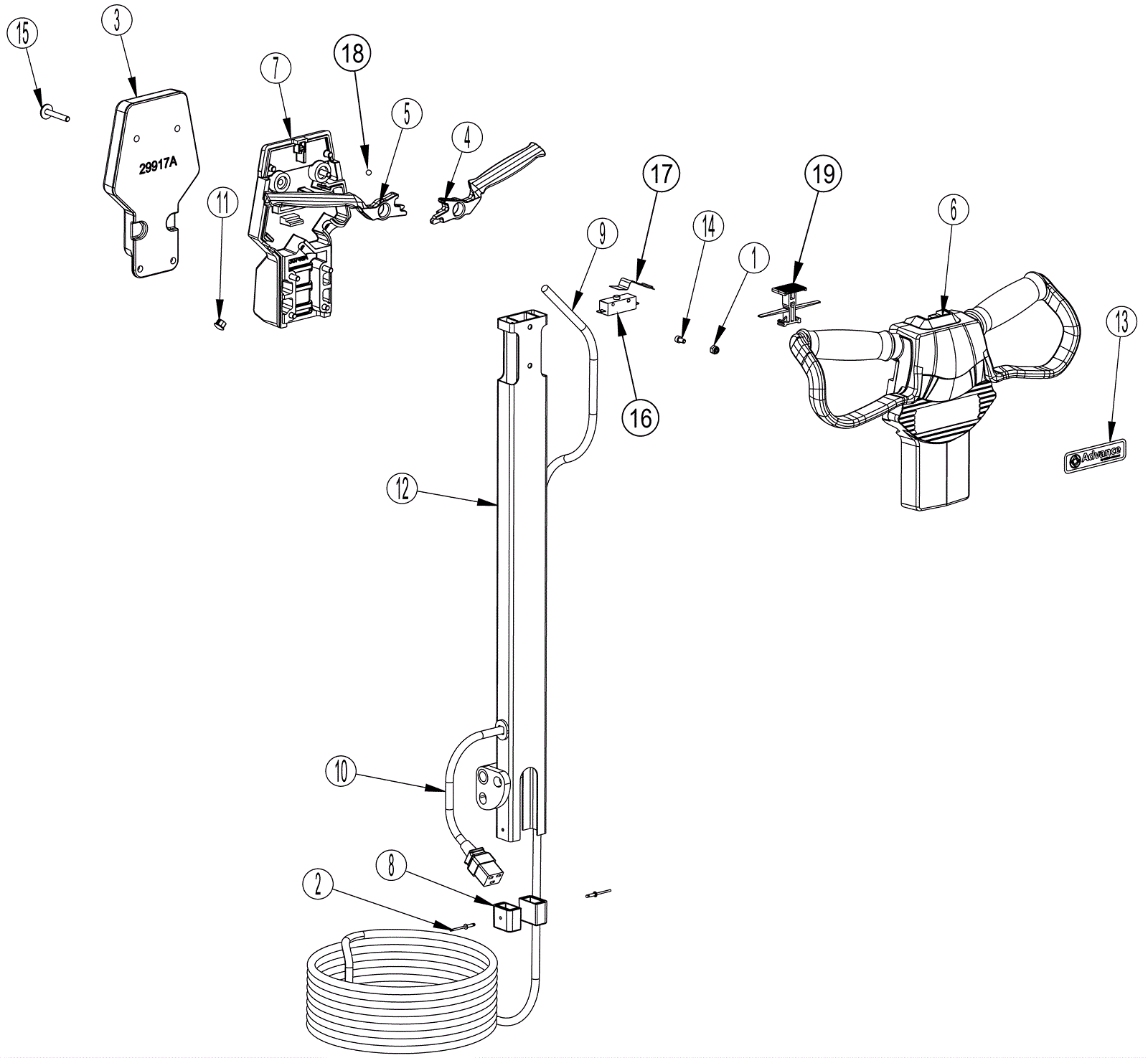

ADVOLUTION 20 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0460 Nut 10-32 hex $0.99 1 ships same day
2 170-0775 1/8 inch rivet pop aluminum $12.89 2 usually ships 13-18 days
3 272-8151 Handle weight (gray) $208.89 1 usually ships 1-5 days
4 272-8228 Interlocking left hand lever $14.41 1 ships same day
5 272-8221 Interlocking right hand lever $14.41 1 ships same day
6a 272-8157 Front handle $114.06 1 (120V) usually ships 13-18 days
6b 370-1744 HANDLE FRONT ADVANCE DPST $51.26 1 (230V) usually ships 13-18 days
7 272-8227 Rear handle $64.38 1 usually ships 13-18 days
8 272-8231 Plastic cap (black) $13.78 2 usually ships 13-18 days
9a 272-8234 14/3 power cord 50 foot $352.52 1 (OEM) usually ships 13-18 days
9b 370-1974 CORD POWER $155.45 1 (OEM) usually ships 13-18 days
9c 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
10a 272-9557 Innerconnect cord $27.26 1 (20) (120V) usually ships 13-18 days
10b 370-1983 CORD INTERCONNECT $17.17 1 (20) (230V) usually ships 13-18 days
10c 272-9558 Innerconnect cord $37.27 1 (20XP) (120V) usually ships 13-18 days
10d 370-1991 CORD INTERCONNECT $19.01 1 (20XP) (230V) usually ships 13-18 days
11 270-0788 Plug $12.89 1 usually ships 1-5 days
12 272-8230 Handle tube weldment $72.26 1 usually ships 13-18 days
13 170-7799 Advance decal $17.46 1 usually ships 13-18 days
14 999-1276 Screw 10-32 x 3/8 hex head stainless steel $0.99 1 ships same day
15 999-1247 Screw 1/4-20 x 1 3/4 button head socket cap zinc plated $0.99 6 ships same day
16a 172-3093 Switch $16.20 1 (120V) ships same day
16b 370-1976 SWITCH DPSTNO 20A 250V (OBSOLETE) $41.54 1 (230V) usually ships 13-18 days
17 172-3100 Spring plate $9.70 1 ships same day
18 172-3103 1/4 ball bearing stainless steel $14.18 1 usually ships 13-18 days
19 172-3091 Locking button $16.20 1 ships same day
