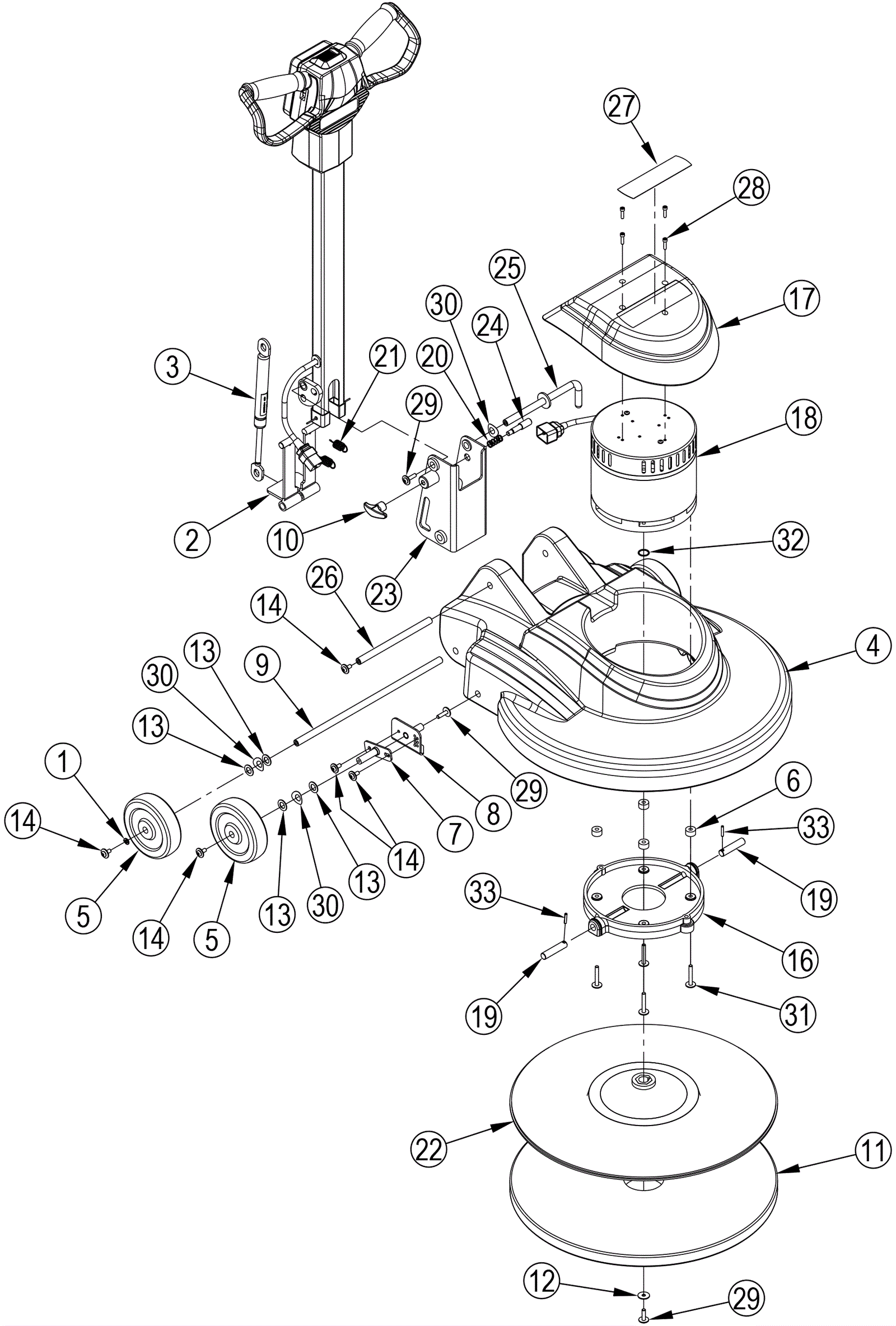

ADVOLUTION 20 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0060 Washer 1/4 split lock plain finish $0.99 1 ships same day
2 272-6227 Pedal weldment $223.87 1 ships same day
3 272-6230 Spring $54.43 1 usually ships 16-41 days
4a 272-6231 Mainframe $441.08 1 usually ships 1-5 days
4b 272-8209 Mainframe $679.45 1 (replacement kit for 4a) usually ships 1-5 days
5 172-3050 5 inch wheel $24.23 4 usually ships 7-17 days
6 272-6232 Spacer $9.60 4 usually ships 1-5 days
7a 272-8212 Front axle $28.64 2 (before SN 3000144351) usually ships 16-41 days
7b 472-7702 WHEEL PLATE WLDT $42.65 2 (after SN 3000144350) usually ships 16-41 days
7c 270-0800 Wheel adjustment kit $217.20 1 (used to convert axle to new style) usually ships 1-5 days
8 472-7703 PIVOT PLATE WLDT $8.20 2 usually ships 16-41 days
9 272-8213 Rear axle $11.66 1 usually ships 16-41 days
10 170-3401 T knob handle $10.90 1 usually ships 16-41 days
11 272-8518 Burnishing pad (aqua) (pkg of 5) $42.65 1 usually ships 16-41 days
12 170-1274 Washer $9.60 1 usually ships 16-41 days
13 170-0705 Washer 1/2 x 3/64 $2.45 8 usually ships 4-15 days
14 999-0395 Screw 1/4-20 x 5/8 button head socket plain finish $0.99 10 ships same day
16 272-8210 Motor mount $130.64 1 usually ships 16-41 days
17 272-8207 Motor cover $20.37 1 usually ships 16-41 days
18a 272-8208 120V brush motor $1,558.88 1 usually ships 16-41 days
18b 370-1984 MOTOR 1.1KW 1500RPM 230/50/60 $921.00 1 usually ships 16-41 days
19 372-3693 Clevis pin $10.90 2 usually ships 16-41 days
20 272-8203 Compression spring $1.10 1 usually ships 4-15 days
21 272-8226 Extension spring $9.60 2 usually ships 16-41 days
22 170-2201 Pad driver $251.39 1 usually ships 16-41 days
23 272-8201 Handle tube weldment $91.96 1 usually ships 1-5 days
24 272-8204 Pull pin stem $13.19 1 usually ships 16-41 days
25 370-2508 WRAP CORD ADVANCE $14.61 1 usually ships 16-41 days
26 272-8214 Pivot axle $11.66 1 usually ships 16-41 days
27 272-8205 Motor cover deca (OBSOELTE)l $14.63 1 usually ships 16-41 days
28 999-1275 Screw 10-32 x 3/4 hex head stainless steel $1.23 4 ships same day
29 272-8200 Button head screw $4.80 4 usually ships 4-15 days
30 272-8202 Bowed washer $3.00 5 ships same day
31 999-1247 Screw 1/4-20 x 1 3/4 button head socket cap zinc plated $0.99 4 ships same day
32 272-8494 External retaining ring $10.90 1 usually ships 1-5 days
33 172-4894 Pin 5/32 x 7/8 spring $10.90 2 usually ships 1-5 days
N/S 272-6233 Adapter $9.74 1 usually ships 1-5 days
N/S 372-1631 Prop 65 decal $4.90 1 usually ships 16-41 days
N/S 272-7439 60amp rectifier $47.90 1 usually ships 16-41 days
N/S 370-2031 RECTIFIER 230V/115V DCR PV 4 $101.69 1 usually ships 16-41 days
N/S 170-0321 Front end bearing $19.58 1 usually ships 4-15 days
N/S 372-1890 Bearing (rear) $39.46 1 usually ships 16-41 days
N/S 170-0379 Wave washer $9.60 1 usually ships 16-41 days
N/S 372-1221 Carbon brush assembly kit $45.33 1 ships same day
N/S 370-1924 BRUSH BOARD ASM. 230V $217.20 1 usually ships 16-41 days
N/S 370-2426 VARISTOR 230V PV BURN $35.00 1 usually ships 16-41 days
N/S 170-1509 Lead (yellow) $23.05 1 usually ships 16-41 days
N/S 170-1508 Lead (red) $10.90 1 usually ships 16-41 days
N/S 372-1221 Carbon brush assembly kit $45.33 1 ships same day
