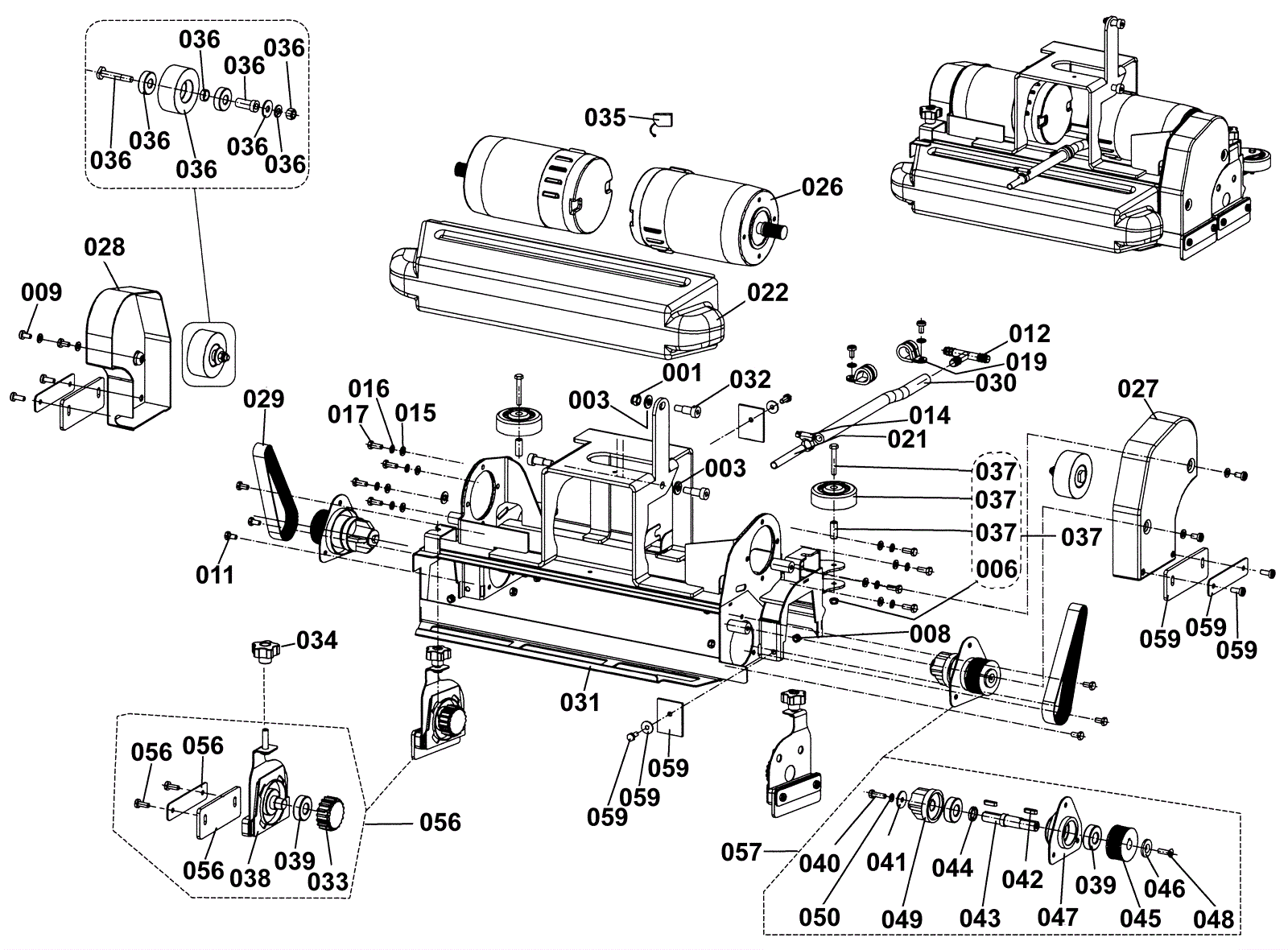

ADFINITY X20C Brushes Assembly

#PartDescriptionPriceReqNotesAvailability
003 999-0998 Washer #10 flat stainless steel $0.99 3 ships same day
006 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
008 172-3722 Screw M6x12 $10.90 6 usually ships 1-5 days
011 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 6 ships same day
012 272-0787 Pipe holder $10.90 1 usually ships 16-41 days
014 272-2669 Hose clamp (OBSOLETE) $5.60 1 usually ships 16-41 days
015 172-4821 Washer M6 flat $6.16 14 usually ships 1-5 days
016 172-4822 Washer M6 split $9.60 8 usually ships 1-5 days
017 172-4823 Screw M6 x 16mm hex head $16.27 8 usually ships 16-41 days
019 272-0763 Clamp $10.90 2 usually ships 1-5 days
021 N/A Not available Call for price 1 (Metal coupling) usually ships 3-26 days
022 172-4824 Dirt container $176.61 2 usually ships 16-41 days
026 172-4825 24V electric motor $1,423.63 1 usually ships 16-41 days
027 172-4826 Right belt protection crankcase $77.49 1 ships same day
028 172-4827 Left belt protection crankcase $80.05 1 usually ships 16-41 days
029 172-4828 Belt $88.61 1 usually ships 16-41 days
030 172-4829 Hose $45.33 1 usually ships 1-5 days
031 172-4830 Cylindrical brush deck frame $1,491.27 3 usually ships 1-5 days
032 172-4807 Bolt M10 x 16mm shoulder $4.78 2 usually ships 16-41 days
033 172-1838 Hub $13.19 2 usually ships 16-41 days
034 572-3784 KNOB M8 PKD $13.12 2 usually ships 16-41 days
035 272-8286 Carbon brush kit (pkg of 4) $176.61 8 usually ships 16-41 days
036 172-4831 Tensioner kit $244.24 1 usually ships 16-41 days
037 172-4832 Bumper wheel kit $129.36 1 (inlcludes 006, 0370 usually ships 16-41 days
038 172-4833 Brush support (OBSOLETE) $284.38 2 usually ships 16-41 days
039 272-0813 Ball bearing $28.94 6 usually ships 16-41 days
040 272-0780 Screw M6 x 20 hex head stainless steel (set of 10) $30.87 2 usually ships 16-41 days
041 272-0781 Washer 6 x 24 flat stainless steel (OBSOLETE) $7.20 2 usually ships 16-41 days
042 181-0942 Square keyway $43.93 4 usually ships 16-41 days
043 272-0798 Pin brush pulley $99.13 2 usually ships 16-41 days
044 272-0765 Spacer $11.66 2 usually ships 16-41 days
045 172-4840 Pulley (OBSOLETE) $58.00 2 usually ships 16-41 days
046 272-0778 Spacer 6 1/2 x 25 x 2 1/2 $11.66 2 usually ships 16-41 days
047 172-4834 Brush pulley support (OBSOLETE) $114.00 2 usually ships 16-41 days
048 172-4835 Screw M6 x 20mm $10.90 2 usually ships 16-41 days
049 272-0793 Brush hub $53.16 2 usually ships 16-41 days
050 999-0051 Washer #6 medium split lock $0.99 2 ships same day
056 172-4836 Cylindrical brush support kit $291.49 1 (includes 033, 038, 039, 056) usually ships 16-41 days
057 172-4837 Pulley support kit $311.73 1 (includes 039-050) usually ships 16-41 days
058 172-4838 Cylindrical brush deck harness $84.67 1 usually ships 1-5 days
059 172-4839 Splash guard kit $192.11 1 (includes parts for both sides) usually ships 16-41 days
N/S 172-4819 Brush deck kit $6,505.86 1 (includes 001-059) usually ships 1-5 days
