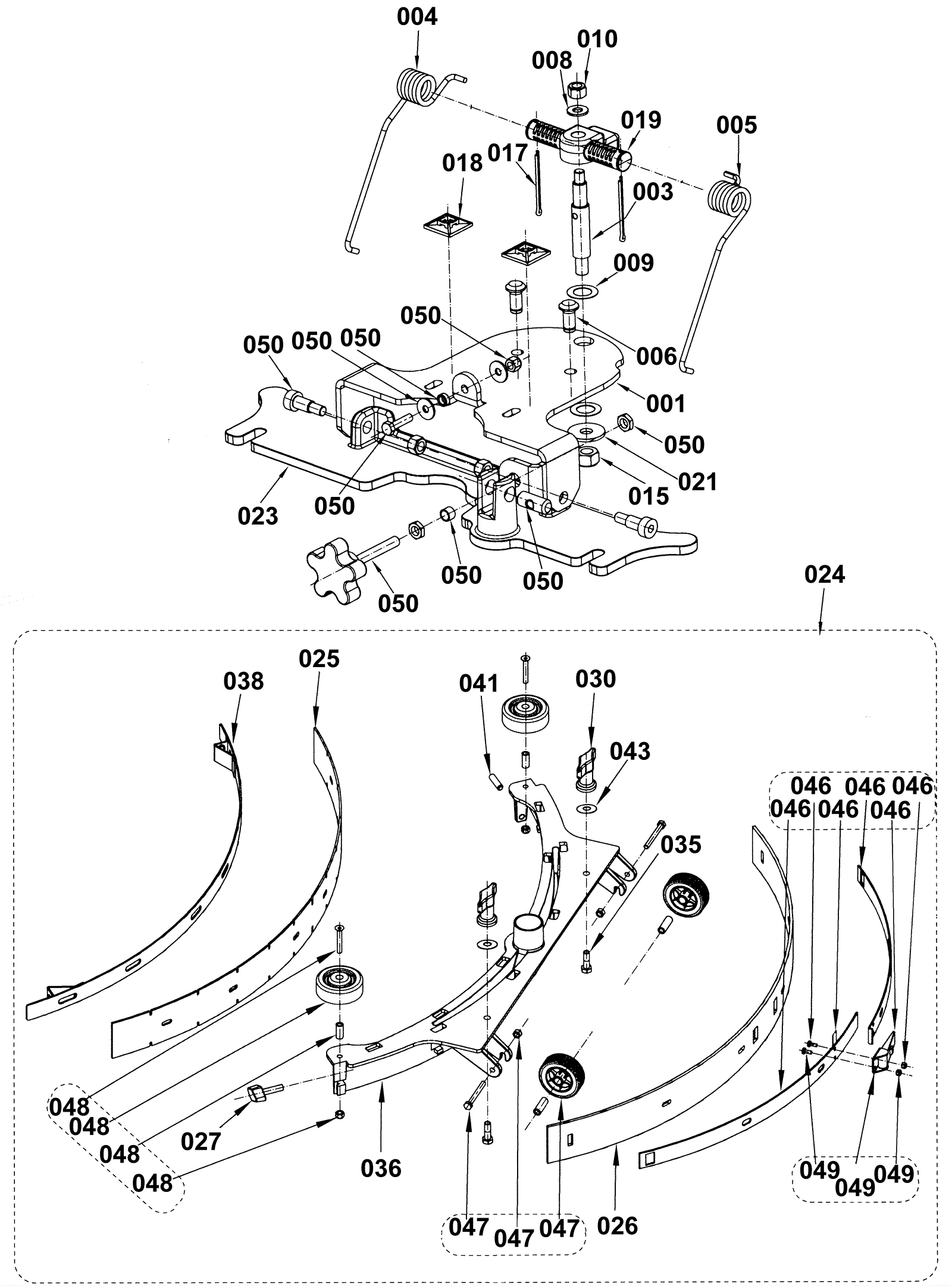

ADFINITY X20D Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
001 172-4774 Squeegee support bracket $181.96 1 usually ships 13-18 days
003 270-0395 Squeegee pin $15.17 1 ships same day
004 172-4776 Right hand squeegee torsion spring $13.78 1 ships same day
005 172-4777 Spring $13.78 1 ships same day
006 270-0398 Squeegee fixing pin $15.17 2 usually ships 13-18 days
008 999-1267 Washer M8 flat zinc $0.99 1 ships same day
009 272-2000 Washer M15 x 25mm plain nylon $11.19 2 usually ships 13-18 days
010 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 3 ships same day
015 172-4782 Nut M10 self locking $12.89 1 usually ships 13-18 days
017 270-0399 Split pin $11.35 2 usually ships 13-18 days
018 172-4784 Wire tie holder $11.35 2 ships same day
019 270-0114 Spring support $6.51 1 ships same day
021 999-1262 Washer M10 flat $1.47 1 ships same day
023 272-7000 Squeegee mounting bracket kit $169.98 1 ships same day
024 272-7162 Squeegee kit $689.40 1 (includes 025-027, 030, 035, 036, 038, 041, 043, 046-050) ships same day
025a 272-2026 Squeegee blade kit gum rubber $50.78 1 ships same day
025b 994-0062 Squeegee blade 33 inch gum rubber rear (tan) $19.30 1 usually ships 25-31 days
026 272-2026 Squeegee blade kit gum rubber $50.78 1 ships same day
027 272-8529 Knob M8 x 30mm stainless steel $25.75 1 usually ships 13-18 days
030 172-4099 Nut 5/16-18 thumb $13.32 2 ships same day
035 999-9093 Screw M6-1 x 55mm hex head stainless steel $0.99 2 ships same day
036 172-4788 Squeegee weldment $255.29 1 ships same day
038 172-4789 Front squeegee strap (OBSOLETE) $46.00 1 usually ships 13-18 days
041 172-4790 Dowel M8 x 30mm $13.78 1 usually ships 13-18 days
043 172-4791 Rubber washer $12.11 2 ships same day
046 172-4792 Rear squeegee strap and hardware kit $177.07 1 ships same day
047 172-4793 Squeegee wheel kit $124.22 1 ships same day
048 172-4794 Squeegee bumper wheel kit $106.34 1 ships same day
049 172-4795 Squeegee latch kit $91.65 1 usually ships 13-18 days
050 172-4796 Hardware fixing kit $232.99 1 usually ships 13-18 days
N/S 272-8150 Squeegee lifting cable $103.32 1 ships same day
N/S 272-8529 Knob M8 x 30mm stainless steel $25.75 1 usually ships 13-18 days
N/S 272-2026 Squeegee blade kit gum rubber $50.78 1 (includes front and rear) ships same day
N/S 270-0403 Squeegee blade kit PRIMOthane (incs front and rear blade) $119.11 1 (includes front and rear) (OEM) ships same day
N/S 994-0055 Squeegee blade kit (front and rear blades) AFTERMARKET $70.62 1 (NON-OEM) (Focus II) ships same day
N/S 994-2009 Squeegee blade kit (rear and front blades) (12 holes) $115.76 1 (NON-OEM) (Focus II BOOST L20 and Adfinity 20D) ships same day
N/S 372-1312 Squeegee blade kit linatex $112.55 1 ships same day
