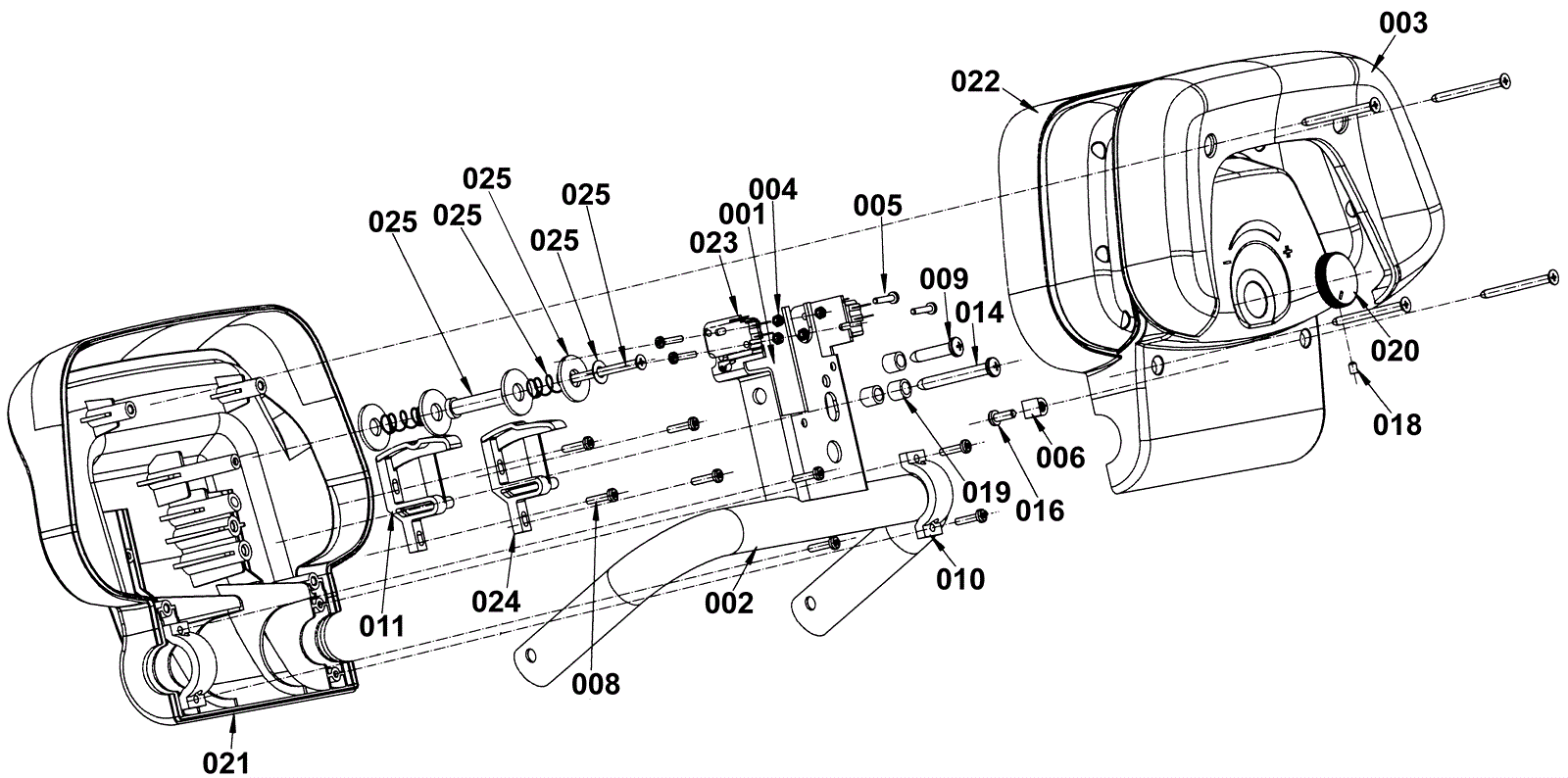

Handle Assembly

#PartDescription ReqNotesAvailability
001 172-4756 Handle harness 1
002 270-0642 Handle bar 1
003 172-4757 Rubber cover (OBSOLETE) 1
004 999-0768 Nut M3-.5 hex coarse thread plain finish 4
005 272-7158 Screw M3-.5 x 16mm cylindrical head (OBSOLETE) 4
006 172-4759 Clamp 1
008 999-0738 Screw M3-.5 x 16mm pan head phillips zinc 8
009 999-1303 Screw M6-1 x 25mm flat head phillips stainless steel 1
010 272-1958 Clamp 2
011 272-6318 Micro switch cam 1
014 999-1991 Screw M6-1.0 x 50mm pan head phillips zinc 1
016 N/A Not available 1 (Screw)
018 172-3747 Dowel (OBSOLETE) 1
019 172-4761 Spacer 3
020 172-4762 Potentiometer knob 1
021 270-0643 Upper/lower handle covers 1
022 270-0643 Upper/lower handle covers 1
023 272-5299 Microswitch 2
024 172-4764 Microswitch cam handle 1
025 172-4765 Handle hardware kit 1
KIT 1 270-0643 Upper/lower handle covers 1 (Includes 3 and 22)
KIT 2 172-4765 Handle hardware kit (Includes 4 and 5)
N/S 172-4766 Speed potentiometer harness 1
