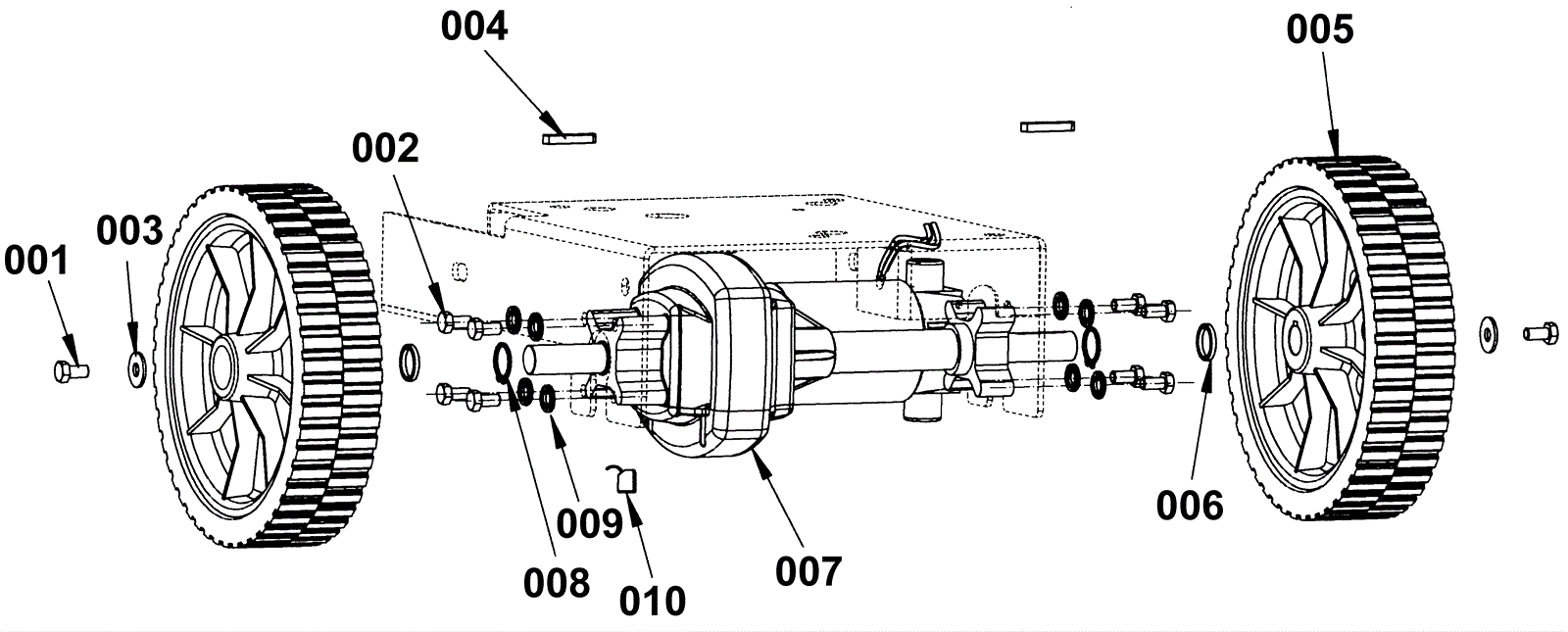

ADFINITY X24D Wheels and Traction Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 2 ships same day
002 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 8 ships same day
003 999-1267 Washer M8 flat zinc $0.99 2 ships same day
004 172-4750 Square keyway $12.89 2 usually ships 13-18 days
005a 270-0370 Wheel kit (pkg of 2) smooth $489.15 2 (smooth) ships same day
005b 172-4751 Drive wheel (treaded) (pkg of 2) $392.79 2 (treaded) usually ships 13-18 days
006 572-3617 SPACER 20.5X25X4 10 PCS SET $50.45 2 usually ships 13-18 days
007 172-4753 24V transaxle $2,405.06 1 usually ships 13-18 days
008 172-4754 Snap ring $12.89 2 usually ships 13-18 days
009 999-0674 Washer M8 split lock plain finish $0.99 8 ships same day
010 272-0760 Carbon brush $45.00 2 (sold individually) usually ships 13-18 days
KIT 272-6312 Drive wheel hardware kit $94.68 1 (Includes 1-3, 8, and 9) usually ships 1-5 days
