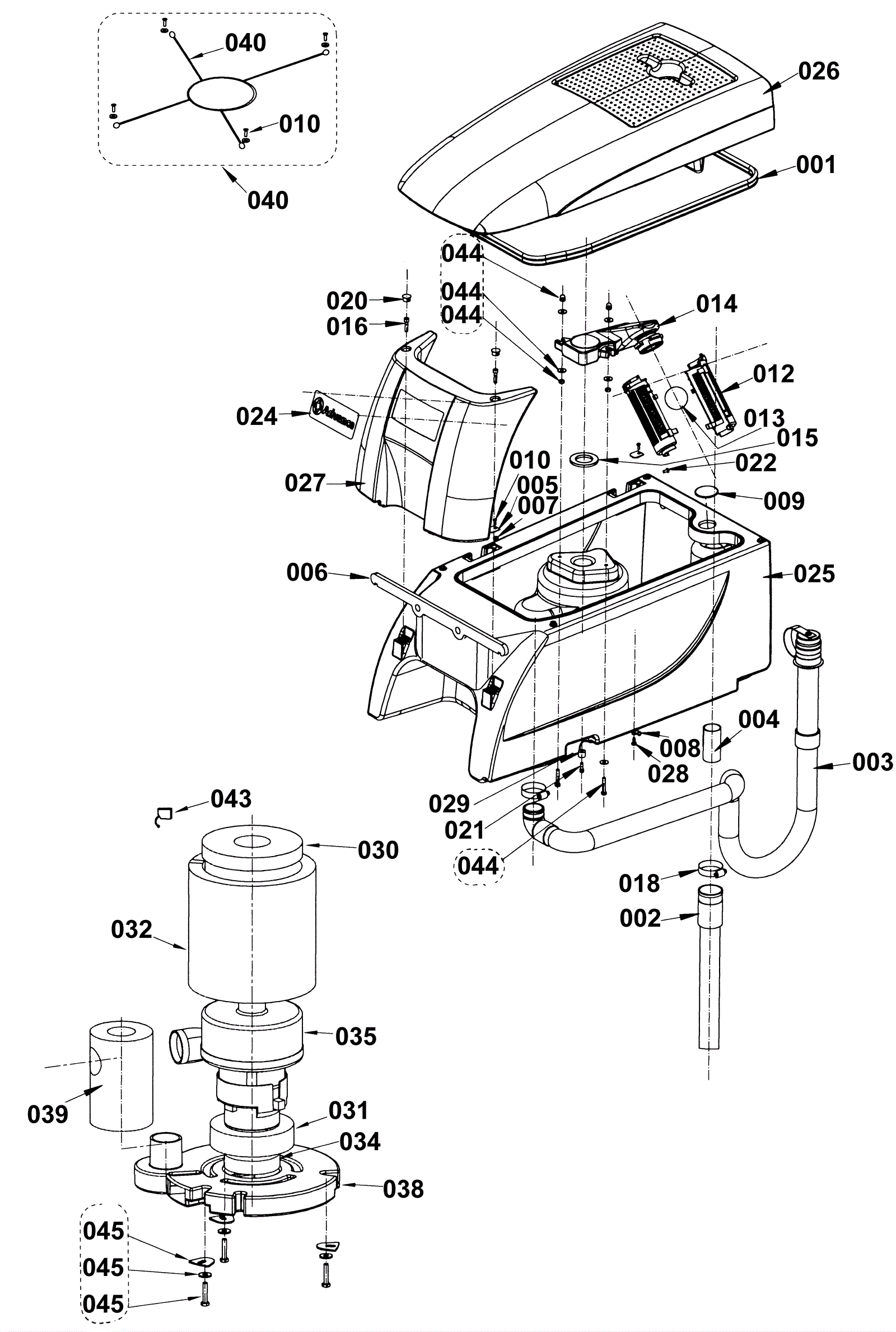

ADFINITY X24D Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
001 272-8080 Tank lid gasket (OBSOLETE) $46.95 1 usually ships 13-18 days
002a 272-0618 Squeegee vacuum hose kit $67.56 1 ships same day
002b 991-3105 Squeegee vacuum hose assembly $51.19 1 ships same day
003 272-8549 Drain hose assembly with plug $120.29 1 ships same day
004 172-4717 Anti splash hose $14.41 1 ships same day
005 272-5297 Plate $13.78 2 usually ships 13-18 days
006 270-0639 Gasket $10.50 1 ships same day
007 172-4718 Bushing $13.78 1 usually ships 13-18 days
008 272-8416 P clamp $12.71 1 usually ships 13-18 days
009 172-4719 Plug $56.65 1 usually ships 13-18 days
010 999-9095 Screw M4-.7 x 14mm socket head stainless steel $0.99 6 ships same day
012 172-0517 Float cage half (2 required for full float cage) $19.25 2 ships same day
013 172-0192 Float ball $10.52 1 usually ships 18-27 days
014A 172-4721 Float cage support (OBSOLETE) $70.04 1 usually ships 13-18 days
015 272-5298 Gasket $12.71 1 usually ships 13-18 days
016 999-1300 Screw M6-1 x 25mm socket head stainless steel $1.10 2 usually ships 1-5 days
018 997-2000 Hose clamp $2.37 2 ships same day
020 272-8408 Cap $12.89 2 usually ships 1-5 days
021 999-1301 Screw M5-.8 x 16mm socket head stainless steel $0.99 1 ships same day
022 999-1220 Screw M5-.8 x 12mm hex head stainless steel $0.99 1 ships same day
024 172-4725 Advance decal (OBSOLETE) $6.29 1 usually ships 1-5 days
025 172-4726 Recovery tank $609.41 1 usually ships 1-5 days
026 172-4727 Recovery tank lid $368.72 1 usually ships 13-18 days
027 172-4728 Recovery tank panel $256.89 1 usually ships 1-5 days
028 999-9096 Screw M5-.8 x 12mm socket head stainless steel $0.99 1 ships same day
029 270-0640 Spacer (OBSOLETE) $6.29 1 usually ships 13-18 days
030 172-4729 Vacuum motor gasket (OBSOLETE) $65.97 1 usually ships 13-18 days
031 172-4730 Vacuum motor gasket $46.67 1 ships same day
032 172-4731 Acoustic insulation panel $17.74 1 ships same day
034 172-4732 Filter $11.35 1 ships same day
035 272-6578 24V 2 stage vacuum motor $505.34 1 ships same day
038 172-4733 Vacuum motor cover $14.41 1 ships same day
039 172-4734 Acoustic insulation pipe $17.74 1 ships same day
040 270-0641 Rubber band kit $24.09 1 (includes 010) usually ships 1-5 days
043 272-0627 Carbon brush $20.91 2 ships same day
044 172-4735 Recovery tank hardware kit $91.83 1 usually ships 1-5 days
045 172-4736 Vacuum motor hardware kit $157.14 1 usually ships 13-18 days
N/S 272-7206 Antifoaming filter $11.35 1 (After 02.2008) usually ships 13-18 days
