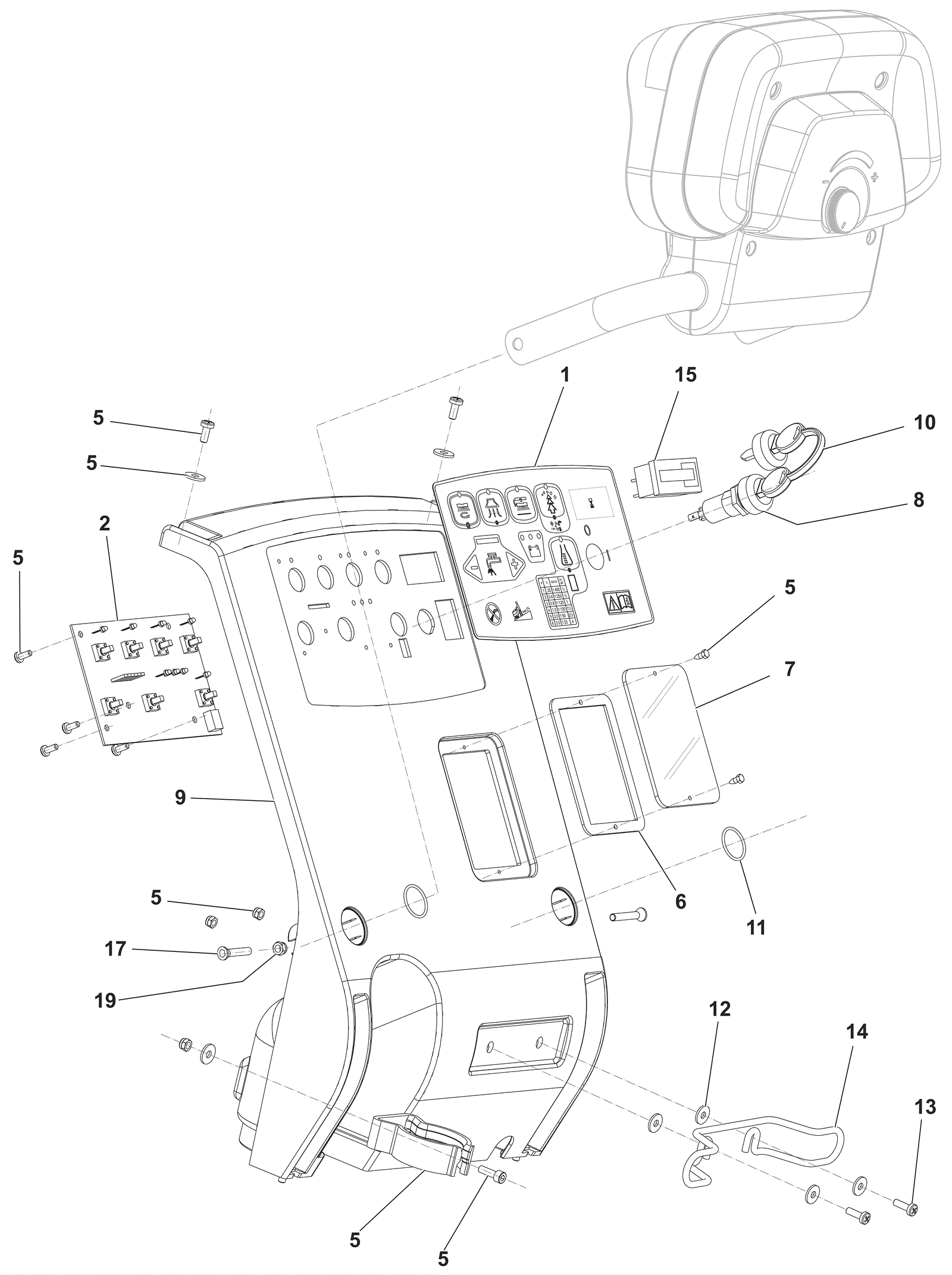

ADFINITY X20r REV Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-0822 Control panel decal $33.24 1 usually ships 16-41 days
2 272-3767 Electronic card $298.24 1 usually ships 16-41 days
5 272-6324 Control panel hardware kit $26.92 1 usually ships 16-41 days
6 172-4856 Gasket $21.00 1 usually ships 16-41 days
7 272-0640 Inspection plate $19.45 1 usually ships 16-41 days
8 172-3785 Key switch with two keys $64.90 1 usually ships 1-5 days
9 572-3667 COVER GREY F ELECTRIC COMP. BO $75.10 1 usually ships 16-41 days
10 991-1634 Key (pkg of 2) $10.67 1 ships same day
11 172-4862 O-ring $10.56 2 usually ships 1-5 days
12 999-9100 Washer M5 flat stainless steel $5.83 4 ships same day
13 999-0531 Screw M5-.8 x 16mm pan head slotted zinc $0.99 2 ships same day
14 272-0659 On-board charger cord wrap $5.39 1 ships same day
15 272-9274 24V hour meter $179.06 1 usually ships 16-41 days
17 272-3769 Screw $11.99 2 usually ships 1-5 days
19 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
N/S 572-3491 FUSE BLADE 3A PKD $11.99 2 usually ships 16-41 days
N/S 272-9276 20amp fuse $11.99 1 usually ships 16-41 days
