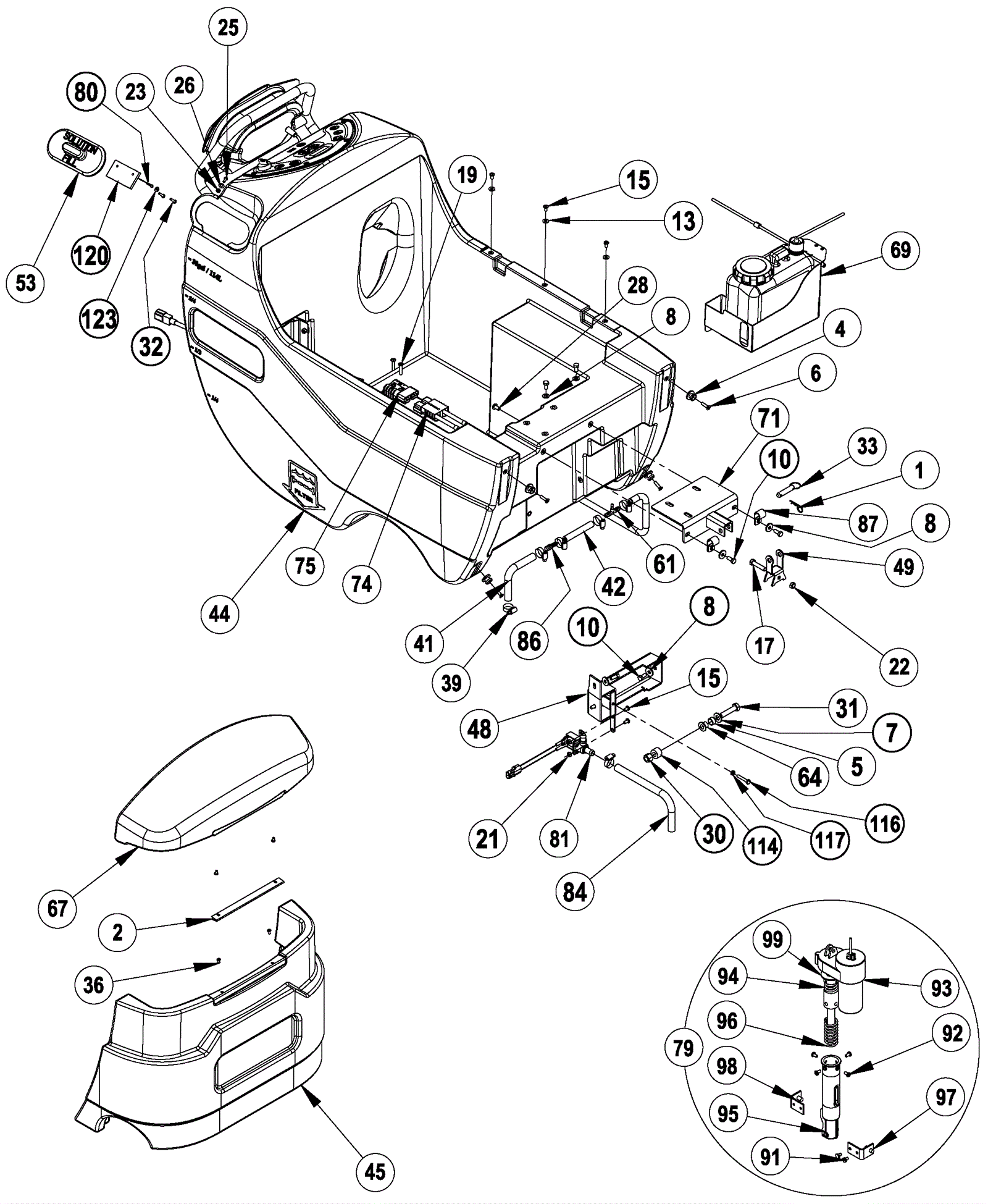

ADHANCER 32C Solution Electrical Assembly 1

#PartDescriptionPriceReqNotesAvailability
1 997-2509 Cotter pin 1/8 x 3/4 stainless steel $0.99 1 ships same day
2 272-0192 Hinge $81.60 1 usually ships 1-5 days
4 172-0444 Drive lug $23.01 4 usually ships 16-41 days
5 N/A Not available Call for price 1 (Sleeved bearing) (please order 172-0069) usually ships 3-26 days
6 999-0348 Screw 1/4-20 x 1 flat head phillips zinc plated $0.99 4 ships same day
7 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
8 172-2067 Washer 11/32 x 1/8 flat $12.31 7 usually ships 16-41 days
10 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 7 ships same day
13 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
15 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 7 ships same day
17 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
19 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated $0.99 2 ships same day
21 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
22 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
23 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
25 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 1 ships same day
26 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
28 172-9513 Retaining ring $12.31 1 usually ships 1-5 days
31 999-1128 Bolt M12-1.75 x 35mm hex hd stainless steel part thread $6.60 1 ships same day
32 999-1933 Screw #10-16 x 1 pan head phillips stainless steel $1.08 2 ships same day
33 272-2115 Clevis pin $10.13 1 usually ships 16-41 days
36 999-0477 Screw 10-24 x 5/16 truss head phillips zinc $1.54 4 ships same day
39 997-2002 Hose clamp #6 $2.15 5 ships same day
41 172-2327 Wire reinforced clear hose (OBSOLETE) $13.17 2 usually ships 16-41 days
42 272-2314 Wire reinforced clear hose 3/4 $13.17 1 usually ships 1-5 days
44 272-8179 Solution tank $1,270.87 1 usually ships 16-41 days
45 272-2199 Nose cone (OBSOLETE) $268.66 1 usually ships 16-41 days
49 272-2202 Actuator yoke $31.10 1 usually ships 1-5 days
53 272-2204 Solution fill cover $12.31 1 ships same day
61 272-2316 Tee barb $12.31 1 usually ships 1-5 days
67 272-2212 Chemical tank cover $421.17 1 usually ships 1-5 days
69 272-2173 Chemical tank assembly $781.56 1 usually ships 1-5 days
71 272-8185 Actuator mount weldment $85.24 1 usually ships 1-5 days
74 272-2319 Charger connector assembly $78.58 1 (Advance only - to batteries) usually ships 16-41 days
79 172-1908 Actuator assembly $605.06 1 (includes 91 thru 99) usually ships 16-41 days
79b 272-7226 Spring housing kit $107.50 1 usually ships 16-41 days
80 172-1084 Wire rope assembly $13.76 1 ships same day
81 272-2586 36V solenoid valve $176.52 1 usually ships 1-5 days
84 172-2815 Main solution hose $13.17 1 usually ships 16-41 days
87 172-8870 P clamp $10.85 2 usually ships 1-5 days
91 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted $0.99 2 ships same day
93a 172-8921 Actuator $551.66 1 usually ships 16-41 days
93b 172-8922 Plastic drive nut $19.98 1 usually ships 16-41 days
94 172-8941 Compression spring $29.23 1 usually ships 16-41 days
95 172-8952 Spring housing $72.63 1 usually ships 16-41 days
96 172-8953 Compression spring $35.60 1 usually ships 16-41 days
97 172-8954 Nut retainer $52.67 1 usually ships 16-41 days
98 172-8955 Nut retainer $52.67 1 usually ships 16-41 days
99 272-8539 Spring housing guide $63.07 1 usually ships 16-41 days
116 999-0634 Bolt 1/4-20 x 1 1/2 hex head full thread grade 5 zinc plated $0.99 1 ships same day
117 999-0181 Nut 1/4-20 hex jam plain finish $0.99 1 ships same day
120 272-2228 Plate $13.76 1 ships same day
123 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
