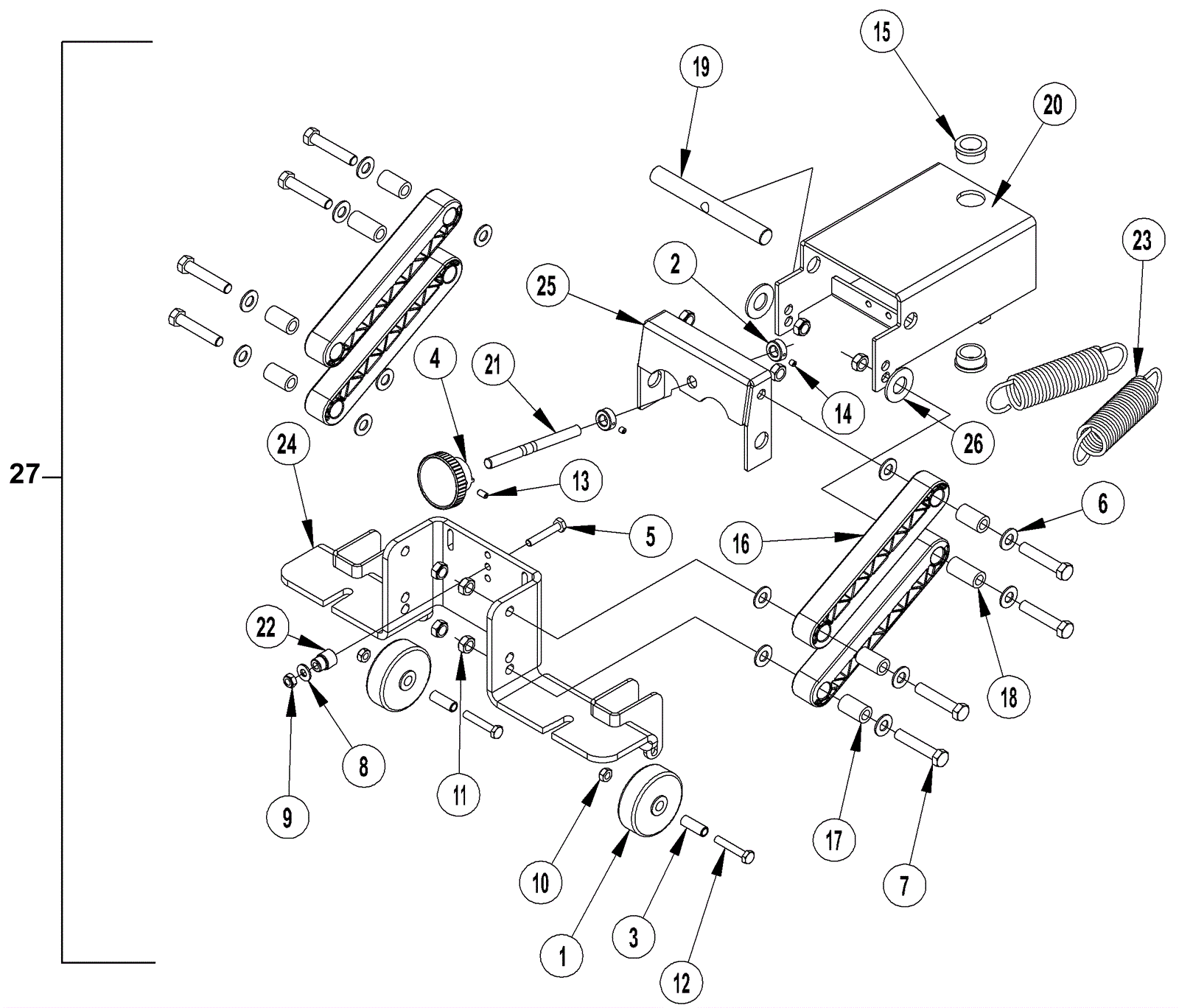

ADHANCER 32C Squeegee Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1a 172-0045 Guide wheel $13.76 2 ships same day
1b 991-3051 Guide wheel $4.95 2 ships same day
2 172-0071 Collar $9.26 2 usually ships 16-41 days
3 272-5366 Bushing $14.91 2 ships same day
4 172-0078 Knob $12.31 1 usually ships 16-41 days
5 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 1 ships same day
6 999-0120 Washer 3/8 SAE flat $0.99 14 ships same day
7 999-0107 Bolt 3/8-16 x 2 hex head grade 5 zinc plated $1.19 8 ships same day
8 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
9 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
10 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
11 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel $1.52 8 ships same day
12 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 2 ships same day
13 999-1121 Screw 10-24 x 3/8 set cup point socket black oxide $0.99 1 ships same day
14 999-0284 Screw 10-24 x 3/16 cup point socket set alloy plain finish $0.99 2 ships same day
15 172-9388 Flanged bearing $13.76 2 usually ships 16-41 days
16 272-8163 Molded linkage arm $12.31 4 ships same day
17 272-9957 Phenolic spacer $12.31 6 usually ships 16-41 days
18 272-8022 Phenolic spacer $12.31 2 ships same day
19 272-2135 Pin $32.69 1 usually ships 16-41 days
20 272-2295 Squeegee weldment $199.52 1 usually ships 1-5 days
21 272-2139 Adjustment rod $55.56 1 usually ships 16-41 days
22 272-2140 Bushing $12.31 1 usually ships 16-41 days
23 272-2141 Extension spring $24.60 2 usually ships 16-41 days
24 272-2296 Squeegee mount weldment $169.11 1 usually ships 16-41 days
25 272-2137 Squeegee leveling bracket $60.06 1 usually ships 16-41 days
26 999-0349 Washer 5/8 SAE flat $0.99 2 ships same day
27 272-2294 Squeegee linkage assembly $681.45 1 (includes 1 thru 26) usually ships 16-41 days
