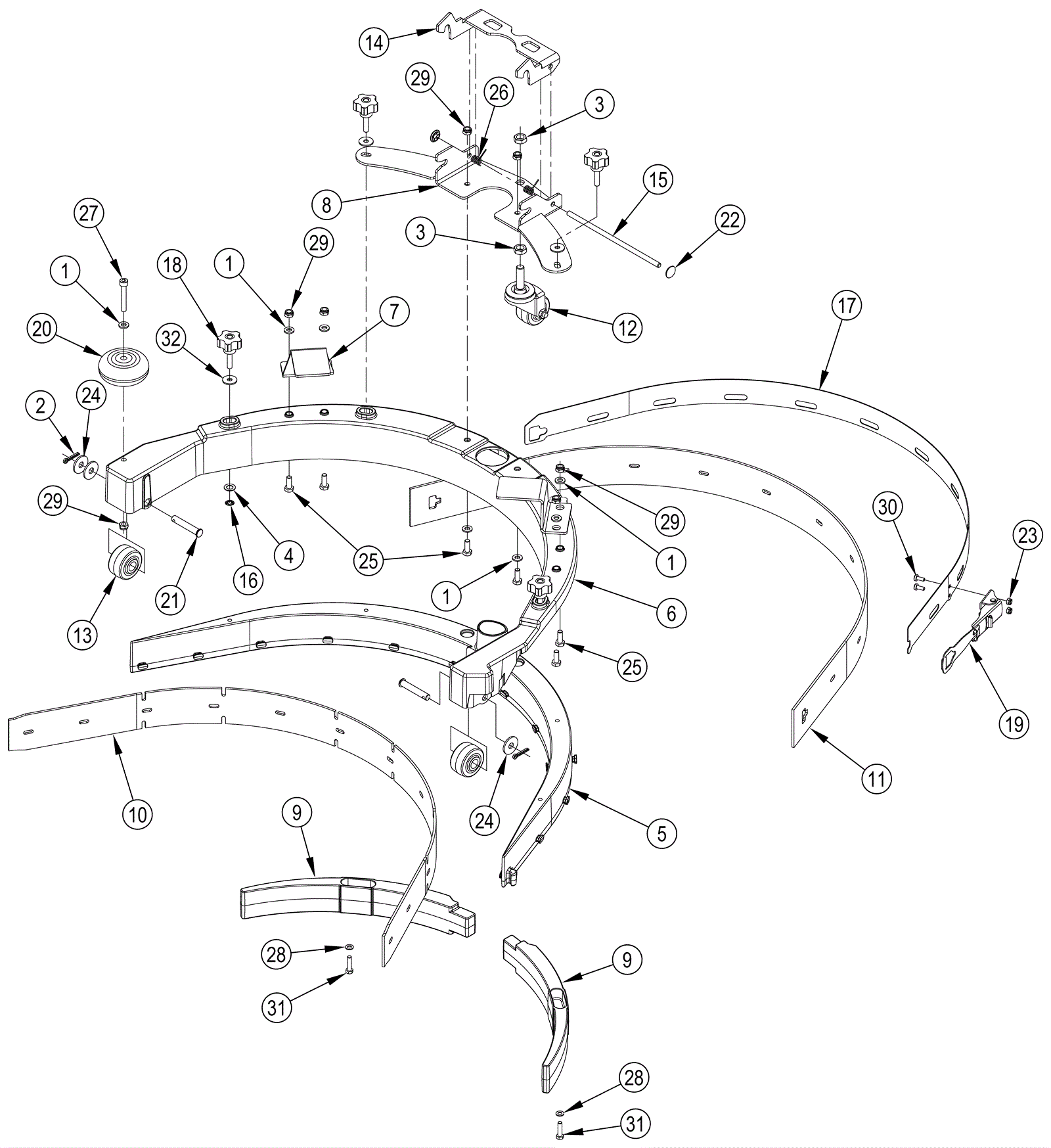

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
272-6639
|
Squeegee assembly |
$1,073.64
|
7 |
(Washer) (Only available in kits 272-6771, 272-6639 and 272-6773) |
usually ships 16-41 days |
2 |
272-6639
|
Squeegee assembly |
$1,073.64
|
2 |
(Pin) (Only available in kits 272-6639 and 272-6773) |
usually ships 16-41 days |
3 |
272-6639
|
Squeegee assembly |
$1,073.64
|
2 |
(Nut) (Only available in kits 272-6639 and 272-6773) |
usually ships 16-41 days |
4 |
272-6639
|
Squeegee assembly |
$1,073.64
|
4 |
(Washer) (Only available in kits 272-6639 and 272-6772) |
usually ships 16-41 days |
5 |
272-6639
|
Squeegee assembly |
$1,073.64
|
1 |
(Squeegee casting) (Only available in kit 272-6639) |
usually ships 16-41 days |
6 |
472-3861
|
SQUEEGEE COVER |
$39.72
|
1 |
|
usually ships 16-41 days |
7 |
272-6639
|
Squeegee assembly |
$1,073.64
|
2 |
(Squeegee lift bracket) (Only available in kit 272-6639) |
usually ships 16-41 days |
8 |
272-6639
|
Squeegee assembly |
$1,073.64
|
1 |
(Squeegee bracket weldment) (Only available in 272-6639 and 272-6775) |
usually ships 16-41 days |
9 |
272-6639
|
Squeegee assembly |
$1,073.64
|
2 |
(Squeegee plate) (Only available in kit 272-6639) |
usually ships 16-41 days |
10a |
272-7357
|
Squeegee blade kit linatex |
$78.05
|
1 |
(includes 11a) |
usually ships 16-41 days |
10b |
272-7356
|
Squeegee blade kit polyurethane |
$149.48
|
1 |
(includes 11b) |
ships same day |
11a |
272-7357
|
Squeegee blade kit linatex |
$78.05
|
1 |
|
usually ships 16-41 days |
11b |
272-7356
|
Squeegee blade kit polyurethane |
$149.48
|
1 |
|
ships same day |
12 |
472-3868
|
CASTER WHEEL |
$34.66
|
1 |
|
usually ships 16-41 days |
13 |
272-6639
|
Squeegee assembly |
$1,073.64
|
2 |
(Roller wheel) (Only available in kit 272-6639 and 272-6773) |
usually ships 16-41 days |
14 |
272-6639
|
Squeegee assembly |
$1,073.64
|
1 |
(Squeegee mount bracket) (Only availble in kit 272-6639 and 272-6775) |
usually ships 16-41 days |
15 |
272-6639
|
Squeegee assembly |
$1,073.64
|
1 |
(Pivot pin) (Only available in kits 272-6639 and 272-6775) |
usually ships 16-41 days |
16 |
272-6639
|
Squeegee assembly |
$1,073.64
|
4 |
(Retaining ring) (Only available in 272-6639 and 272-6772) |
usually ships 16-41 days |
17 |
272-6639
|
Squeegee assembly |
$1,073.64
|
1 |
(Rear squeegee strap) (Only available in in kits 272-6639 and 272-6774) |
usually ships 16-41 days |
18 |
272-6639
|
Squeegee assembly |
$1,073.64
|
4 |
(Knob) (Only available in kits 272-6639 and 272-6772) |
usually ships 16-41 days |
19 |
272-6639
|
Squeegee assembly |
$1,073.64
|
1 |
(Latch) (Only available in kits 272-6639 and 272-6774) |
usually ships 16-41 days |
20 |
272-6639
|
Squeegee assembly |
$1,073.64
|
1 |
(Roller wheel) (Only available in 272-6639 and 272-6773) |
usually ships 16-41 days |
21 |
272-6639
|
Squeegee assembly |
$1,073.64
|
2 |
(Pin) (Only available in kits 272-6639 and 272-6773) |
usually ships 16-41 days |
22 |
272-6639
|
Squeegee assembly |
$1,073.64
|
2 |
(Pin cover) (Only available in kits 272-6639 and 272-6775) |
usually ships 16-41 days |
23 |
272-6639
|
Squeegee assembly |
$1,073.64
|
2 |
(Nut) (Only available in kits 272-6639 and 272-6774) |
usually ships 16-41 days |
24 |
272-6639
|
Squeegee assembly |
$1,073.64
|
3 |
(Washer) (Only availabe in kits 272-6639 and 272-6773) |
usually ships 16-41 days |
25 |
272-6771
|
Squeegee hardware kit |
$13.40
|
6 |
(Screw) (Only available in kits 272-6771 and 272-272-6639) |
usually ships 16-41 days |
26 |
272-6639
|
Squeegee assembly |
$1,073.64
|
2 |
(Spring) (Only available in kits 272-6639 and 272-6775) |
usually ships 16-41 days |
27 |
272-6639
|
Squeegee assembly |
$1,073.64
|
1 |
(Screw) (Only available in kits 272-6639 and 272-6773) |
usually ships 16-41 days |
28 |
272-6771
|
Squeegee hardware kit |
$13.40
|
2 |
(Washer) (Only available in kits 272-6771 and 272-6639) |
usually ships 16-41 days |
29 |
272-6771
|
Squeegee hardware kit |
$13.40
|
7 |
(Nut) (Only available in kits 272-6771, 272-6639 and 272-6773) |
usually ships 16-41 days |
30 |
272-6639
|
Squeegee assembly |
$1,073.64
|
2 |
(Screw) (Only available in kits 272-6639 and 272-6774) |
usually ships 16-41 days |
31 |
272-6771
|
Squeegee hardware kit |
$13.40
|
2 |
(Screw) (Only available in kits 272-6771 and 272-6639) |
usually ships 16-41 days |
32 |
272-5489
|
Washer M6 x 18mm flathead stainless steel |
$11.99
|
4 |
|
usually ships 16-41 days |
KIT1 |
272-7356
|
Squeegee blade kit polyurethane |
$149.48
|
1 |
(includes 10b and 11b) |
ships same day |
KIT2 |
272-7357
|
Squeegee blade kit linatex |
$78.05
|
1 |
(includes 10 and 11) |
usually ships 16-41 days |
KIT3 |
272-6771
|
Squeegee hardware kit |
$13.40
|
1 |
(includes 1, 25, 28-29 and 31) |
usually ships 16-41 days |
KIT4 |
272-6639
|
Squeegee assembly |
$1,073.64
|
1 |
(includes 1-32) |
usually ships 16-41 days |
KIT5 |
272-6772
|
Squeegee knob kit |
$41.84
|
1 |
(includes 4, 16, 18 and 32) |
usually ships 16-41 days |
KIT6 |
272-6773
|
Squeegee wheel kit |
$135.82
|
1 |
(includes 1-3, 12-13, 20-21, 24, 27 and 29) |
ships same day |
KIT7 |
272-6774
|
Squeegee strap kit |
$97.47
|
1 |
(includes 17, 19, 23 and 30) |
usually ships 16-41 days |
KIT8 |
272-6775
|
Squeegee mounting bracket kit |
$63.64
|
1 |
(includes 8, 14-15, 22 and 26) |
usually ships 16-41 days |
