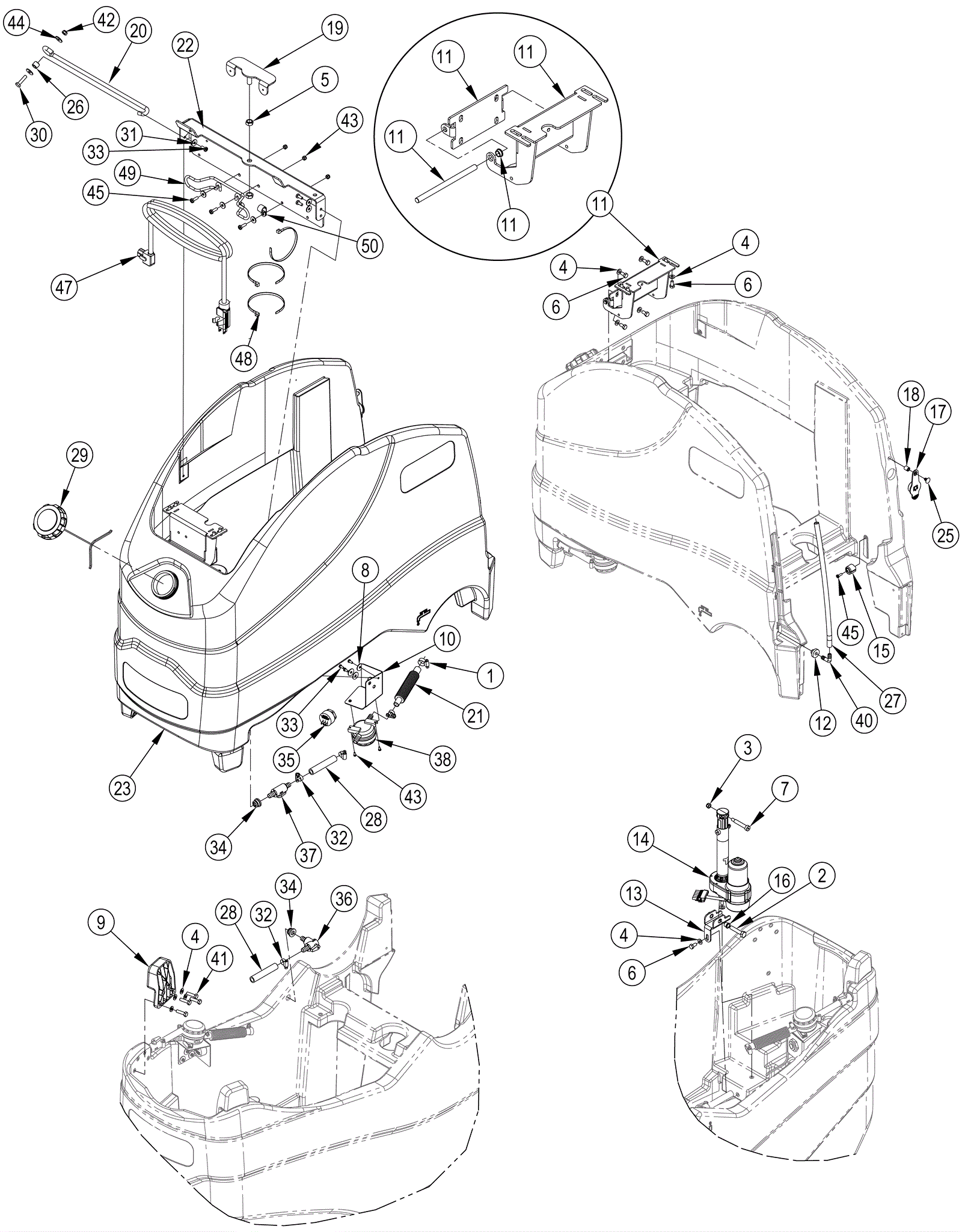

SA40 Solution Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-6765 Solution hose kit $79.45 1 usually ships 16-41 days
2 272-6770 Solution hardware kit $64.23 1 usually ships 1-5 days
3 272-6770 Solution hardware kit $64.23 1 usually ships 1-5 days
4 272-6770 Solution hardware kit $64.23 18 usually ships 1-5 days
5 272-6770 Solution hardware kit $64.23 2 usually ships 1-5 days
6 272-6770 Solution hardware kit $64.23 10 usually ships 1-5 days
7 272-6768 Actuator kit $730.73 1 usually ships 16-41 days
8 272-6770 Solution hardware kit $64.23 3 usually ships 1-5 days
9 272-6769 Tip pad kit $33.24 2 usually ships 16-41 days
10 272-6751 Filter bracket $31.83 1 usually ships 1-5 days
11a N/A Not available Call for price 1 (Only available individually) usually ships 3-26 days
11b 272-6754 Hinge pin $9.02 1 usually ships 1-5 days
11c 272-6755 Hinge weldment $80.86 1 usually ships 1-5 days
11d 272-6756 Hinge bracket $33.24 1 usually ships 1-5 days
11e 272-6757 Flange bearing $9.02 2 usually ships 1-5 days
12 181-0437 Brass barb $10.56 1 usually ships 1-5 days
13 272-6758 Actuator bracket $30.28 1 usually ships 1-5 days
14 272-6768 Actuator kit $730.73 1 usually ships 16-41 days
15 272-6759 Pivot block $9.02 2 usually ships 16-41 days
16 272-6768 Actuator kit $730.73 1 usually ships 16-41 days
17 272-6767 Solution cap kit $17.90 1 usually ships 16-41 days
18 272-6760 M8 brass insert $9.02 1 usually ships 16-41 days
19 272-6761 Adjustment pad $28.46 1 usually ships 1-5 days
20 272-6763 Prop rod $10.56 1 usually ships 1-5 days
21 272-6765 Solution hose kit $79.45 1 usually ships 16-41 days
22 272-6753 Tank support bracket $70.72 1 usually ships 1-5 days
23 472-3901 Solution tank (blue) $1,490.92 1 usually ships 16-41 days
25 272-6767 Solution cap kit $17.90 1 usually ships 16-41 days
26 272-6770 Solution hardware kit $64.23 1 usually ships 1-5 days
27 209-0040 Hose 3/8 x 24 inch $11.99 1 ships same day
28 272-6764 Solution drain kit $36.07 2 usually ships 16-41 days
29 272-9352 Raw cap with tether $61.41 1 usually ships 16-41 days
30 272-6770 Solution hardware kit $64.23 1 usually ships 1-5 days
31 999-9100 Washer M5 flat stainless steel $5.83 6 ships same day
32 272-6764 Solution drain kit $36.07 4 usually ships 16-41 days
33 272-6770 Solution hardware kit $64.23 6 usually ships 1-5 days
34 272-6764 Solution drain kit $36.07 2 usually ships 16-41 days
35 170-9221 Buzzer $76.52 1 usually ships 1-5 days
36 272-6764 Solution drain kit $36.07 1 usually ships 16-41 days
37 272-6765 Solution hose kit $79.45 1 usually ships 16-41 days
38 272-6766 Solution filter kit $34.66 1 usually ships 16-41 days
40 170-6089 90 degree hosebarb $15.07 1 ships same day
41 272-6764 Solution drain kit $36.07 8 usually ships 16-41 days
42 272-6770 Solution hardware kit $64.23 1 usually ships 1-5 days
43 272-6766 Solution filter kit $34.66 2 usually ships 16-41 days
44 272-6770 Solution hardware kit $64.23 2 usually ships 1-5 days
45 272-6770 Solution hardware kit $64.23 5 usually ships 1-5 days
46 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 3 ships same day
47 270-8395 AC cord $67.20 1 usually ships 16-41 days
48 272-0678 Wire tie (OBSOLETE) $7.59 3 usually ships 1-5 days
49 272-0659 On-board charger cord wrap $5.39 1 ships same day
50 272-8416 P clamp $11.99 1 usually ships 16-41 days
KIT1 272-6764 Solution drain kit $36.07 1 usually ships 16-41 days
KIT2 272-6765 Solution hose kit $79.45 1 usually ships 16-41 days
KIT3 272-6766 Solution filter kit $34.66 1 usually ships 16-41 days
KIT4 272-6767 Solution cap kit $17.90 1 usually ships 16-41 days
KIT5 272-6768 Actuator kit $730.73 1 usually ships 16-41 days
KIT6 272-6769 Tip pad kit $33.24 1 usually ships 16-41 days
KIT7 272-6770 Solution hardware kit $64.23 1 usually ships 1-5 days
