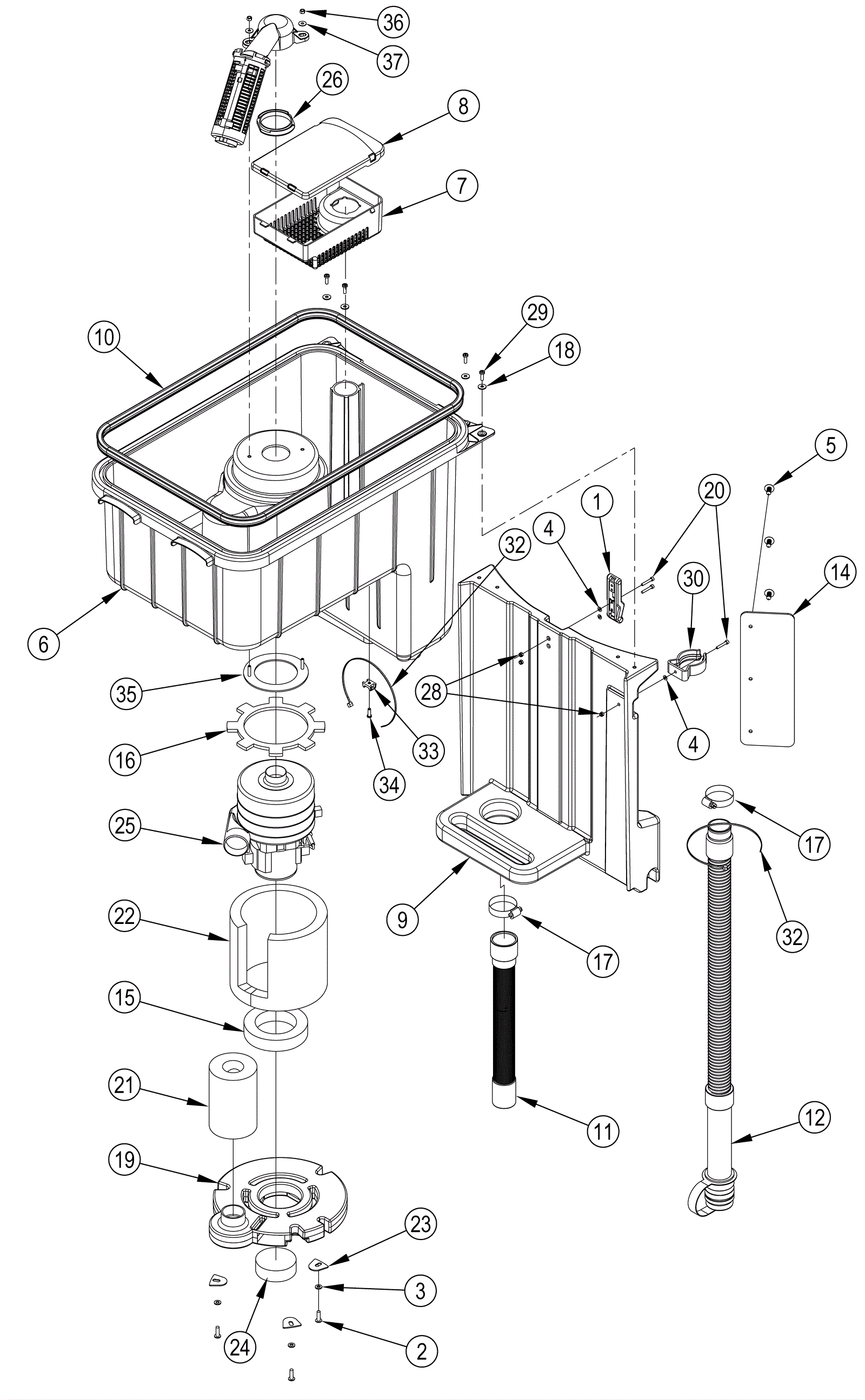

SA40 Recovery Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-6692 Draw latch kit $49.86 1 (Latch) (Only available in kit) usually ships 16-41 days
2 272-6724 Recovery hardware kit $26.92 3 (Screw) (Only available in kit) usually ships 16-41 days
3 272-6724 Recovery hardware kit $26.92 3 (Washer) (Only available in kit) usually ships 16-41 days
4 272-6692 Draw latch kit $49.86 3 (Washer) (Only available in kits 272-6692, 272-6722, 272-6724) usually ships 16-41 days
5 272-6724 Recovery hardware kit $26.92 3 (Rivet) (Only available in kit) usually ships 16-41 days
7 272-6721 Debris cage kit $58.48 1 (Debris cage) (Only available in kit) usually ships 16-41 days
8 272-6721 Debris cage kit $58.48 1 (Debris tray cover) (Only available in kit) usually ships 16-41 days
9 272-6713 Back panel $544.35 1 usually ships 1-5 days
10 272-6714 Recovery tank gasket $30.28 1 ships same day
11 272-6715 Vacuum hose assembly $70.72 1 ships same day
12 272-6716 Drain hose 1 1/2 x 34 inches $56.71 1 ships same day
14 272-6718 Splash guard $26.92 1 usually ships 1-5 days
15 272-6725 Vacuum motor insulation kit $58.48 1 (Vacuum motor support gasket) (Only available in kit) usually ships 16-41 days
16 272-6723 Vacuum motor kit $537.16 1 (Vacuum motor gasket) (Only available in kit) usually ships 16-41 days
17 997-2000 Hose clamp $2.37 2 ships same day
18 272-6720 Float cage kit $64.23 4 (Washer) (Only available in kits 272-6720 and 272-6724) usually ships 16-41 days
19 572-3651 COVER-VACUUM MOTOR PKD $45.77 1 usually ships 16-41 days
20 272-6692 Draw latch kit $49.86 3 (Screw) (Only available in kits 272-6692, 272-6722 and 272-6724) usually ships 16-41 days
21 272-6725 Vacuum motor insulation kit $58.48 1 (Insulation tube) (Only available in kit) usually ships 16-41 days
22 272-6725 Vacuum motor insulation kit $58.48 1 (Panel) (Only available in kit) usually ships 16-41 days
23 272-6724 Recovery hardware kit $26.92 3 (Plate cover) (Only available in kit) usually ships 16-41 days
24 272-6344 Filter $10.56 1 ships same day
25 272-6723 Vacuum motor kit $537.16 1 (Vacuum motor) (Only available in kit) usually ships 16-41 days
26 272-6720 Float cage kit $64.23 1 (Gasket) (Only available in kit) usually ships 16-41 days
27 272-6720 Float cage kit $64.23 1 (Float cage) (Only available in kit) usually ships 16-41 days
28 272-6692 Draw latch kit $49.86 3 (Nut) (Only available in kits 272-6692, 272-6722 and 272-6724) usually ships 16-41 days
29 272-6720 Float cage kit $64.23 4 (Screw) (Only available in kits 272-6720 and 272-6724) usually ships 16-41 days
30 272-6722 Hose clamp kit $9.02 1 (Hose clamp) (Only available in kit) usually ships 16-41 days
32 272-5462 Clamp 4.8 x 30 (white) (OBSOLETE) $7.59 2 usually ships 1-5 days
33 172-4710 Wire tie holder $11.99 1 usually ships 16-41 days
34 272-6719 Screw 5 x 16 $6.05 1 usually ships 1-5 days
36 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 ships same day
37 N/A Not available Call for price 2 usually ships 3-26 days
KIT1 272-6692 Draw latch kit $49.86 1 (includes 1, 4, 20 and 28) usually ships 16-41 days
KIT3 272-6720 Float cage kit $64.23 1 (includes 18, 26-27 and 29) usually ships 16-41 days
KIT4 272-6721 Debris cage kit $58.48 1 (includes 7 and 8) usually ships 16-41 days
KIT5 272-6722 Hose clamp kit $9.02 1 (includes 4, 20, 28 and 30) usually ships 16-41 days
KIT6 272-6723 Vacuum motor kit $537.16 1 (includes 16 and 25) usually ships 16-41 days
KIT7 272-6724 Recovery hardware kit $26.92 1 (includes 2-5, 18, 20, 23 and 28-29) usually ships 16-41 days
KIT8 272-6725 Vacuum motor insulation kit $58.48 1 (includes 15 and 21-22) usually ships 16-41 days
N/S N/A Not available Call for price 1 (Tank) (To replace old style recovery tank order 272-6712) usually ships 3-26 days
