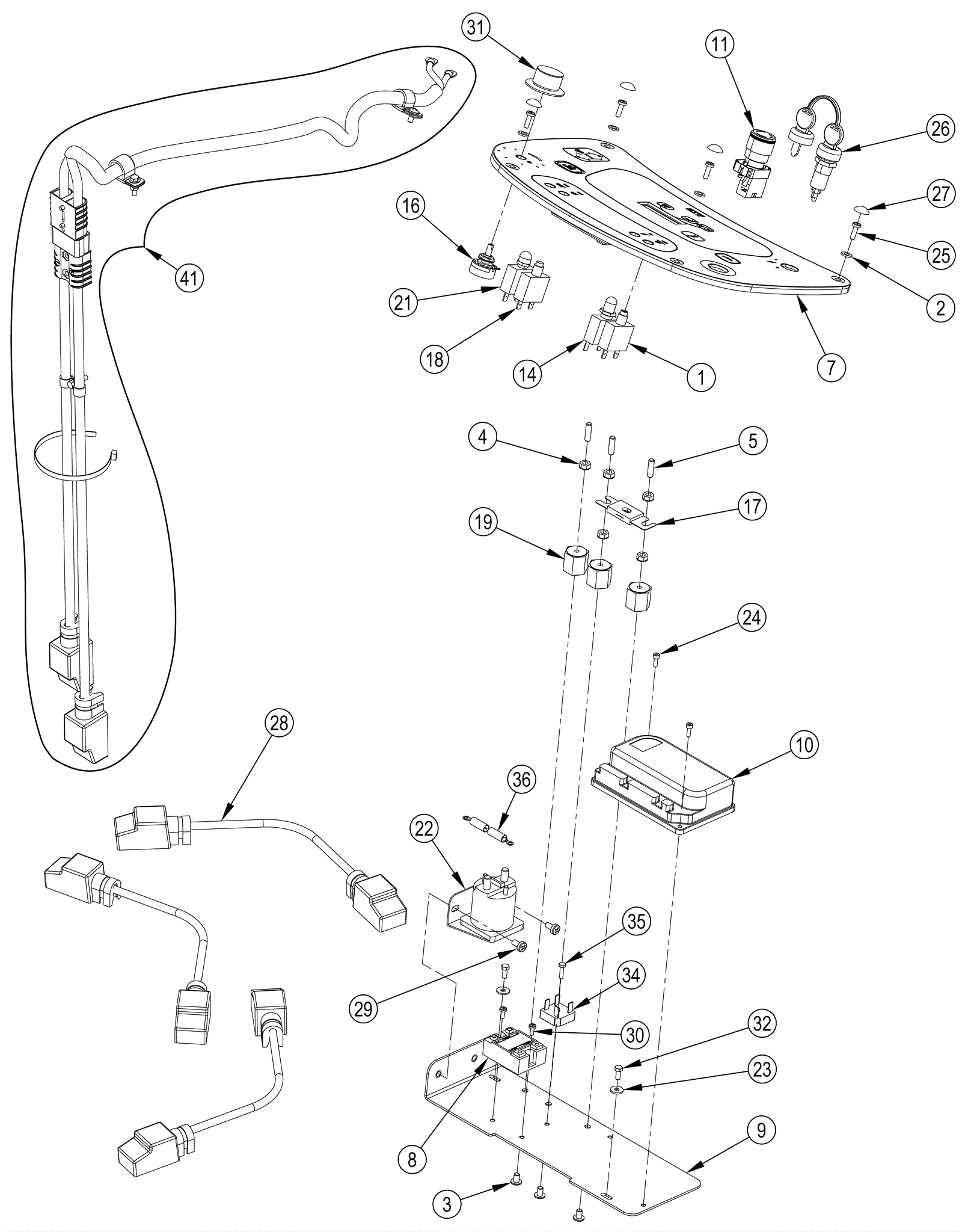

SA40 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-6696 50amp circuit breaker $58.48 1 usually ships 16-41 days
2 272-6697 Electrical hardware kit $39.03 4 usually ships 16-41 days
3 272-6697 Electrical hardware kit $39.03 3 usually ships 16-41 days
4 272-6697 Electrical hardware kit $39.03 5 usually ships 16-41 days
5 272-6697 Electrical hardware kit $39.03 3 usually ships 16-41 days
7 472-3905 USER INTERFACE KIT $1,297.48 1 usually ships 16-41 days
8 272-6701 Solid state relay $276.53 1 usually ships 16-41 days
9 272-6702 Electrical panel $85.24 1 usually ships 1-5 days
10 272-6703 Speed controller $574.78 1 usually ships 16-41 days
11 272-6704 Emergency stop $80.86 1 ships same day
14 991-1628 5amp circuit breaker $13.40 1 usually ships 16-41 days
16 272-6698 Main wiring harness $1,565.99 1 (Potentiometer) (Only available on main harness) ships same day
17 172-8836 150amp fuse $19.15 1 usually ships 16-41 days
18 272-7727 20amp circuit breaker $28.46 1 ships same day
19 172-0103 Electrical mount $13.40 3 usually ships 1-5 days
21 272-6708 25amp circuit breaker $19.45 1 ships same day
22 272-8794 24V contactor $91.00 1 usually ships 16-41 days
23 272-6697 Electrical hardware kit $39.03 2 usually ships 16-41 days
24 272-6697 Electrical hardware kit $39.03 2 usually ships 16-41 days
25 272-6697 Electrical hardware kit $39.03 4 usually ships 16-41 days
26a 172-3785 Key switch with two keys $64.90 1 usually ships 1-5 days
26b 991-1634 Key (pkg of 2) $10.67 1 ships same day
27 272-6697 Electrical hardware kit $39.03 4 usually ships 16-41 days
28 N/A Not available Call for price 3 (Cable) usually ships 3-26 days
29 272-6697 Electrical hardware kit $39.03 2 usually ships 16-41 days
30 272-6697 Electrical hardware kit $39.03 2 usually ships 16-41 days
31 170-1876 Traverse control knob $48.32 1 usually ships 16-41 days
32 272-6697 Electrical hardware kit $39.03 2 usually ships 16-41 days
34 172-4139 35amp rectifier $13.40 1 ships same day
35 272-0814 Screw M14 x 14mm hex head $11.99 1 usually ships 16-41 days
36 172-0236 Diode rectifier assembly $31.83 1 ships same day
41 372-1363 Battery panel harness assembly $238.92 1 usually ships 16-41 days
KIT1 272-6697 Electrical hardware kit $39.03 1 usually ships 16-41 days
KIT2 472-3905 USER INTERFACE KIT $1,297.48 1 usually ships 16-41 days
N/S 272-6710 Wire assembly (white) $9.02 1 usually ships 1-5 days
N/S 272-6711 Wire assembly (black) $9.02 1 usually ships 1-5 days
N/S 272-6698 Main wiring harness $1,565.99 1 ships same day
