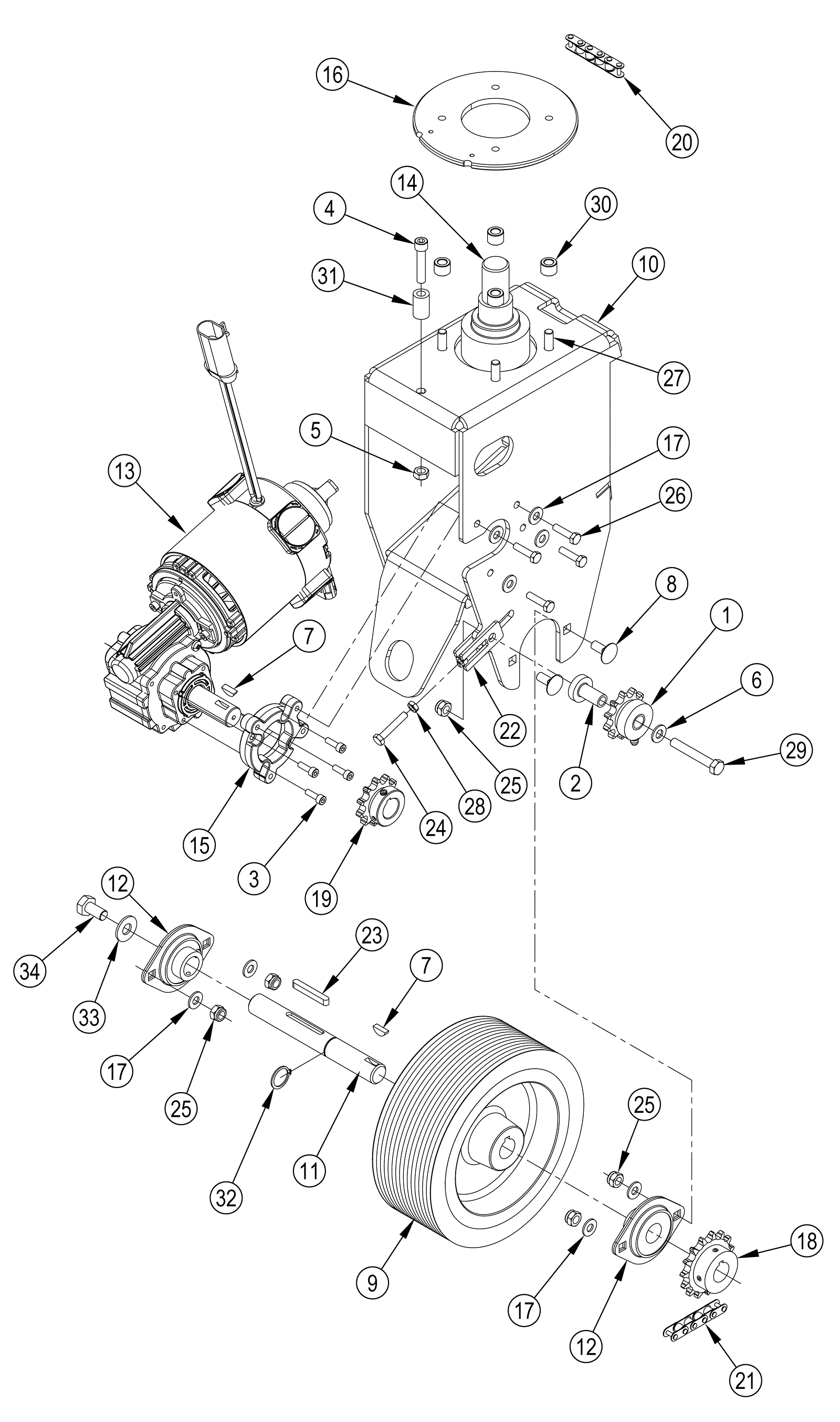

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
272-6676
|
Sprocket and chain kit |
$432.49
|
1 |
(Sprocket) (Only available in kit 272-6676) |
usually ships 1-5 days |
2 |
272-6676
|
Sprocket and chain kit |
$432.49
|
1 |
(Bushing) (Only available in kits 272-6676 and 272-6678) |
usually ships 1-5 days |
3 |
272-6674
|
Drive wheel motor kit |
$2,162.34
|
4 |
(Screw) (Only available in kits 272-6674 and 272-6678) |
usually ships 16-41 days |
4 |
272-6678
|
Drive wheel hardware kit |
$61.41
|
1 |
(Screw) (Only available in kit) |
usually ships 16-41 days |
5 |
272-6678
|
Drive wheel hardware kit |
$61.41
|
1 |
(Nut) (Only available in kit) |
usually ships 16-41 days |
6 |
272-6676
|
Sprocket and chain kit |
$432.49
|
1 |
(Washer) (Only available in kits 272-6676 and 272-6678) |
usually ships 1-5 days |
7 |
272-6674
|
Drive wheel motor kit |
$2,162.34
|
2 |
(Key) (Only available in kits 272-6674, 272-6675 and 272-6676) |
usually ships 16-41 days |
8 |
272-6675
|
Wheel and bearing kit |
$745.81
|
4 |
(Screw) (Only available in kits 272-6675, 272-6678 and 272-6679) |
ships same day |
9 |
272-6675
|
Wheel and bearing kit |
$745.81
|
1 |
(Drive wheel) (Only available in kit) |
ships same day |
10 |
372-1362
|
Drive wheel frame weldment |
$148.06
|
1 |
|
usually ships 16-41 days |
11 |
272-6675
|
Wheel and bearing kit |
$745.81
|
1 |
(Axle) (Only available in kit) |
ships same day |
12 |
272-6675
|
Wheel and bearing kit |
$745.81
|
2 |
(Axle bearing) (Only available in kits 272-6675 and 272-6679) |
ships same day |
13a |
272-6674
|
Drive wheel motor kit |
$2,162.34
|
1 |
(Drive wheel motor) (Only available in kit) |
usually ships 16-41 days |
13b |
272-6669
|
Electromagnetic brake kit |
$387.70
|
1 |
|
usually ships 16-41 days |
14 |
272-6670
|
Spindle weldment |
$186.96
|
1 |
|
usually ships 1-5 days |
15 |
272-6674
|
Drive wheel motor kit |
$2,162.34
|
1 |
(Spacer) (Only available in kit) |
usually ships 16-41 days |
16 |
272-6671
|
Steering plate |
$43.41
|
1 |
|
usually ships 1-5 days |
17 |
272-6674
|
Drive wheel motor kit |
$2,162.34
|
8 |
(Washer) (Only available in kits 272-6674, 272-6675, 272-6678, 272-6679) |
usually ships 16-41 days |
18 |
272-6676
|
Sprocket and chain kit |
$432.49
|
1 |
(15 tooth sprocket) (Only available in kit) |
usually ships 1-5 days |
19 |
272-6676
|
Sprocket and chain kit |
$432.49
|
1 |
(11 tooth sprocket) (Only available in kit) |
usually ships 1-5 days |
20 |
272-6672
|
Roller chain |
$51.82
|
1 |
|
usually ships 16-41 days |
21 |
272-6676
|
Sprocket and chain kit |
$432.49
|
1 |
(Chain roller) (Only available in kit) |
usually ships 1-5 days |
22 |
272-6676
|
Sprocket and chain kit |
$432.49
|
1 |
(Idler) (Only available in kit) |
usually ships 1-5 days |
23 |
272-6675
|
Wheel and bearing kit |
$745.81
|
1 |
(Key) (Only available in kit) |
ships same day |
24 |
272-6676
|
Sprocket and chain kit |
$432.49
|
1 |
(Screw) (Only available in kits 272-6676 and 272-6678) |
usually ships 1-5 days |
25 |
272-6674
|
Drive wheel motor kit |
$2,162.34
|
5 |
(Nut) (Only available in kits 272-6674, 272-6675, 272-6678 and 272-6679) |
usually ships 16-41 days |
26 |
272-6674
|
Drive wheel motor kit |
$2,162.34
|
4 |
(Screw) (Only available in kit 272-6674, 272-6675 and 272-6678) |
usually ships 16-41 days |
27 |
272-6678
|
Drive wheel hardware kit |
$61.41
|
4 |
(Screw) (Only available in kit) |
usually ships 16-41 days |
28 |
272-6676
|
Sprocket and chain kit |
$432.49
|
1 |
(Nut) (Only available in kits 272-6676 and 272-6678) |
usually ships 1-5 days |
29 |
272-6676
|
Sprocket and chain kit |
$432.49
|
1 |
(Screw) (Only available in kits 272-6676 and 272-6678) |
usually ships 1-5 days |
30 |
272-6678
|
Drive wheel hardware kit |
$61.41
|
4 |
(Spacer) (Only available in kits 272-6678) |
usually ships 16-41 days |
31 |
272-6678
|
Drive wheel hardware kit |
$61.41
|
1 |
(Spacer) (Only available in kits 272-6678) |
usually ships 16-41 days |
32 |
172-4754
|
Snap ring |
$11.99
|
1 |
(included in kit 272-6675) |
usually ships 16-41 days |
33 |
272-6673
|
Washer |
$9.02
|
1 |
(included in kit 272-6675) |
usually ships 1-5 days |
34 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
$3.06
|
1 |
(included in kit 272-6675) |
ships same day |
KIT5 |
272-6674
|
Drive wheel motor kit |
$2,162.34
|
1 |
(includes 3, 7, 13, 15, 17 and 25-26) |
usually ships 16-41 days |
KIT6 |
272-6675
|
Wheel and bearing kit |
$745.81
|
1 |
(includes 8-9, 11-12, 17, 23, 25-26 and 32-34) |
ships same day |
KIT7 |
272-6676
|
Sprocket and chain kit |
$432.49
|
1 |
(includes 1-2, 6-7, 18-19, 21-22, 24 and 28-29) |
usually ships 1-5 days |
KIT8 |
272-6678
|
Drive wheel hardware kit |
$61.41
|
1 |
(includes 2-6, 8, 17, 24-31) |
usually ships 16-41 days |
KIT9 |
272-6679
|
Front wheel bearings kit |
$268.66
|
1 |
(includes 8, 12, 17 and 25) |
usually ships 16-41 days |
