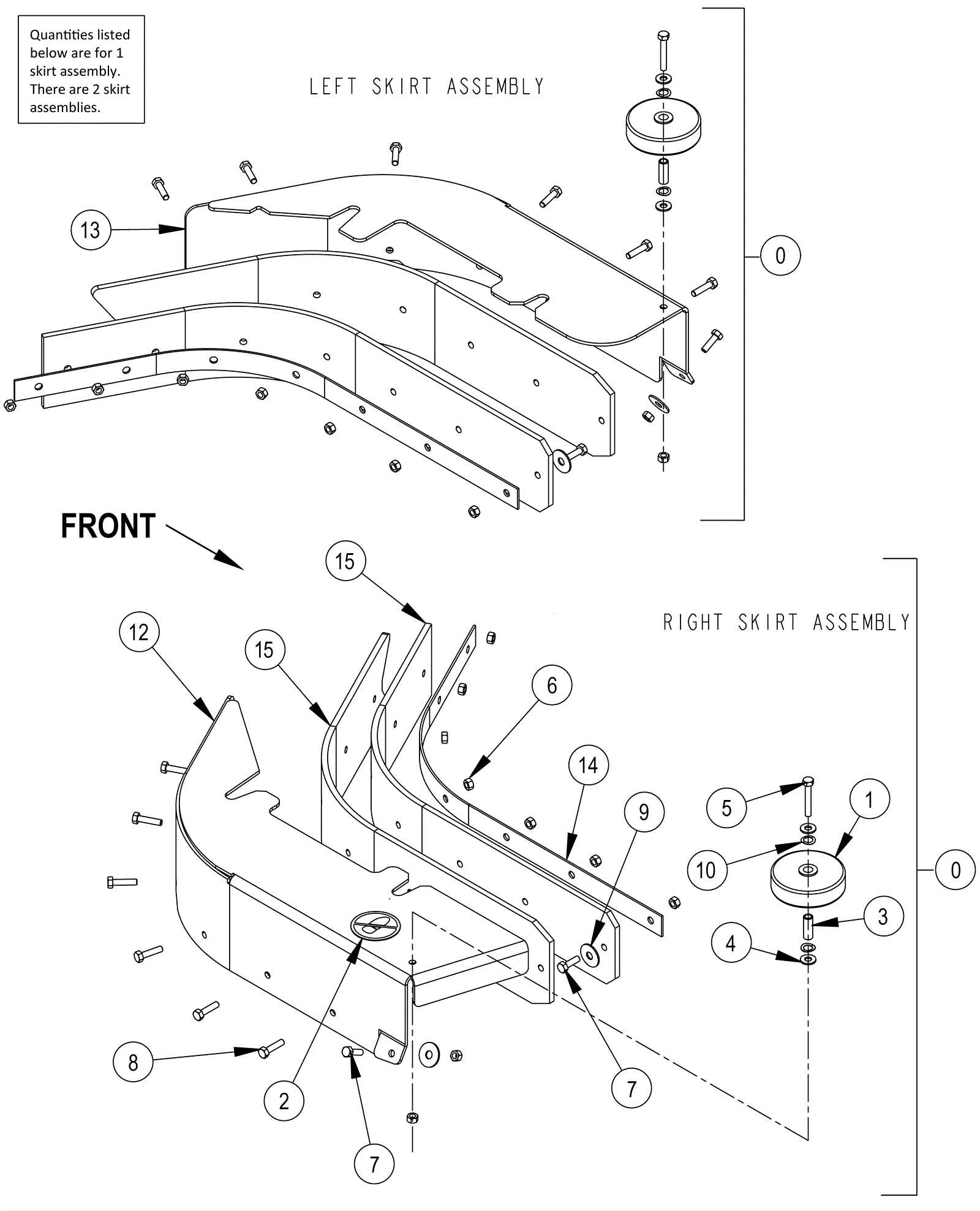

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0a |
272-6084
|
Left hand skirt assembly |
$597.67
|
1 |
|
usually ships 1-5 days |
0b |
272-6083
|
Right hand skirt assembly |
$597.67
|
1 |
|
usually ships 1-5 days |
1a |
172-0083
|
3 inch guide wheel |
$13.76
|
1 |
|
ships same day |
1b |
991-3060
|
Bumper wheel |
$5.77
|
1 |
|
ships same day |
2 |
172-3428
|
No step decal |
$13.76
|
1 |
(Right Skirt Assembly only) |
usually ships 1-5 days |
3 |
172-0095
|
Bushing |
$36.32
|
1 |
|
usually ships 16-41 days |
4 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
5 |
999-1147
|
Bolt M6-1 x 40mm hex head stainless steel |
$0.99
|
1 |
|
ships same day |
6 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
$0.99
|
9 |
|
ships same day |
8 |
999-0518
|
Bolt M6-1 x 25mm hex head full thread zinc |
$0.99
|
6 |
|
ships same day |
9 |
272-1288
|
Washer 21/64-1 x 1/16 flat stainless steel |
$12.31
|
2 |
|
usually ships 1-5 days |
10 |
272-1670
|
Washer 3/8 bowed |
$10.85
|
2 |
|
usually ships 16-41 days |
12 |
272-6096
|
Right hand skirt frame |
$113.42
|
1 |
|
usually ships 1-5 days |
13 |
272-6097
|
Left hand skirt frame |
$111.99
|
1 |
|
usually ships 1-5 days |
14 |
272-6098
|
Blade retainer |
$27.73
|
1 |
|
usually ships 1-5 days |
15a |
272-5685
|
Skirt blade kit 35 inch gum rubber (red) (pkg of 2) |
$261.02
|
1 |
(standard)(includes 991-5122, four skirt blades and front and rear blades) |
usually ships 16-41 days |
15b |
272-6087
|
Disk blade kit |
$551.66
|
1 |
(optional)(includes 991-5122, four skirt blades and front and rear blades) |
usually ships 1-5 days |
15c |
272-8944
|
38 inch skirt blade kit gum rubber |
$183.90
|
1 |
(optional)(These Disk Deck Blade Kits include just the blades for use in the two Skirt Assemblies) |
usually ships 16-41 days |
15d |
272-8942
|
38 inch squeegee blade deck kit gum rubber |
$229.88
|
1 |
(standard)(includes 991-5122, four skirt blades and front and rear blades) |
usually ships 16-41 days |
15e |
993-2696
|
BLADE KIT, TAN GUM |
$123.00
|
1 |
(optional)(includes 991-5122, four skirt blades and front and rear blades) |
usually ships 1-5 days |
15f |
272-8944
|
38 inch skirt blade kit gum rubber |
$183.90
|
1 |
(optional)(These Disk Deck Blade Kits include just the blades for use in the two Skirt Assemblies) |
usually ships 16-41 days |
15g |
993-2694
|
BLADE KIT, TAN GUM |
$121.00
|
1 |
(optional)(These Disk Deck Blade Kits include just the blades for use in the two Skirt Assemblies) |
usually ships 1-5 days |
