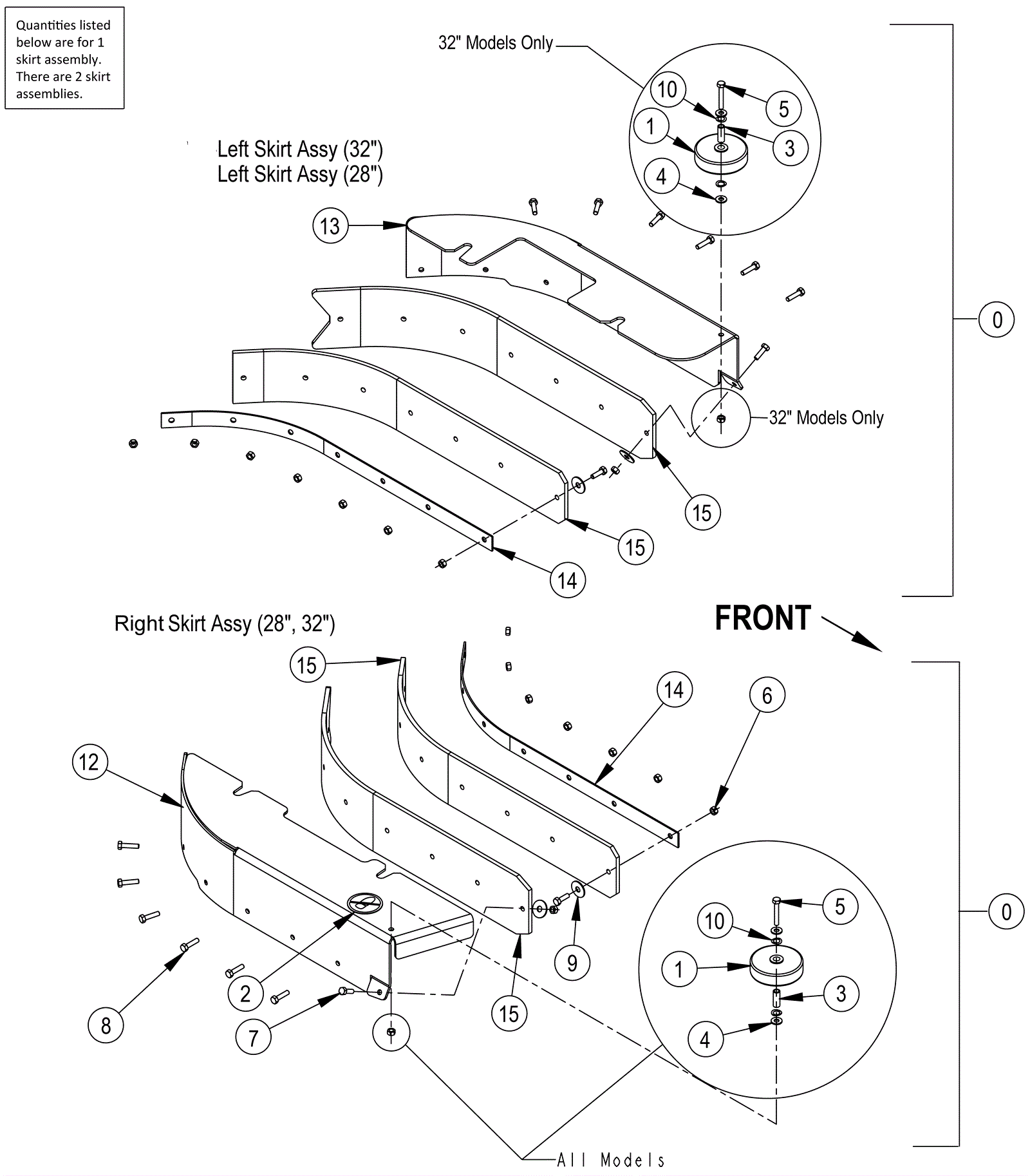

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0a |
272-5434
|
32 inch left skirt assembly |
$521.96
|
1 |
(32 inch) |
usually ships 16-41 days |
0b |
272-5433
|
28 inch left skirt assembly |
$507.58
|
1 |
(28 inch) |
usually ships 1-5 days |
0c |
272-5435
|
Right skirt assembly |
$507.58
|
1 |
(28/32 inch) |
usually ships 1-5 days |
1a |
172-0083
|
3 inch guide wheel |
$13.40
|
1 |
(These items are on the Right Skirt Assembly 0c on all models, but only on the 32 inch Left Skirt Assembly 0a) |
ships same day |
1b |
991-3060
|
Bumper wheel |
$5.77
|
1 |
|
ships same day |
2 |
172-3428
|
No step decal |
$13.40
|
1 |
(Right Skirt Assembly only) |
usually ships 1-5 days |
3 |
172-0095
|
Bushing |
$35.37
|
1 |
(These items are on the Right Skirt Assembly 0c on all models, but only on the 32 inch Left Skirt Assembly 0a) |
usually ships 16-41 days |
4 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
2 |
(These items are on the Right Skirt Assembly 0c on all models, but only on the 32 inch Left Skirt Assembly 0a) |
ships same day |
5 |
999-1147
|
Bolt M6-1 x 40mm hex head stainless steel |
$0.99
|
1 |
(These items are on the Right Skirt Assembly 0c on all models, but only on the 32 inch Left Skirt Assembly 0a) |
ships same day |
6 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
$1.03
|
9 |
(quantity of 8 on 0b) |
ships same day |
8 |
272-2117
|
Nylon tree push-in rivet |
$11.99
|
6 |
|
usually ships 16-41 days |
9 |
272-1288
|
Washer 21/64-1 x 1/16 flat stainless steel |
$11.99
|
2 |
|
usually ships 1-5 days |
10 |
272-1670
|
Washer 3/8 bowed |
$10.56
|
2 |
(These items are on the Right Skirt Assembly 0c on all models, but only on the 32 inch Left Skirt Assembly 0a) |
usually ships 16-41 days |
12 |
272-6094
|
Right hand skirt frame |
$93.14
|
1 |
|
usually ships 16-41 days |
13 |
272-6095
|
Left hand skirt frame |
$93.14
|
1 |
|
usually ships 1-5 days |
14 |
272-1378
|
Blade retainer |
$19.45
|
1 |
|
usually ships 16-41 days |
15a |
272-1444
|
28 inch disk linatex kit |
$216.68
|
1 |
(standard)(includes 991-5122, four skirt blades and front and rear deck blades) |
usually ships 16-41 days |
15b |
272-1442
|
28 inch blade kit gum rubber |
$122.72
|
1 |
(optional)(includes 991-5122, four skirt blades and front and rear deck blades) |
usually ships 16-41 days |
15c |
272-6075
|
Disk deck blade kit 28 inch polyurethane |
$440.37
|
1 |
(optional)(includes 991-5122, four skirt blades and front and rear deck blades) |
usually ships 16-41 days |
15d |
272-5430
|
Scrub deck blade kit gum rubber |
$79.45
|
1 |
(optional)(These Disk Deck Blade Kits include just the blades for use in the two Skirt Assemblies) |
usually ships 16-41 days |
15e |
272-5431
|
Scrub deck blade kit red gum rubber |
$135.82
|
1 |
(optional)(These Disk Deck Blade Kits include just the blades for use in the two Skirt Assemblies) |
usually ships 16-41 days |
15f |
272-1447
|
32 inch disk linatex kit |
$268.66
|
1 |
(standard)(includes 991-5122, four skirt blades and front and rear deck blades) |
usually ships 16-41 days |
15g |
272-1446
|
32 inch blade kit gum rubber |
$139.33
|
1 |
(optional)(includes 991-5122, four skirt blades and front and rear deck blades) |
usually ships 16-41 days |
15h |
272-5430
|
Scrub deck blade kit gum rubber |
$79.45
|
1 |
(optional)(These Disk Deck Blade Kits include just the blades for use in the two Skirt Assemblies) |
usually ships 16-41 days |
15i |
272-5431
|
Scrub deck blade kit red gum rubber |
$135.82
|
1 |
(optional)(These Disk Deck Blade Kits include just the blades for use in the two Skirt Assemblies) |
usually ships 16-41 days |
